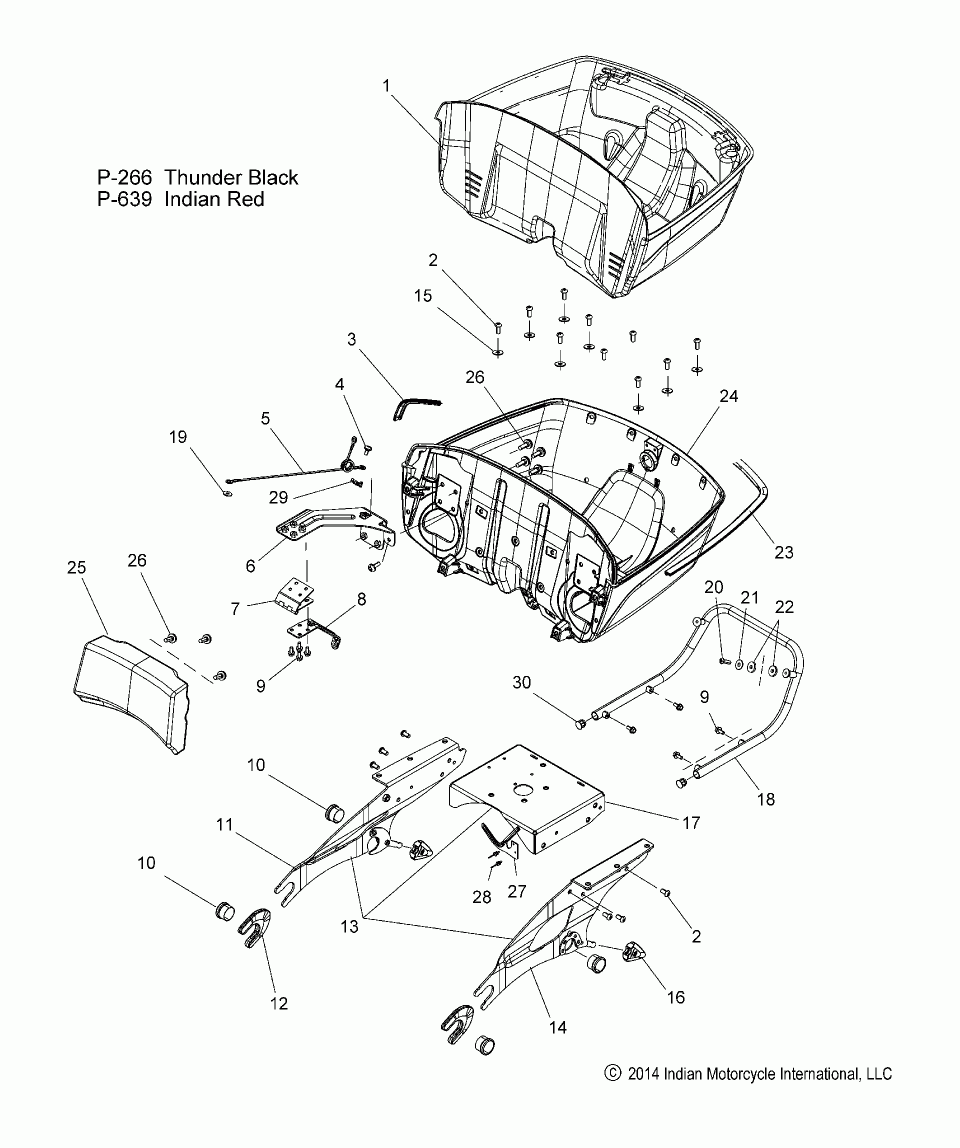

Body, trunk base mounting asm. - n15traaa all options (49indiantrunkbase15r)

Indian N15TCAAA/TRAAA - CHIEFTAIN/ROADMASTER ALL OPTIONS
Indian
#oem кодцена
1
2686426
LINER, TRUNK
2
7520127
SCREW, TXBH
3
5415311
SEAL, TRUNK , SHORT
4
7517276
SCREW, SH
5
7082053
CABLE, TRUNK LID
6
5260396
BRKT., HINGE SUPP., UPPER, LH
6
5260397
BRKT., HINGE SUPP., UPPER, RH
7
2635538
ASM., HINGE, TRUNK
8
5260327
BRKT., HINGE, LOWER, LH
8
5260328
BRKT., HINGE, LOWER, RH
9
7520143
SCREW, HXFLG
10
5451750
BUSHING, SPOOL
11
1020539-156
ASM., TRUNK SIDE PLATE, RH, CHROME
12
5414784
ISOLATOR, FRONT
13
2880736-156
ASM., TRUNK FRAME, CHROME
14
1020538-156
ASM., TRUNK SIDE PLATE, LH, CHROME
15
7556459
Шайба
16
5414785
GRIP, LOCK LEVER
17
5139657-463
SUPPORT, TRUNK CENTER, FLAT BLACK
18
1020997-156
BUMPER, TRUNK, CHROME
19
7556064
Шайба
20
7517782
SCREW, HXBH
21
7556064
Шайба
22
5814206
WASHER, RUBBER
23
5415238
SEAL, TRUNK, LONG
24
5451857-266
BIN, TRUNK
24
5451857-639
BIN, TRUNK
25
2687306-05
ASM., BACKREST, LWR
26
7520171
SCREW, HXBUTTSHLD
27
1021111
ASM., WIRE RETAINER
28
7621235
заклёпка
29
5260463
BRKT., LANYARD, LH
29
5260464
BRKT., LANYARD, RH
30
5259230-156
CAP-TUBING, CHROME
