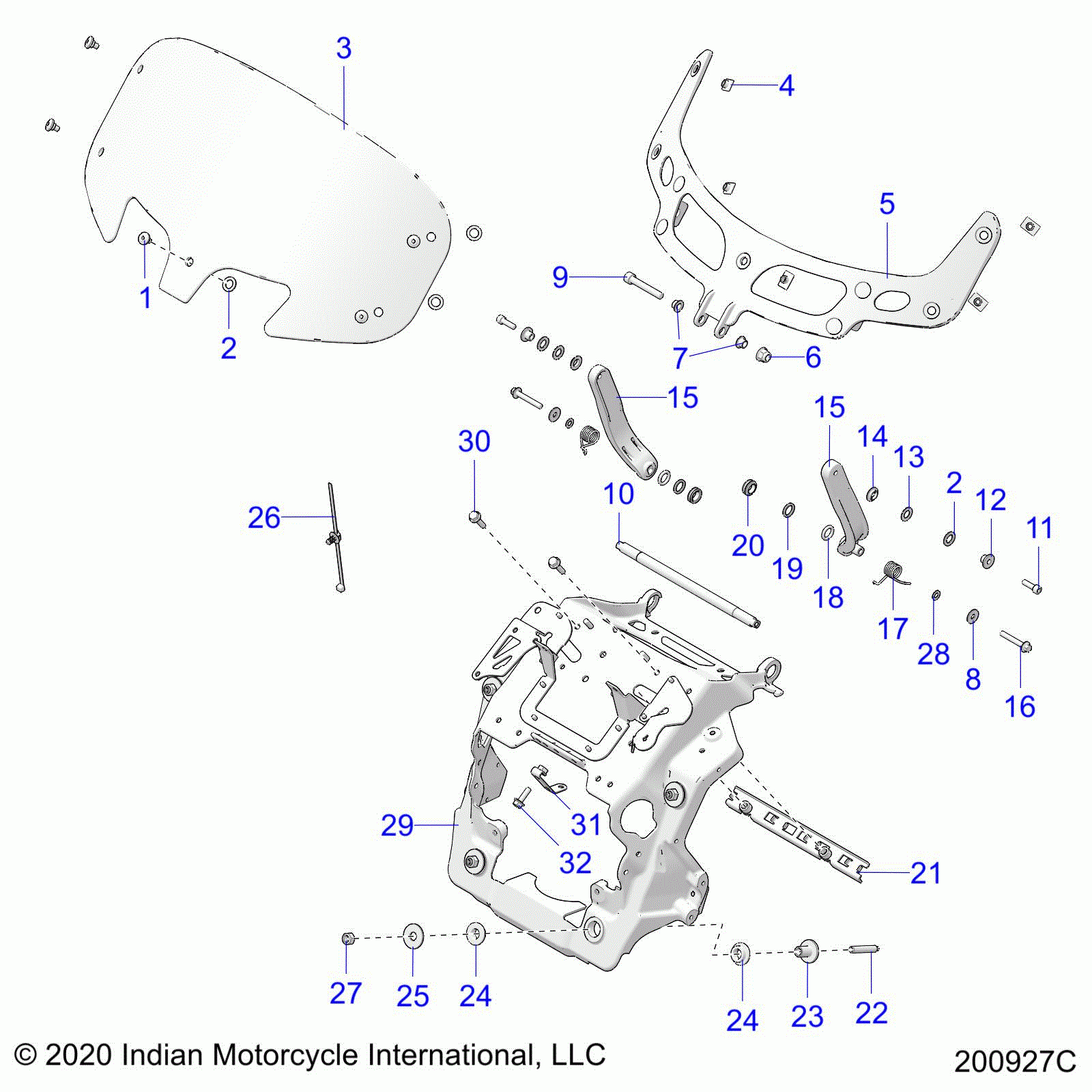

Body, fairing asm, windshield mount - n20tfaaa all options (200927c)

Indian CHIEF VINTAGE ALL OPTIONS (N20TVAAA)
Indian
#oem кодцена
1
7521021
BOLT, SHOULDER, M6X1.0,7MM,9MM
10
5138358
ROD,PIVOT, WS
11
7517305
Винт
12
5140871
BUSHING, FLANGE
13
7556832
Шайба
14
3514853
FLANGE, BEARING
15
5138909-626
LINK, WINDSHIELD
16
7517610
Винт
17
7043355
SPRING, WINDSHIELD, LH
17
7043356
SPRING, WINDSHIELD, RH
18
5411356
Уплотнительное кольцо
19
7556113
Шайба
2
5813188
Шайба
20
3514566
BEARING, SPHERICAL
21
1024261-329
BRACKET, POWER SUPPLY,ECOAT
22
5142297
STUD-M8X1.25X45 8.8 ZPC
23
5136907
BUSHING, FLANGE
24
5416052
ISOLATOR, FAIRING
25
7556260
Шайба
26
7081496
CLIP-ROUTING
27
7547144
Гайка
28
7556121
WASHER-FL,6.0X0.8,0600090(10)
29
1025003-329
ASM., FAIRING BRACKET,HPAUDIO,ECOAT
3
2881124-02
K-WINDSHIELD,SHORT,TOUR,TNTD
30
7518533
SCR-HXFL-M6X1.0X25 8.8 RIE
31
5266316-329
BRKT-FAIRING_HARNESS,ECOAT
32
7518141
SCR-HXFL-M6X1.0X20 8.8 ZPC
4
7547300
T-NUT
5
5138467-626
SUPPORT, WINDSHIELD
6
7547454
Гайка
7
3514565
BEARING, FLANGE
8
7556064
WASHER-6.4X18.0X1.6 ZPB
9
7518013
Винт
