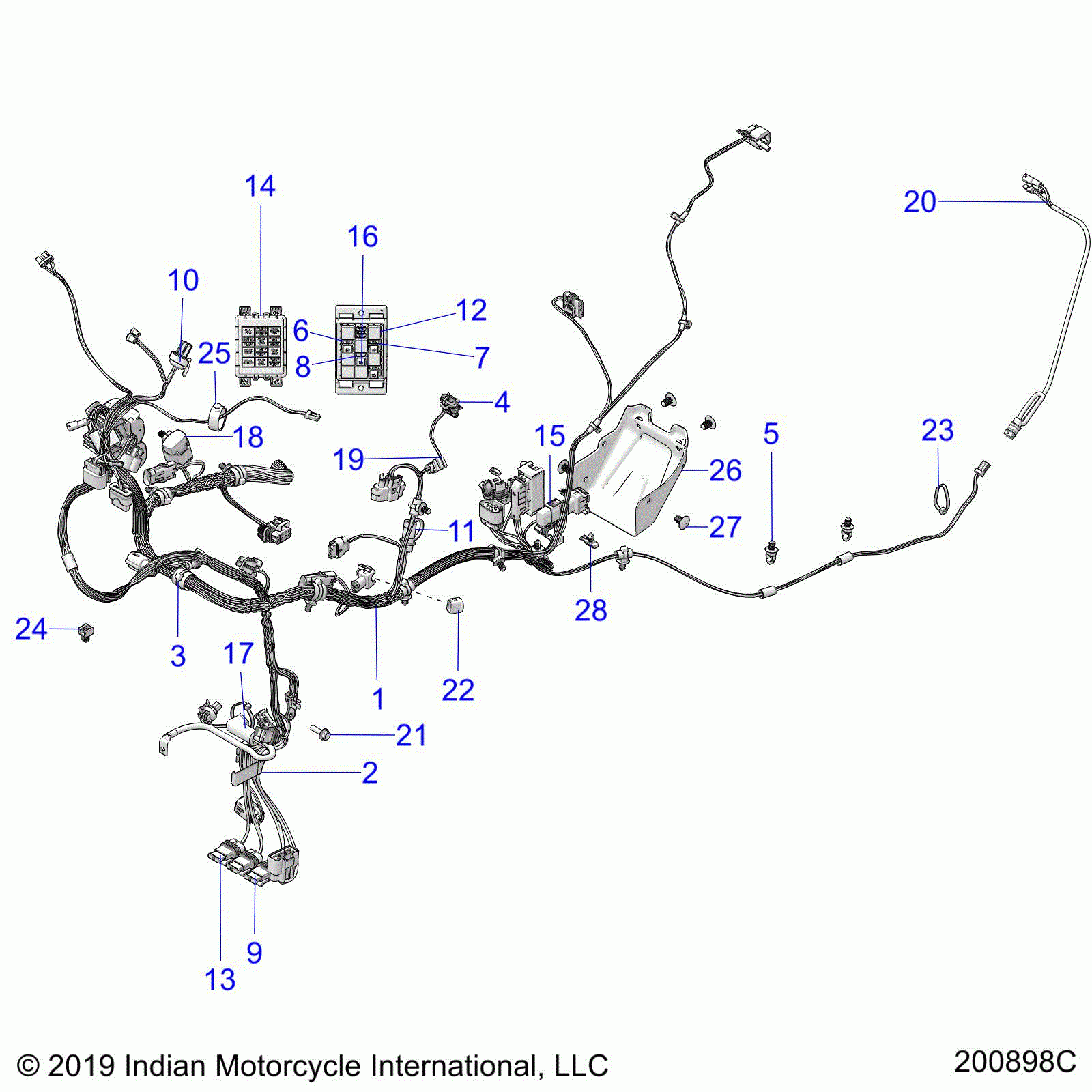

Electrical, wire harness - n20rta22 / rua24 (200898c)

Indian CHIEFTAIN STANDARD TITANIUM SMOKE (N20TCBBB)
Indian
#oem кодцена
1
2414907
HARNESS-CHASSIS,TRK
10
4013048
CONNECTOR-16 PIN,MP100W
11
4015736
COVER-CONNECTOR,SAE
12
4016819
RELAY-SPST,12V,20A,SEALED,HFA
13
4016618
FUSE-ATC,25 AMP
14
4017718
COVER-FUSEBOX,TRK
15
4018135
COVER-TYCO, 4P
16
4011371
BREAKER, CIRCUIT, 10 AMP, SEALED
17
2461122
BOOT-BATTERY CABLE,RED,POS
18
4012170
COVER - DIAGNOSTIC, W/ CLIP
19
7082428
CLIP-EDGE,1-3MM THICKNESS
2
5455666
RETAINER-WIRES,POWER
20
2414908
HARNESS-REAR,TRK
21
7520122
SCREW-HXFL, M6x1.0x20 8.8 ZPB
22
4018461
COVER- BOSCH, 2P,F
23
7080138
PANDUIT STRAP
24
4018311
CLIP-CONNECTOR,GREY
25
5416885
CLAMP-RUBBER,84MM
26
5455667
COVER-WIRING,ABS
27
7670088
CLIP-PLASTIC DART, NYLON
28
7082134
CLIP-CONNECTOR, 6.35 MM HOLE
3
7082003
CABLE TIE-FIR TREE
4
5455270
CLIP-RETAINER,COIL
5
7081496
CLIP-ROUTING
6
2434016
FUSE-IGNITION,10 AMP
7
4011068
FUSE-7.5,MINI BLADE (BROWN)
8
4011652
FUSE, 5 AMP
9
4012421
FUSE-ATC 40 AMP
