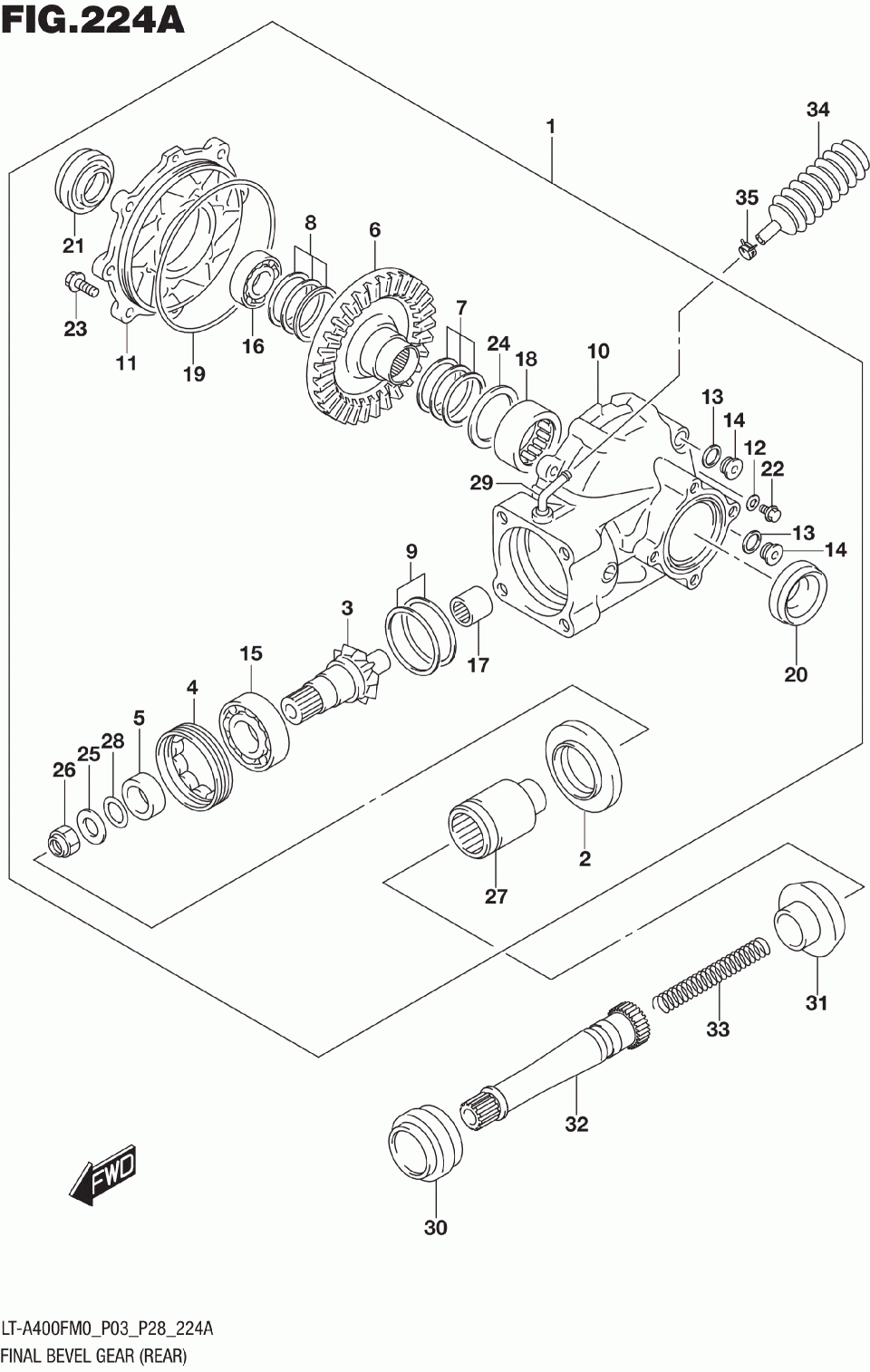

Редуктор задний

Suzuki LT-A400F
Suzuki
#oem кодцена
9
27445-24810
SHIM SET, FINAL DRIVE (T:0.30/0.35/0.40/0.50/0.60)
8
27326-18810
SHIM SET, FINAL DRIVEN GEAR (T:0.30/0.35/0.40/0.50/0.60)
7
27326-09810
SHIM SET, FINAL DRIVEN GEAR (T:0.30/0.35/0.40/0.50/0.60)
6
27321-27HM0
ШЕСТЕРНЯ, ВЕДОМАЯ (38T)
5
27316-38FM0
SPACER, REAR FINAL DRIVEN
4
27312-38F00
STOPPER, FINAL DRIVEN BEARIN
35
09401-08411
Зажим
34
27491-38F00
CASE, BREATHER
33
27192-31G10
SPRING, REAR PROP SHAFT
32
27155-27H10
SHAFT, RR PROP
31
27153-27H20
BOOT, JOINT SHAFT
30
27153-27H00
BOOT, RR PROP SHAFT
3
27311-27HM0
ШЕСТЕРНЯ, ВЕДОМАЯ (38T)
29
09364-08009
Соединение
28
27405-27HM0
O RING, COUPLING
27
27171-27HM0
COUPLING, RR FINAL
26
09159-16003
Гайка
25
09160-16026
WASHER (16X30X3)
24
27407-38FN0
WASHER, FINAL DRIVEN, LH
23
27401-38FN0
BOLT, RR FINAL GR
22
27401-38FM0
BOLT, OIL CHECK
21
09283-42011
OIL SEAL (42X62X7)
20
09283-38009
OIL SEAL (38X54X6)
2
27156-27H00
SEAL, FINAL DRIVEN BRG OIL
19
27405-38FT0
O RING, BEARING CASE, RH
18
27405-38FS0
BEARING, FINAL DRIVEN, LH
17
27405-38FR0
BEARING, FINAL DRIVEN PILOT
16
27405-38FP0
BEARING, FINAL DRIVEN, RH
15
27405-38FN0
BEARING, FINAL DRIVEN GEAR
14
09248-16012
PLUG (16X8)
13
09168-16002
GASKET (16X22X2)
12
09168-06018
GASKET (6.2X13X1.2)
11
27461-38FM0
CASE, RR FINAL DRIVEN, RH
10
27450-27HM0
CASE, RR FINAL GR
1
27410-38F50
CASE ASSY, REAR FINAL
