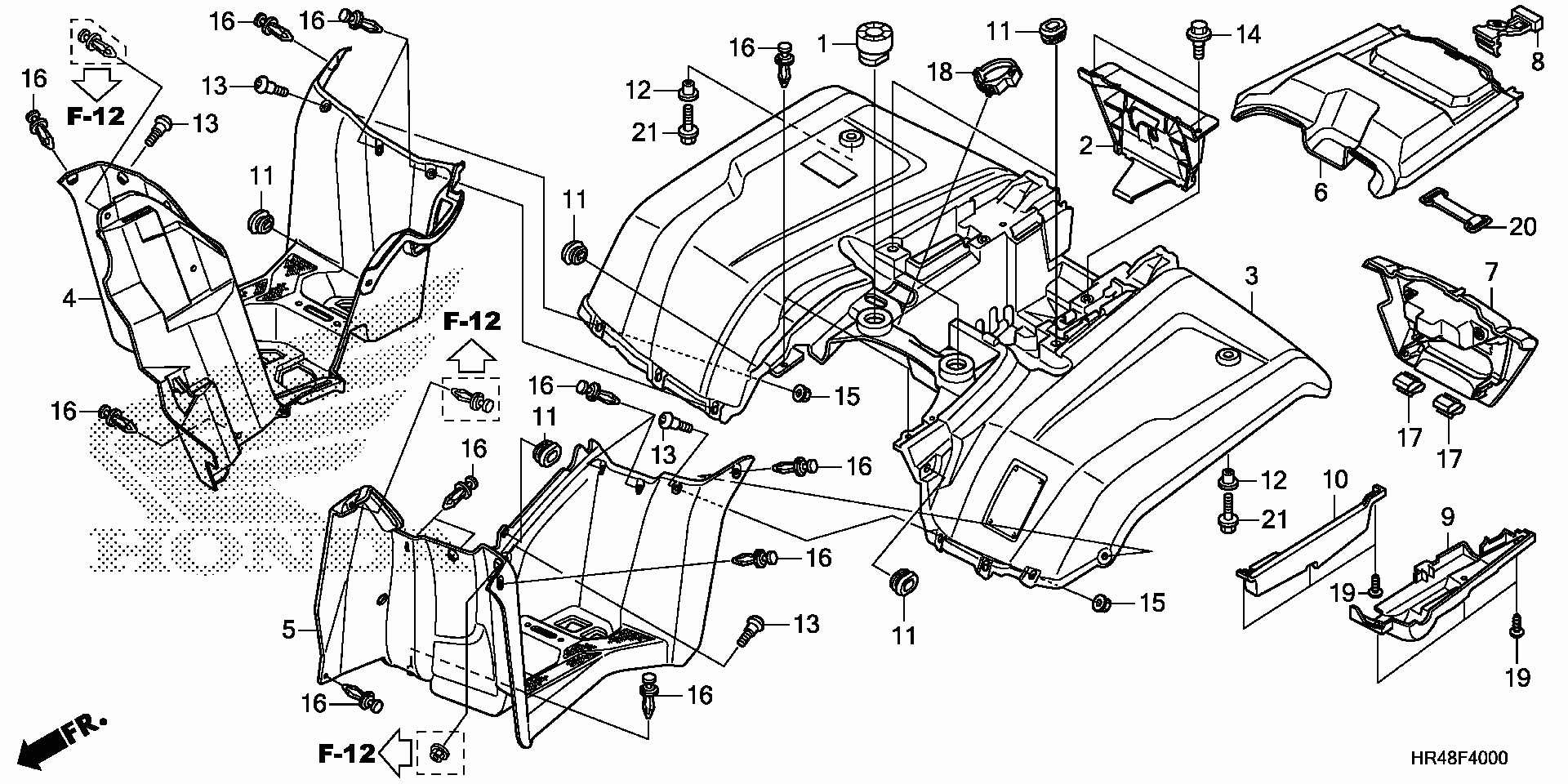

Задний бампер

Honda TRX500FM2
Honda
#oem кодцена
1
77207-HA0-000
CUSHION, SEAT MOUNTING
2
80101-HR3-A20
Держатель
3
80110-HR4-B40ZA
FENDER SET, RR. *YRA05L* (WL) (CLOSE RANGE CAMO)
3
80110-HR4-L50ZB
FENDER SET, RR. *R232* (WL) (PATRIOT RED)
3
80110-HR4-L50ZE
FENDER SET, RR. *PB404R* (WL) (SHALE BLUE R)
3
80110-HR4-L20ZE
FENDER SET, RR. *PB404R* (WL) (SHALE BLUE R)
3
80110-HR4-L20ZB
FENDER SET, RR. *R232* (WL) (PATRIOT RED)
3
80110-HR4-L20ZC
FENDER SET, RR. *G152* (WL) (ADVENTURE GREEN)
3
80110-HR4-B20ZA
FENDER SET, RR. *YRA05L* (WL) (CLOSE RANGE CAMO)
3
80110-HR4-L50ZF
FENDER SET, RR. *YR222R* (WL) (ZEST ORANGE-R)
3
80110-HR4-L20ZG
FENDER SET, RR. *Y225R* (WL) (ACTIVE YELLOW R)
4
80121-HR3-A20ZA
SPLASH GUARD, R. CENTER *NH1* (BLACK)
5
80122-HR3-A20ZA
SPLASH GUARD, L. CENTER *NH1* (BLACK)
6
80210-HR3-A20ZA
COVER, RR. FENDER *NH1* (BLACK)
7
80211-HR3-A20ZA
LID, TOOL BOX *NH1* (BLACK)
8
80214-HM5-850
BAND, TOOL BOX
9
80222-HR3-A20
PROTECTOR, RR. MUFFLER
10
80223-HR3-A20
PROTECTOR, BATTERY (RR)
11
83551-MA6-000
Уплотняющее кольцо
12
84706-GB0-900
COLLAR, NUMBER BRACKET SETTING
13
90102-HN5-670
Винт (6x8)
14
90111-147-000
Болт (6мм)
15
90302-187-000
Гайка (6mm)
16
90653-HC4-900
Зажим
17
90660-SB2-000
CLIP, CORD
18
91556-SK7-003
CLIP, WIRE HARNESS (BLACK)
19
93903-25220
SCREW, TAPPING (5X12)
20
95012-13001
Ремень
21
95701-06016-08
Болт (6x16)
