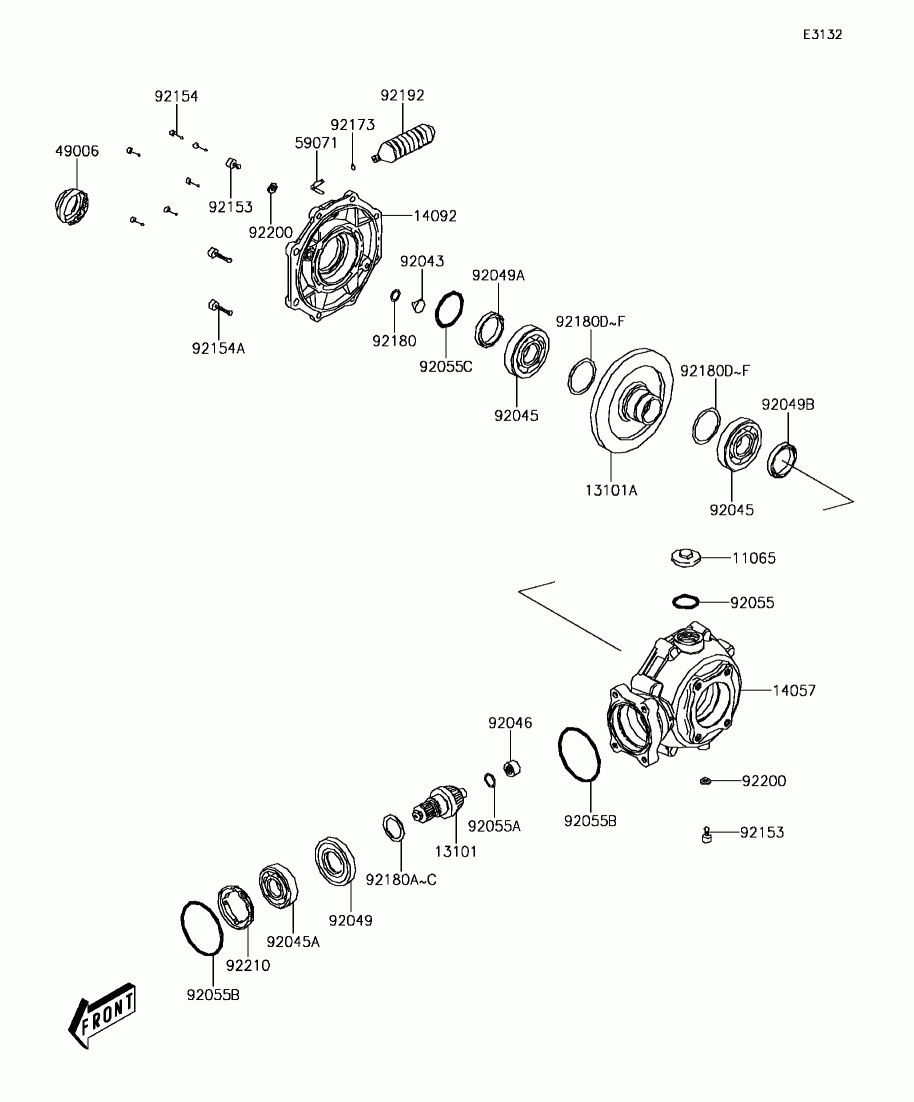

Drive shaft / final gear

Kawasaki BRUTE FORCE 300
Kawasaki
#oem кодцена
11065
11065-Y006
Крышка
13101
13101-Y001
GEAR-ASSY,PINION
13101A
13101-Y002
GEAR-ASSY,RING
14057
14057-Y001
CASE-COMP-GEAR
14092
14092-Y018
COVER,RH
49006
49006-Y007
BOOT,RR,AXLE SHAFT
59071
59071-Y002
JOINT,BREATHER
92043
92043-Y022
PIN,RING GEAR,STOPPER
92045
92045-Y022
BEARING-BALL,6009
92045A
92045-Y029
BEARING-BALL,6206
92046
92046-Y007
BEARING-NEEDLE,14X20X
92049
92049-Y020
SEAL-OIL,35X70X10
92049A
92049-Y021
SEAL-OIL,42X51X7
92049B
92049-Y022
SEAL-OIL,42X62X7
92055
92055-Y005
RING-O,30.8MM
92055A
92055-Y031
СТОПОРНОЕ КОЛЬЦО
92055B
92055-Y032
RING-O,74.4X3.1
92055C
92055-Y033
RING-O,31.7X3.5
92153
92153-Y031
BOLT,FLANGE,6X12
92154
92154-Y137
BOLT,FLANGE,8X30
92154A
92154-Y140
BOLT,FLANGE,10X35
92173
92173-Y023
CLAMP,10.5
92180
92180-Y025
SHIM,T=0.3
92180A
92180-Y026
SHIM,PINION GEAR,A
92180B
92180-Y027
SHIM,PINION GEAR,B
92180C
92180-Y028
SHIM,PINION GEAR,C
92180D
92180-Y029
SHIM,RING GEAR,A
92180E
92180-Y030
SHIM,RING GEAR,B
92180F
92180-Y031
SHIM,RING GEAR,C
92192
92192-Y016
TUBE,BREATHER
92200
92200-Y010
WASHER,8MM
92210
92210-Y052
NUT,LOCK,65MM
