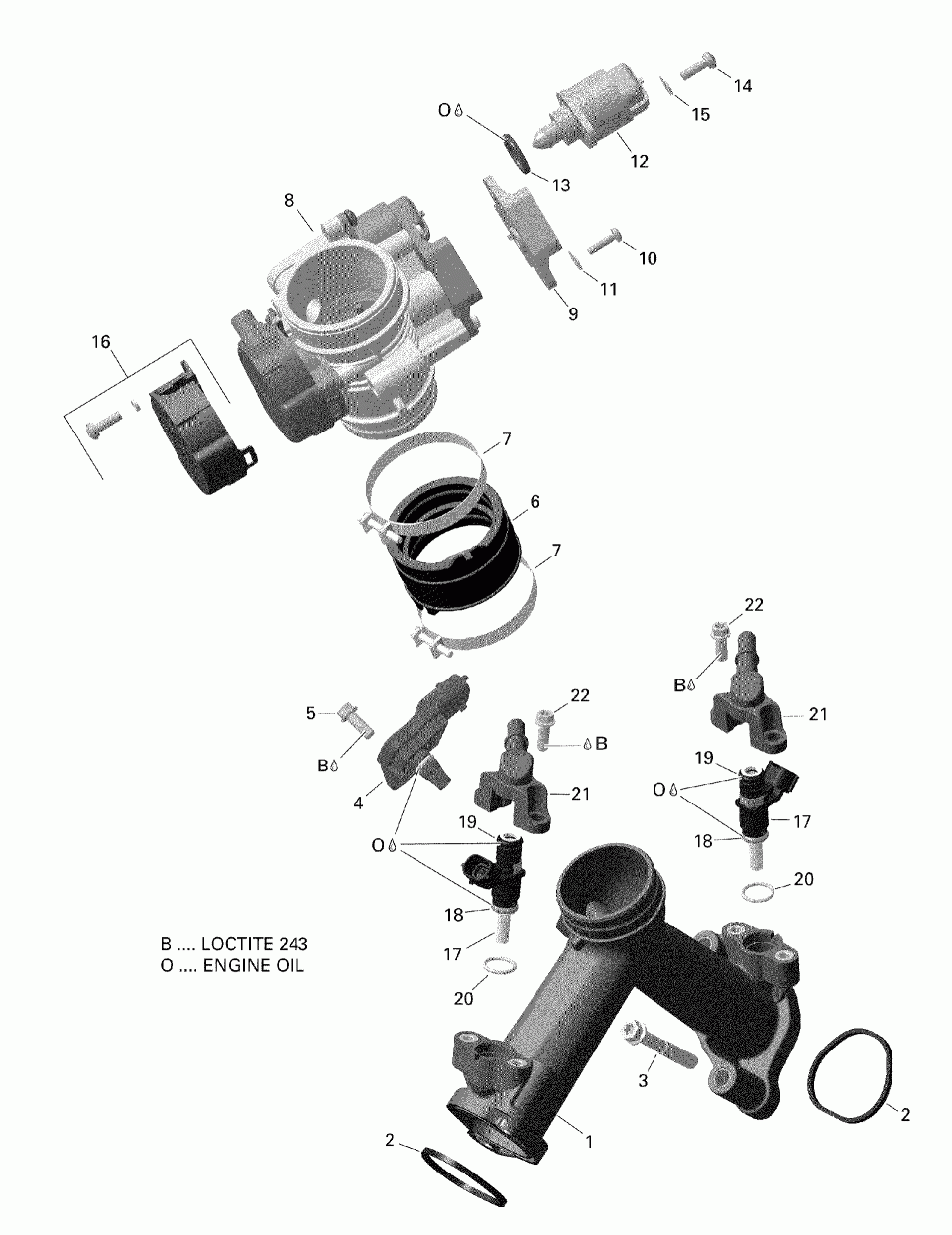

02- air intake manifold and throttle body version 1

Can-Am (Bombardier) Outlander MAX 650 EFI - International - Non European Communities
Can-Am (Bombardier)
#oem кодцена
1
420667581
Air Intake Manifold
2
420630642
Прокладка
6
420267480
Intake Adaptor
7
420251480
Зажим
12
420665941
IDLE BYPASS VALVE
13
420631780
Уплотнительное кольцо
15
420845710
Стопорное кольцо
16
420281540
Cover Kit
18
420431890
Уплотнительное кольцо
19
420631220
Уплотнительное кольцо
20
420631295
Уплотнительное кольцо
21
420874901
Fuel Rail
3
420641213
Flanged Torx Screw M8 X 55
4
707000995
Pressure And Temperature Sensor
5
420641048
Flanged Torx Screw M6 X 16
10
208641660
Phillips Screw M4 X 16
11
234042600
Flat Washer 4 mm, Stainless
14
420440911
Binding Head Screw M5 X 16
22
420641048
Flanged Torx Screw M6 X 16
