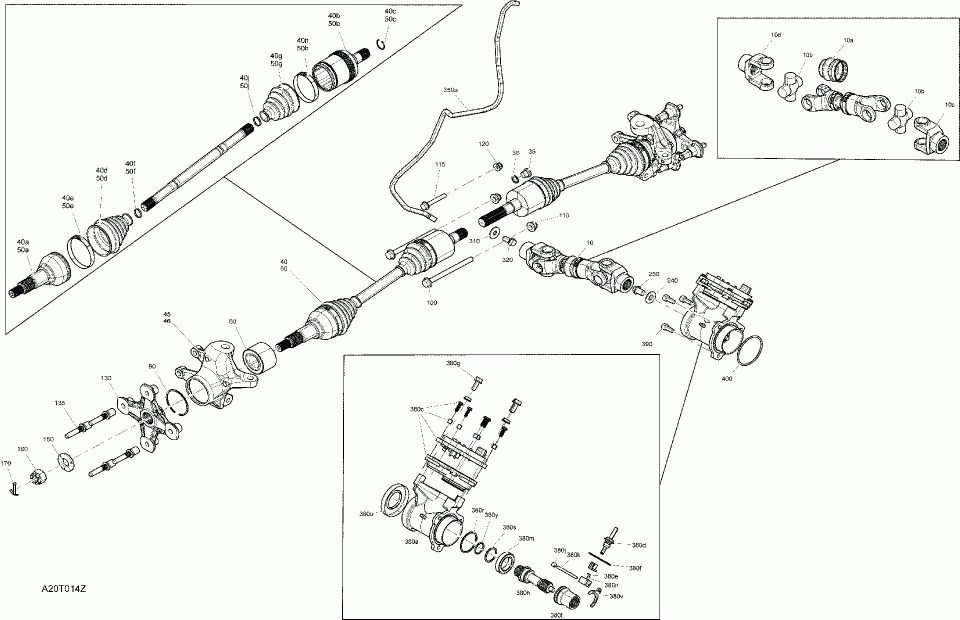

04- drive - front section - common parts

Can-Am (Bombardier) Outlander MAX 6X6 - 450 EFI - DPS - North America
Can-Am (Bombardier)
#oem кодцена
100
230602546
Hex. Flanged Screw M10 X 125.
10a
715900118
Rubber Boot.
10b
715900435
U-Joint Cross Kit.
10c
715900497
Fixed Yoke Joint.
10d
715900498
Yoke Joint.
110
233201436
Flanged Elastic Nut M10.
115
207685544
Hex. Flanged Screw M8 X 55.
120
233281414
Hex. Flanged Elastic Nut M8.
135
250300642
Wheel Stud.
150
250200171
Conical Spring Washer M18.
160
232291413
Hex. Flanged Castellated Nut M18.
170
250400071
Cotter Pin.
240
250200102
Flat Washer M12.
250
250001039
Hex Flanged Screw M12 X 16.
310
250200014
Flat Washer M10.
320
250001046
Hex Flanged Screw M10 X 20 S.GRIP.
35
705500504
Fill Level Plug.
350a
293830193
Polyurethane Hose.
36
705500506
Copper Washer.
380a
705402360
Machined Housing.
380d
705400274
Fork.
380e
293370042
Circlip.
380f
293300117
КОЛЬЦО
380g
250000137
Hex. Flanged Screw M8 X 20, Scotch Grip.
380h
705401509
Idler Shaft Gear.
380j
206580890
Pressure Screw M8 X 8.
380k
250400025
Dowell Pin.
380m
705400249
Ball Bearing.
380n
705402139
Slider.
380r
293370029
Circlip.
380s
293370030
Circlip.
380t
705400389
Coupling Sleeve.
380u
293250348
Oil Seal.
380v
705401553
Shifter Lever Plate.
380y
293300179
КОЛЬЦО
390
250000136
Socket Head Screw M8 X 20, Scotch Grip.
40
705401428
RH Front half shaft. Included 40 to 40e.b.
400
293300091
КОЛЬЦО
40a
715900297
CV Joint.
40b
715900300
RH Plunging CV Joint.
40c
705401349
Circlip Joint.
40d
715900298
CV Boot Kit, Wheel Side.
40e
715900262
Oetiker Clamp, Large.
40f
715900317
Oetiker Clamp, Small.
40g
715900299
CV Boot Kit, Differential Side.
40h
715900318
Oetiker Clamp, Large.
40j
715900317
Oetiker Clamp, Small.
45
705402904
LH Knuckle.
46
705402905
RH Knuckle.
50
705401429
LH Front half shaft. Included 50 to 50e.b.
50a
715900297
CV Joint.
50b
715900301
LH Plunging CV Joint.
50c
705401349
Circlip Joint.
50d
715900298
CV Boot Kit, Wheel Side.
50e
715900262
Oetiker Clamp, Large.
50f
715900317
Oetiker Clamp, Small.
50g
715900299
CV Boot Kit, Differential Side.
50h
715900318
Oetiker Clamp, Large.
50j
715900317
Oetiker Clamp, Small.
60
293350118
Cone Bearing.
80
293370019
Circlip.
