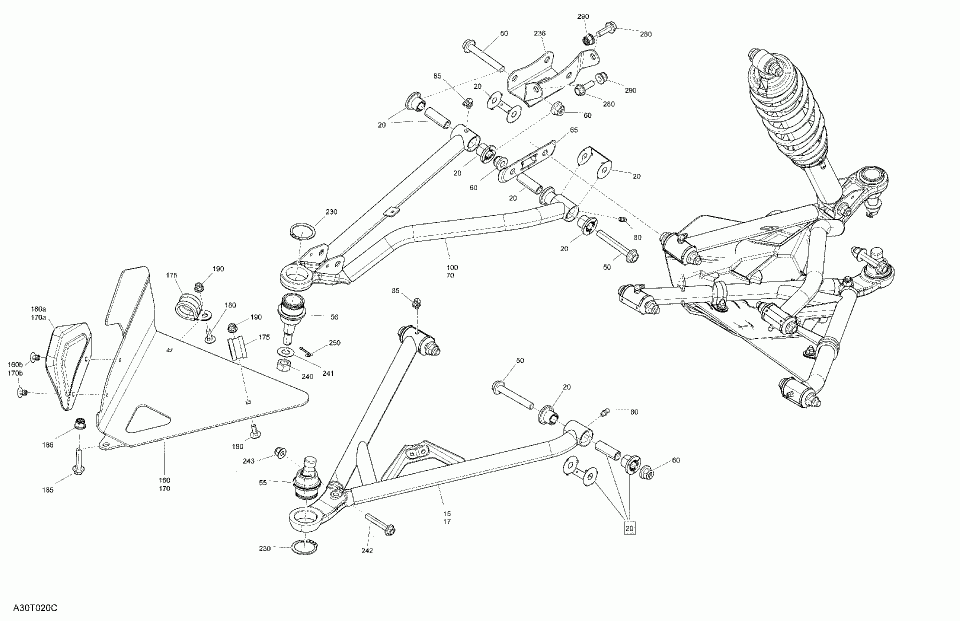

05- suspension - front - mossy oak edition

Can-Am (Bombardier) Outlander 570 EFI - STD_DPS_XT_Mossy Oak Edition - North America
Can-Am (Bombardier)
#oem кодцена
100
706201876
Black, LH Upper Arm.
15
706202869
Black, LH Lower Arm.
160
715001667
A Arm Protector Kit.
160a
706201186
RH Protector.
160b
293150104
Pop Rivet 3/16
17
706202870
Black, RH Lower Arm.
170a
706201185
LH Protector.
170b
293150104
Pop Rivet 3/16
175
709200036
Hose Anchor.
180
207762044
Carriage Bolt M6 X 20.
185
207683544
Hex. Flanged Screw M8 X 35.
186
233281414
Hex. Flanged Elastic Nut M8.
190
233261494
Hex. Elastic Flanged Nut M6.
20
703500875
Bushing Kit.
230
293370035
Circlip.
236
705203247
Upper Front Holder.
240
250100099
Nut M12.
241
250200086
Flat Washer.
242
207606044
Hex. Flange Screw M10 X 60.
243
233201434
Hex. Flanged Elastic Nut M10.
250
211400017
Cotter Pin.
280
207682534
Hex. Flanged Screw M8 X 25.
290
233281414
Hex. Flanged Elastic Nut M8.
50
207607046
Hex. Flanged Screw M10 X 70.
55
706202045
Ball Joint.
56
706202044
Ball Joint.
60
233201436
Flanged Elastic Nut M10.
65
706200998
Front Suspension Cross Plate.
70
706201877
Black, RH Upper Arm.
80
408200700
Grease Fitting.
85
293550056
Grease Fitting 90°.
