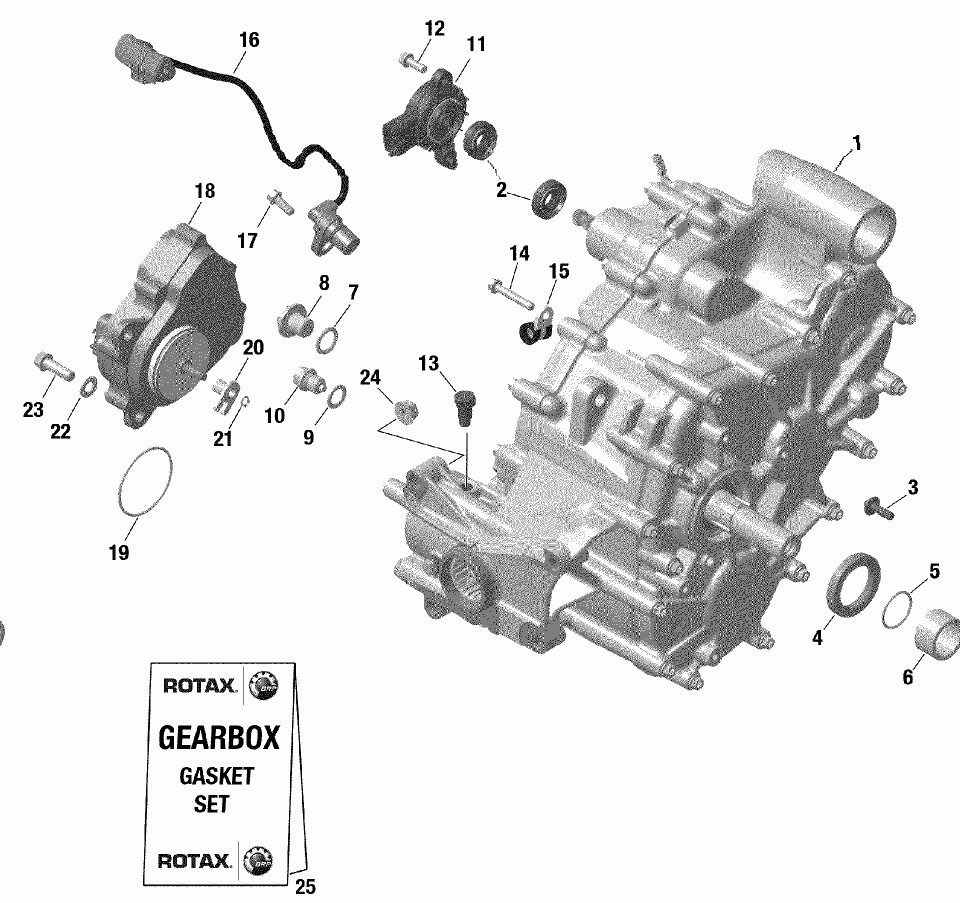

01- rotax - gear box and components 420686654
01- rotax - gear box and components 420686654

01- rotax - gear box and components 420686654

Can-Am (Bombardier) Outlander MAX 6X6 - 650 EFI - DPS - North America

01- rotax - gear box and components 420686654

#

oem код

название

цена

10

Magnetic Drain Plug M12.

Magnetic Drain Plug M12.

11

Angle Rotation Sensor.

Angle Rotation Sensor.

12

Flanged Torx Screw M6 X 16.

Flanged Torx Screw M6 X 16.

13

Plug Screw M10X10.

Plug Screw M10X10.

14

Flanged Torx Screw M6 X 35.

Flanged Torx Screw M6 X 35.

15

Cable Clamp.

Cable Clamp.

16

Speed Sensor.

Speed Sensor.

17

Flanged Torx Screw M6 X 16.

Flanged Torx Screw M6 X 16.

19

КОЛЬЦО

КОЛЬЦО

2

Oil Seal.

Oil Seal.

20

Shifting Fork.

Shifting Fork.

21

Circlip.

Circlip.

22

Flat Washer 8.4 mm.

Flat Washer 8.4 mm.

23

Flanged Torx Screw M8 X 25.

Flanged Torx Screw M8 X 25.

24

Hex. Nut M8.

Hex. Nut M8.

25

Gasket Set.

Gasket Set.

3

Distance Screw M6.

Distance Screw M6.

4

Oil Seal.

Oil Seal.

5

КОЛЬЦО

КОЛЬЦО

6

Distance Ring.

Distance Ring.

7

КОЛЬЦО

КОЛЬЦО

8

Plug Screw M14 X 1.5.

Plug Screw M14 X 1.5.

9

Copper Washer.

Copper Washer.
