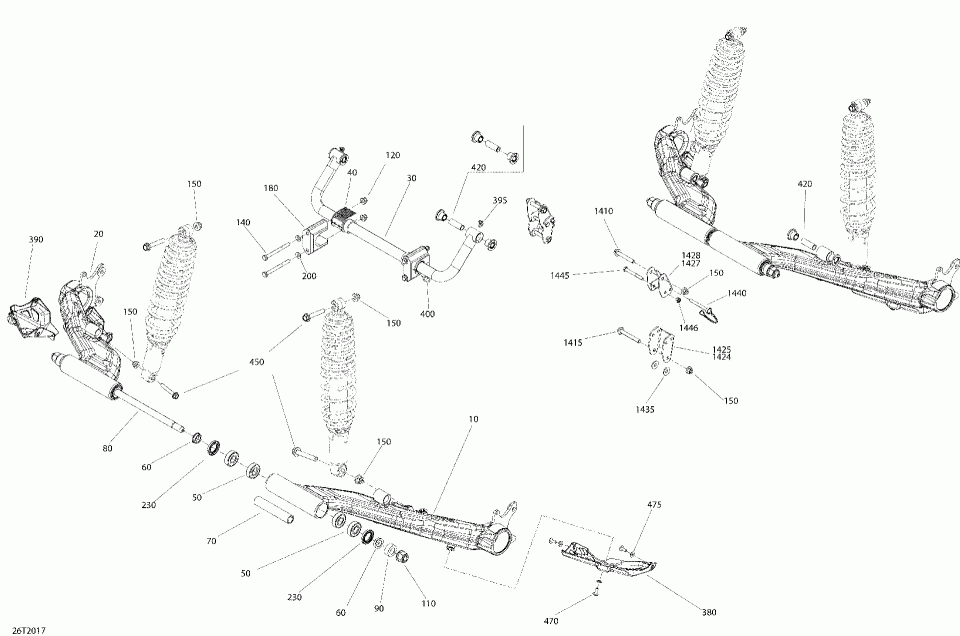

05- suspension - rear

Can-Am (Bombardier) Outlander MAX 6X6 - 650 EFI - DPS - North America
Can-Am (Bombardier)
#oem кодцена
10
706003041
LH Swing Arm.
110
233211466
Hex. Flanged Elastic Nut M16.
120
233281434
Hex. Flanged Elastic Nut M8.
140
250001035
Hex,. Screw M8 X 85.
1410
207606536
Hex. Flanged Screw M10 X 65.
1415
250000520
Hex. Screw M10 X 70.
1424
706001765
Linkage, Outer Part RH.
1425
706001600
Linkage, Outer Part Left.
1427
706001766
Linkage, Inner Part RH.
1428
706001601
Linkage, Inner Part.
1435
505073634
Washer.
1440
706001602
Pin Onto The Shaft.
1445
207086544
Hex. Screw M8 x 65.
1446
232581414
Hex. Elastic Stop Nut M8.
150
233201436
Hex. Flanged Elastic Nut M10.
180
706001099
Bushing Holder.
20
706003042
RH Swing Arm.
200
234081430
Flat Washer M8.
230
293200144
Seal.
30
706003050
Swaybar.
380
706003052
LH Protector.
390
706003053
RH Protector.
395
293550056
Grease Fitting 90°.
40
706003130
Bushing.
400
250000315
Grease Fitting.
420
703500875
Bushing Kit.
450
207606046
Hex. Flanged Screw M10 X 60.
470
250000534
Tork Screw M6 X 16.
475
250200039
Flat Washer.
50
706003749
Ball Bearing.
60
706001282
Spacer.
70
706002259
Spacer.
80
706001664
Axial Pivot M16.
90
250200112
Flat Washer M17.
