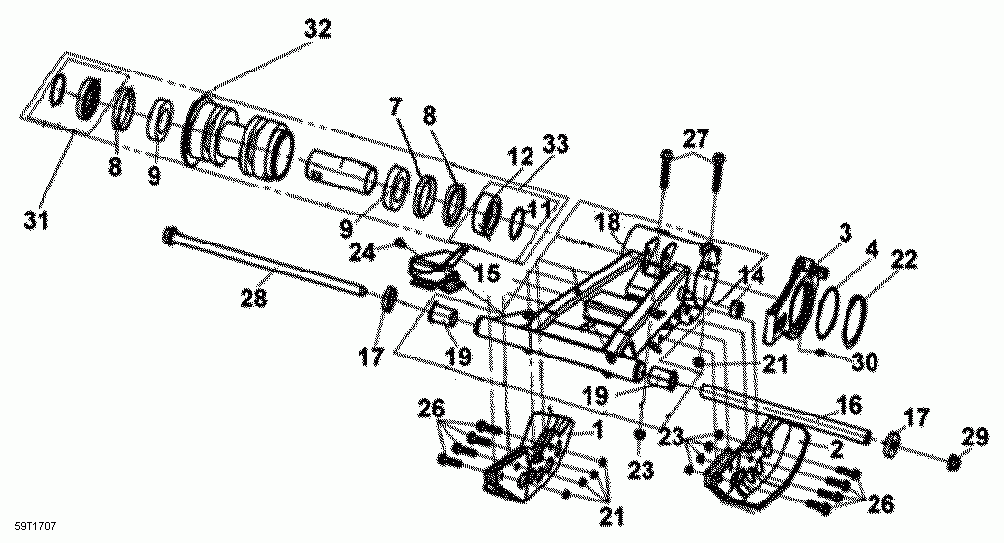

08- rear swing arm north america

Can-Am (Bombardier) DS 250

08- rear swing arm north america

#

oem код

название

цена

1

RH Skid Plate.

RH Skid Plate.

14

Locking Collar.

Locking Collar.

15

Chain Guide.

Chain Guide.

16

Pivot Spacer.

Pivot Spacer.

17

Pivot Dust Seal.

Pivot Dust Seal.

18

Swing Arm.

Swing Arm.

19

Pivot.

Pivot.

2

LH Skid Plate.

LH Skid Plate.

21

Flanged Nylon Nut 10 mm.

Flanged Nylon Nut 10 mm.

22

Circlip.

Circlip.

23

Flanged Nut 10 mm.

Flanged Nut 10 mm.

24

Flanged Bolt M6 X 12.

Flanged Bolt M6 X 12.

26

Flanged Bolt M8 X 30.

Flanged Bolt M8 X 30.

27

Flanged Bolt M10 X 65.

Flanged Bolt M10 X 65.

28

Pivot Bolt.

Pivot Bolt.

29

Self Lock Nut 14 mm.

Self Lock Nut 14 mm.

3

Rear Brake Caliper Bracket.

Rear Brake Caliper Bracket.

30

Washer 8 mm.

Washer 8 mm.

4

O Ring.

O Ring.

7

Steel Collar.

Steel Collar.

8

Oil Seal.

Oil Seal.

9

Ball Bearing.

Ball Bearing.
