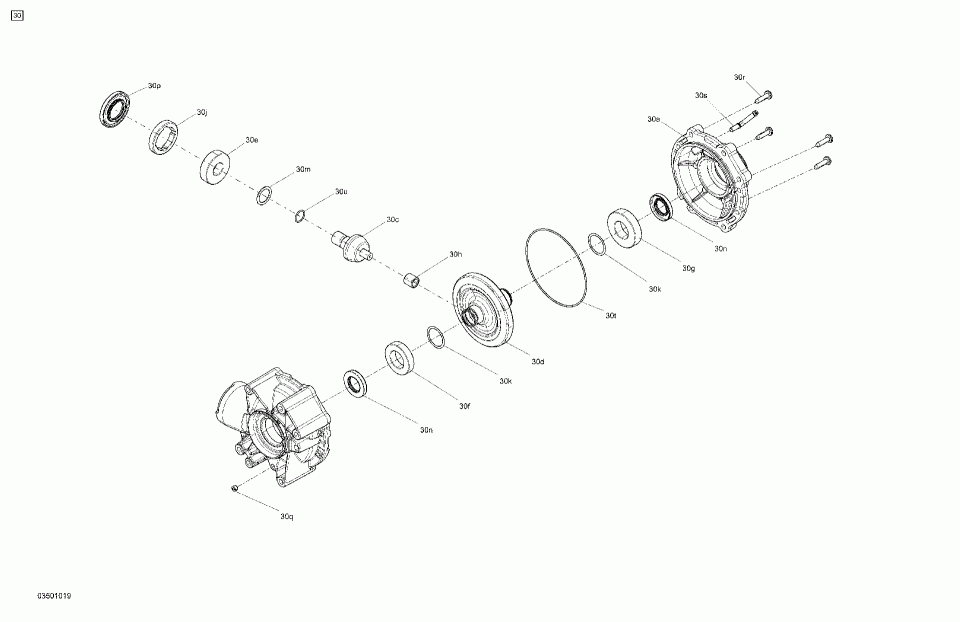

04- drive - rear section - differential parts

Can-Am (Bombardier) Outlander 570 EFI - XMR - International
Can-Am (Bombardier)
#oem кодцена
30
703501019
Final Drive Unit. Includes 30 to 30u.
30a
705502734
Rear Cover.
30c
705502053
Pinion 10 Teeth.
30d
705502682
Gear 36 Teeth.
30e
705502736
Ball Bearing.
30f
705502737
Ball Bearing.
30g
705502738
Ball Bearing.
30h
705502058
Needle Bearing.
30j
705502059
Nut.
30k
705502060
Differential Shim 0.02 mm.
30m
705502061
Pinion Gear Shim 1.67 mm.
30n
705501556
Oil Seal.
30p
705502062
Oil Seal.
30q
705501724
Plug Drain.
30r
705502063
Screw.
30s
705501584
Breather Tube.
30t
705502064
Seal.
30u
705502065
КОЛЬЦО
30v
250001044
Screw-Hex.Flange M10 X 16 S.GRIP. Not Shown.
30w
250200014
Flat Washer M10. Not Shown.
