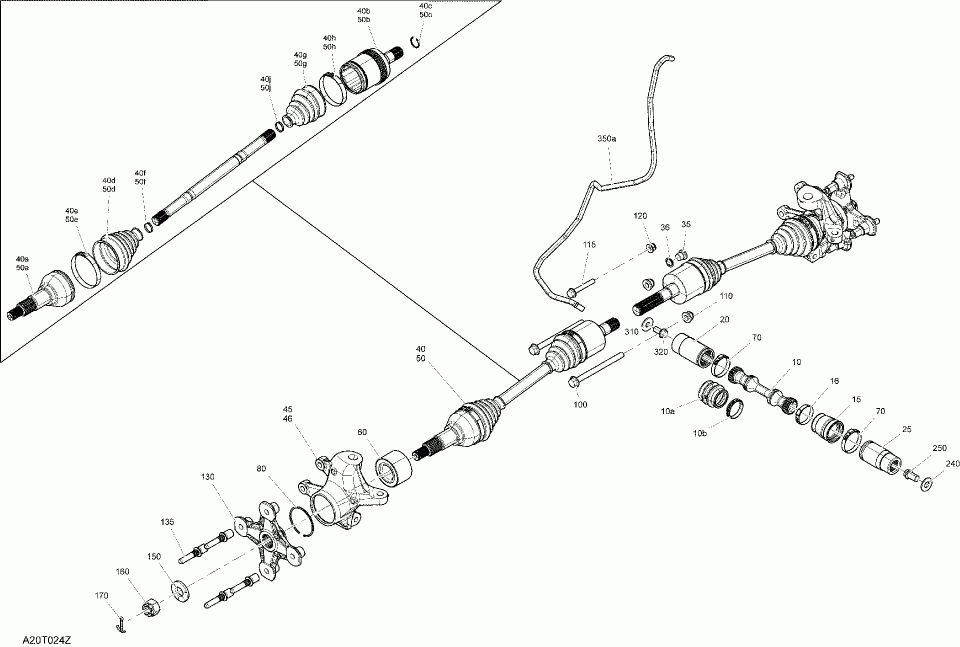

04- drive - front section - common parts

Can-Am (Bombardier) Outlander MAX 1000R EFI - XT_XTP_LTD - North America
Can-Am (Bombardier)
#oem кодцена
100
230602546
Hex. Flanged Screw M10 X 125.
10a
715900118
Rubber Boot.
10b
509000045
Oetiker Gear Clamp 36.1MM.
110
233201436
Flanged Elastic Nut M10.
115
207685544
Hex. Flanged Screw M8 X 55.
120
233281414
Hex. Flanged Elastic Nut M8.
135
250300642
Wheel Stud.
15
705401093
Rubber Boot.
150
250200171
Conical Spring Washer M18.
16
293650199
Oetiker Gear Clamp.
160
232291413
Hex. Flanged Castellated Nut M18.
170
250400071
Cotter Pin.
20
705401969
Coupling Sleeve.
240
250200102
Flat Washer M12.
25
703500678
Front Bushing Shaft Kit. Included 25 to 25b.
250
250001042
Hex Flanged Screw M12 X 20.
25b
705400036
Wear Ring. Not Shown.
310
250200014
Flat Washer M10.
320
250001046
Hex Flanged Screw M10 X 20 S.GRIP.
35
705500504
Fill Level Plug.
350a
293830193
Polyurethane Hose.
36
705500506
Copper Washer.
40
705402236
RH CV Joint. Included 40 to 40e.b.
40a
705401344
CV Joint.
40b
705401348
RH Plunging Joint.
40c
705401349
Circlip Joint.
40d
705401345
Boot Kit, Wheel Side.
40e
715900282
Oetiker Clamp, Large.
40f
715900283
Oetiker Clamp, Small.
40g
705401346
Boot Kit, Diff?rential Side.
40h
715900284
Oetiker Clamp, Large.
40j
715900261
Oetiker Clamp, Small.
45
705402904
LH Knuckle.
46
705402905
RH Knuckle.
50
705402235
LH CV Joint. Included 50 to 50e.b.
50a
705401344
CV Joint.
50b
705401350
LH Plunging Joint.
50c
705401349
Circlip Joint.
50d
705401345
Boot Kit, Wheel Side.
50e
715900282
Oetiker Clamp, Large.
50f
715900283
Oetiker Clamp, Small.
50g
705401346
Boot Kit, Diff?rential Side.
50h
715900284
Oetiker Clamp, Large.
50j
715900261
Oetiker Clamp, Small.
60
293350118
Cone Bearing.
70
293650138
Oetiker Gear Clamp 44.0MM.
80
293370019
Circlip.
