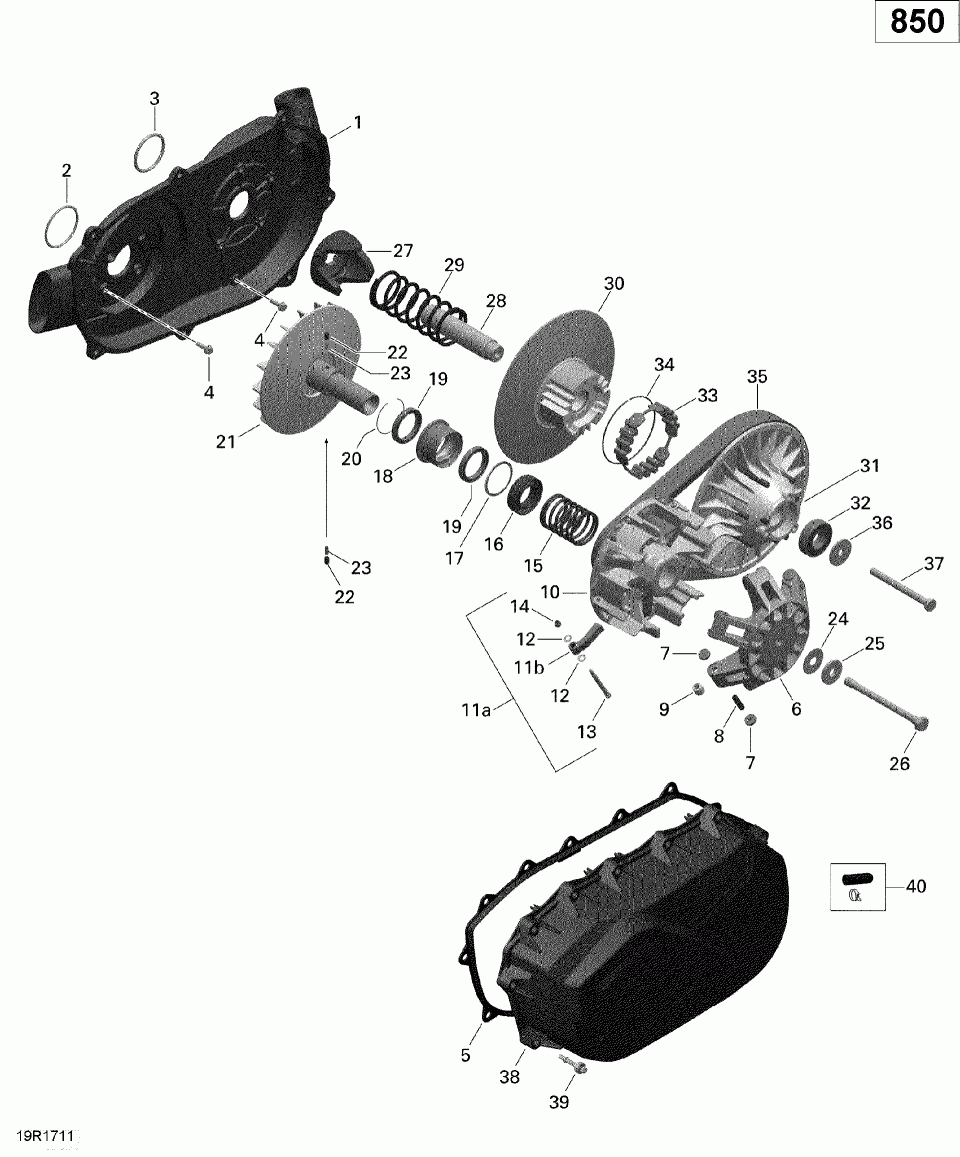

01- rotax - transmission - 850 efi (outlander)

Can-Am (Bombardier) Outlander 850 EFI - XMR - NEO YELLOW - North America
Can-Am (Bombardier)
#oem кодцена
1
420612304
CVT Air Guide.
10
420280467
Outher Haft.
11a
420248681
Centrifugal Lever Kit. Includes 11a to 14.
15
420238617
Compression Spring, Drive Pulley.
16
420627578
Spring Seat.
17
420460430
Friction Washer.
18
420257195
Drive Pulley Clutch.
19
420632377
Ball Bearing.
2
420430408
КОЛЬЦО
20
420245951
Retaining Ring.
21
420280374
Inner Half.
22
420229577
Spring Sleeve.
23
420239134
Spring.
24
420627920
Thrust Washer.
25
420627765
Spring Washer.
26
420641859
Hex. Screw M12 X 135.
27
420280701
Cam.
28
420220914
Driven Pulley Shaft.
29
420638040
Compression Spring.
3
420631088
КОЛЬЦО
32
420932421
Ball Bearing.
33
420660124
Torque Gear.
34
420245911
Retaining Ring.
35
422280360
V-Belt.
36
420627590
Thrust Washer.
37
420441485
Hex. Screw M10 X 110.
38
420611397
Variator Cover.
39
420440568
Hex. Distance Screw M6 X 30.5.
4
420441311
Hex.Screw M6 X 20.
40
707001179
Drain Plug Kit.
41
224061121
Washer. Winter Package.
42
420842041
Lock Nut M6. Winter Package.
5
420430126
Gasket.
7
420281296
Slider Shoe Set.
8
417223257
Roller Axle.
9
417223767
Roller.
