07- handlebar

Can-Am (Bombardier) DS 70

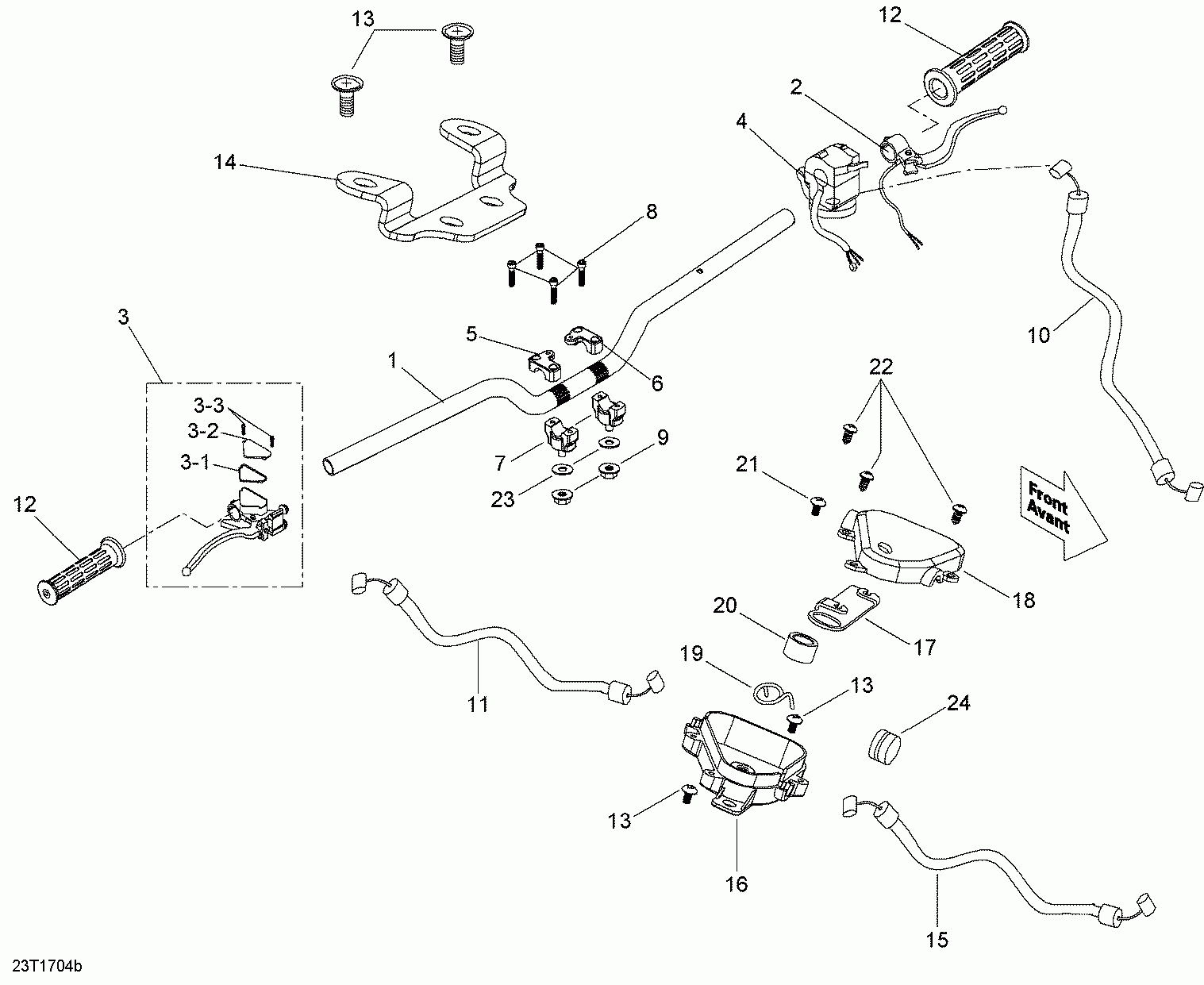

07- handlebar

#

oem код

название

цена

1

V53100DGF060BKLL

Handle Bar.

Handle Bar.

10

Choke Cable.

Choke Cable.

11

Throttle Cable.

Throttle Cable.

12

Handle Grip.

Handle Grip.

13

V930000601201LL

Round Head Screw.

Round Head Screw.

14

Support.

Support.

15

Throttle Cable.

Throttle Cable.

16

Lower Cover.

Lower Cover.

17

Plate.

Plate.

18

Upper Cover.

Upper Cover.

19

Spring.

Spring.

2

V53178MAA020BKLL

LH Brake Lever.

LH Brake Lever.

20

Collar.

Collar.

21

Round Head Bolt.

Round Head Bolt.

22

Tapping Screw.

Tapping Screw.

23

Helicoidal Lock Washer M10.

Helicoidal Lock Washer M10.

24

Rubber Cap.

Rubber Cap.

3-1

RH Lever Gasket.

RH Lever Gasket.

3-2

Lever Body Cover.

Lever Body Cover.

3-3

Screw.

Screw.

4

Multi-Fonction Switch.

Multi-Fonction Switch.

5

V53170MAA020BKLL

LH Handle Bar Clamp.

LH Handle Bar Clamp.

6

V53175MAA020BKLL

RH Handle Bar Clamp.

RH Handle Bar Clamp.

7

Lower Handle Bar Clamp.

Lower Handle Bar Clamp.

8

Hexagonal Bolt M6 X 25.

Hexagonal Bolt M6 X 25.

9

V9035010000010LL

Nylon Nut M10.

Nylon Nut M10.
