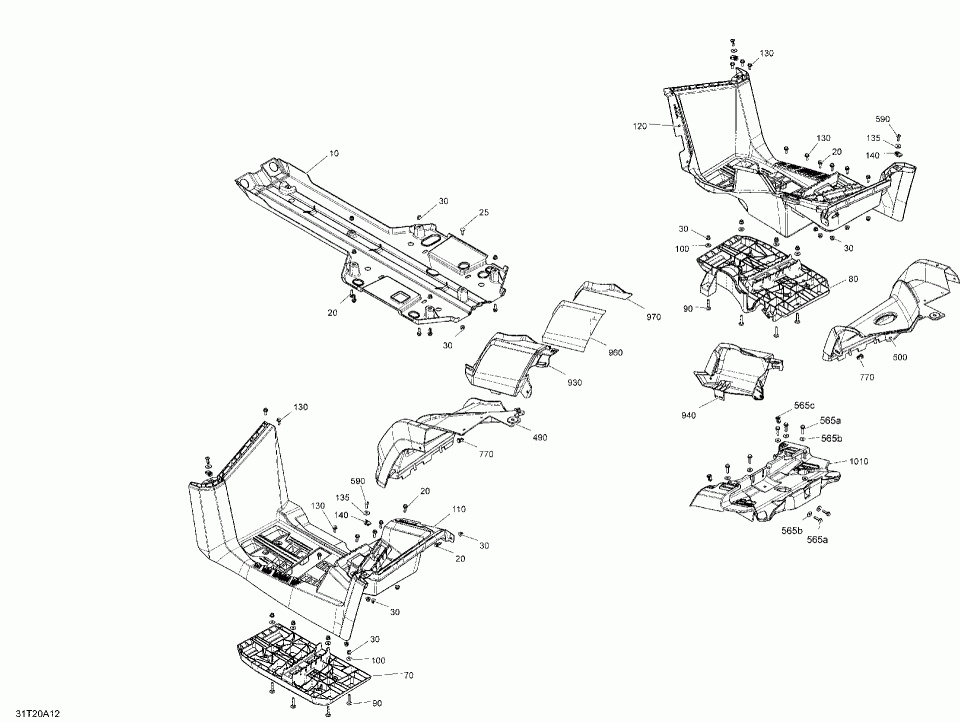

09- body - rear section - squadron green

Can-Am (Bombardier) Outlander MAX 6X6 - 650 EFI - North America
Can-Am (Bombardier)
#oem кодцена
10
715002374
Protective Plate Kit.
100
234062410
Flat Washer 6 mm.
1010
705007948
Seat Holder.
110
705003525
LH Footrest Max.
120
705003521
RH Footrest Max.
130
207661654
Hex. Flanged Screw M6 X 16.
135
224061201
Flat Washer.
140
250000957
Extruded Panel Nut M6.
20
207662054
Hex. Flanged Screw M6 X 20.
25
207762044
Carriage Bolt M6 X 20.
30
233261434
Flanged Elastic Nut M6.
490
715006076
Squadron Green, LH Rear Fender Kit.
500
715005114
Squadron Green, RH Rear Fender Kit.
565a
250000841
Screw Hex Flange M6 X 25.
565b
234062670
Flat Washer, Stainless.
565c
293150230
Tuflok Plastic Rivet.
590
250000722
Torx Screw M6 X 20.
70
705011540
LH Structural Footboard. Includes 70 to 70a.
80
705011542
RH Structural Footboard. Includes 80 to 80a.
90
207763554
Carriage Bolt M6 X 35.
930
715001897
LH Extension Panel.
940
705004348
RH Extension Panel.
960
705006870
Heat Shield.
970
705006871
Heat Shield.
