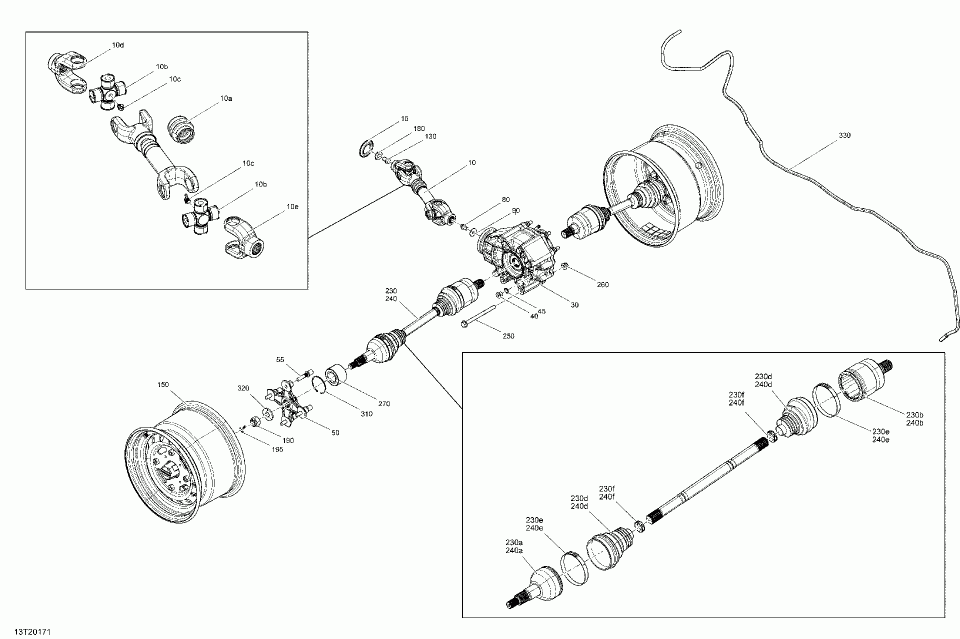

08- rear drive - common parts

Can-Am (Bombardier) Outlander 850 EFI - STD_DPS_XT_WINTER_XTP - North America
Can-Am (Bombardier)
#oem кодцена
10a
715900118
Rubber Boot. North Edition.
10c
715900295
Grease Fitting. North Edition.
10d
715900499
Joint. North Edition.
10e
715900438
Yoke. STD, DPS , XT & XTP.
10e
715900436
Joint. North Edition.
130
250001039
Hex Flanged Screw M12 X 16.
15
705501123
Protector.
180
250200005
Conical Spring Washer M12.
190
232291413
Hex. Flanged Castellated Nut M18.
195
250400071
Cotter Pin.
230
705502711
RH CV Joint. Includes 230 to 230f.
230a
705501776
CV Joint.
230b
705501780
Plunging Joint.
230c
705501781
Circlip. Not Shown.
230d
705501864
Boot Kit. Includes to.
230e
715900241
Oetiker Clamp, 82.1 mm.
230f
715900242
Oetiker Clamp, 27.3 mm.
240
705502710
LH CV Joint. Includes 240 to 240f.
240a
705501776
CV Joint.
240b
705501780
Plunging Joint.
240c
705501781
Circlip. Not Shown.
240d
705501864
Boot Kit. Includes to.
240e
715900241
Oetiker Clamp, 82.1 mm.
240f
715900242
Oetiker Clamp, 27.3 mm.
250
250001041
Hex. Flanged Screw M10 X 135.
260
233201436
Flanged Elastic Nut M10.
270
293350118
Cone Bearing.
30
705502808
Final Drive Unit. Includes 30 to 30t.
310
293370019
Circlip.
320
250200171
Conical Spring Washer M18.
330
293830193
Polyurethane Hose.
40
705500504
Fill Level Plug.
45
705500506
Copper Washer.
55
250300642
Wheel Stud. Tightening Torque: See Bulletin ATV 2020-4.
80
250001044
Screw-Hex.Flange M10 X 16 S.GRIP.
90
250200014
Flat Washer M10.
