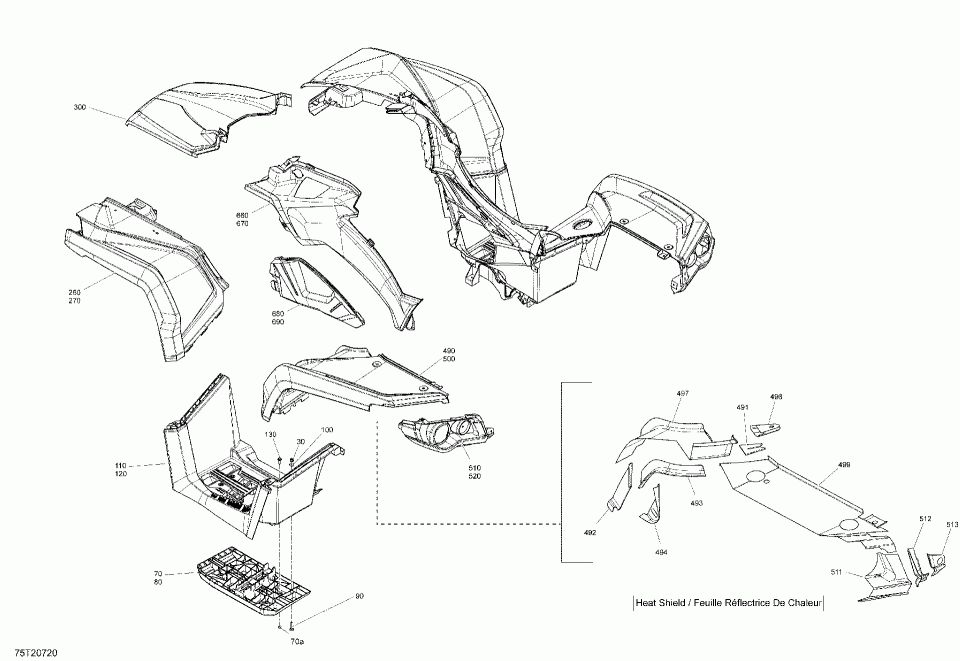

09- body - fenders and lateral panels - xt - mineral gray satin

Can-Am (Bombardier) Outlander 850 EFI - STD_DPS_XT_WINTER_XTP - North America
Can-Am (Bombardier)
#oem кодцена
100
234062410
Flat Washer 6 mm.
110
705007040
LH Footrest.
120
705007039
RH Footrest.
130
207662054
Hex. Flanged Screw M6 X 20.
260
715006930
Mineral Gray Satin, LH Front Fender.
270
715006946
Mineral Gray Satin, RH Front Fender.
30
233261434
Flanged Elastic Nut M6.
300
715006988
Mineral Gray Satin, Hood.
490
715006961
Mineral Gray Satin, LH Rear Fender.
491
707002456
Heat Shield.
492
707002457
Heat Shield.
493
707002458
Heat Shield.
494
707002459
Heat Shield.
496
707002461
Heat Shield.
497
707002462
Heat Shield.
499
707002464
Heat Shield.
500
705014483
Mineral Gray Satin, RH Rear Fender.
510
705006643
LH Rear Facia.
511
707002103
Heat Shield.
512
707002107
Heat Shield.
513
707002594
Heat Shield.
520
705006650
RH Rear Facia.
660
705014484
Mineral Gray Satin, LH Panel Central.
670
705014485
Mineral Gray Satin, RH Panel Central.
680
705014060
LH Central Panel.
690
705003444
Engine Cover.
70
705011540
LH Structural Footboard. Includes 70 to 70a.
70a
232862412
Square Nut M6.
80
705011542
RH Structural Footboard.
90
207763554
Carriage Bolt M6 X 35.
