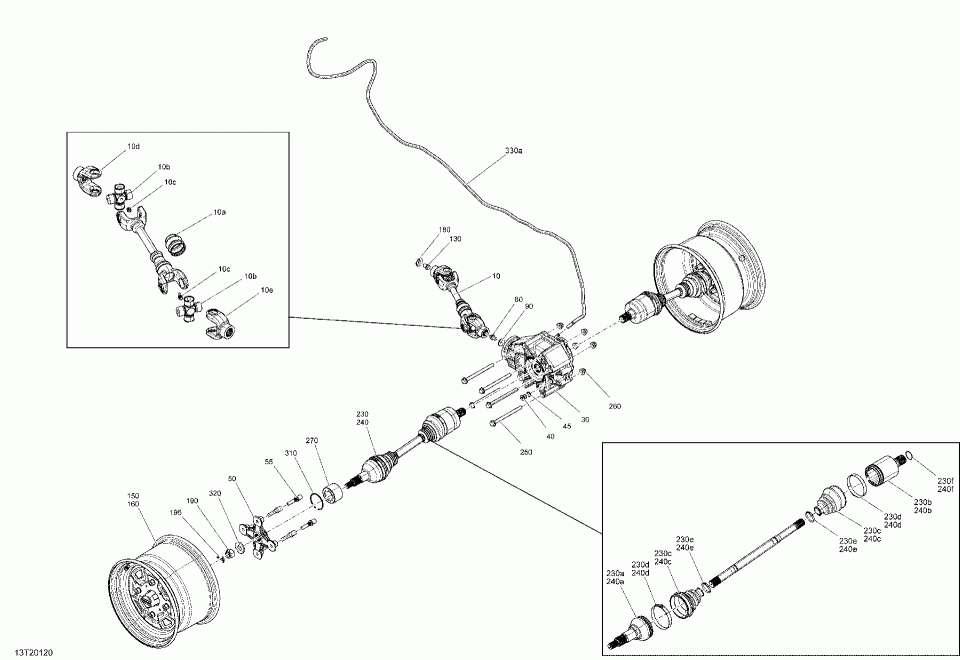

08- rear drive - common parts

Can-Am (Bombardier) Outlander T MAX 450 EFI - DPS - T Regulation
Can-Am (Bombardier)
#oem кодцена
10
705502726
Axle Drive.
10a
715900118
Rubber Boot.
10c
715900295
Grease Fitting.
10d
715900500
Yoke.
10e
715900499
Joint.
130
250001039
Hex Flanged Screw M12 X 16.
180
250200005
Conical Spring Washer M12.
190
232291413
Hex. Flanged Castellated Nut M18.
195
250400071
Cotter Pin.
230
705502577
RH Homocinetic Joint.
230a
705501776
CV Joint.
230b
715900604
Plunging Joint.
230c
705501781
Circlip.
230d
705501864
Boot Kit. Includes to.
230e
715900241
Oetiker Clamp, 82.1 mm.
230f
715900242
Oetiker Clamp, 27.3 mm.
240
705501485
LH Homocinetic Joint.
240a
705501776
CV Joint.
240b
705501780
Plunging Joint.
240c
705501864
Boot Kit. Includes to.
240d
715900241
Oetiker Clamp, 82.1 mm.
240e
715900242
Oetiker Clamp, 27.3 mm.
240f
705501781
Circlip.
250
250001041
Hex. Flanged Screw M10 X 135.
260
233201436
Flanged Elastic Nut M10.
270
293350118
Cone Bearing.
30
705502546
Final Drive Unit. Includes 30 to 30m.
310
293370019
Circlip.
320
250200171
Conical Spring Washer M18.
330a
293830193
Polyurethane Hose.
40
705500504
Fill Level Plug.
45
705500506
Copper Washer.
55
250300642
Wheel Stud.
80
250001044
Screw-Hex.Flange M10 X 16 S.GRIP.
90
250200014
Flat Washer M10.
