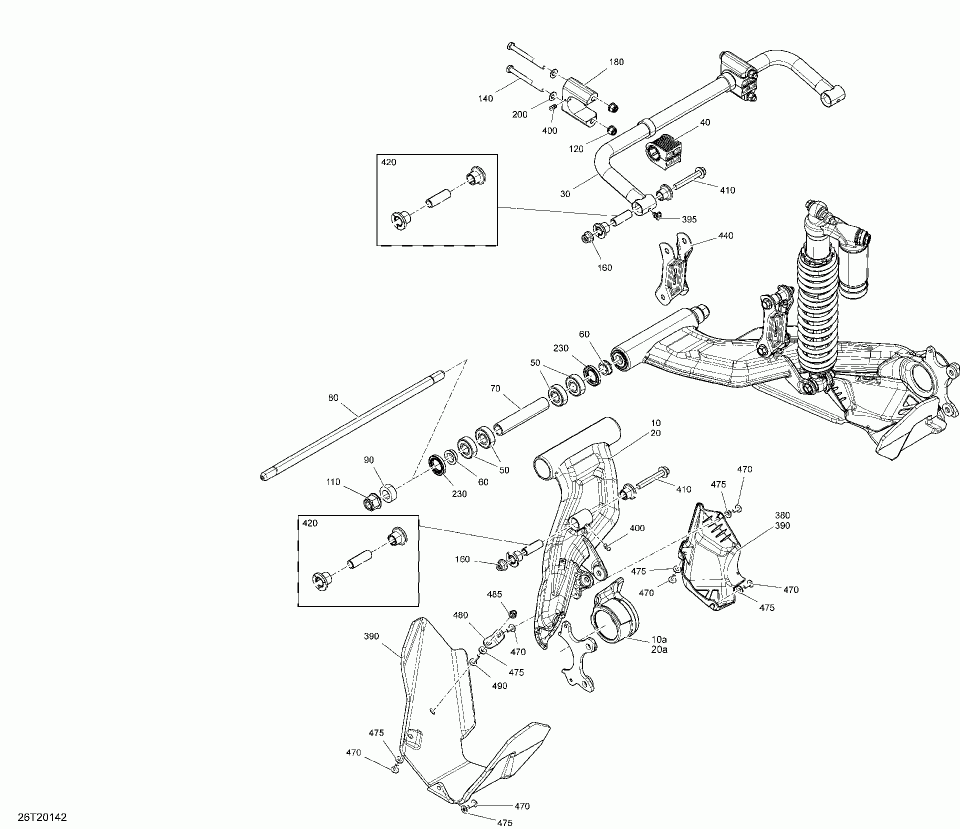

Задняя подвеска

Can-Am (Bombardier) Outlander 1000R EFI - XT_XTP_XXC - North America
Can-Am (Bombardier)
#oem кодцена
10
706003252
LH Swing Arm. XXC. Includes 10 to 10a.
10
706003041
LH Swing Arm. XT_XTP.
10a
706003041
LH Swing Arm. XXC.
110
233211466
Hex. Flanged Elastic Nut M16.
120
233281434
Hex. Flanged Elastic Nut M8.
140
250001035
Hex,. Screw M8 X 85.
160
233201436
Hex. Flanged Elastic Nut M10.
180
706001099
Bushing Holder.
20
706003253
RH Swing Arm. XXC. Includes 20 to 20a.
20
706003042
RH Swing Arm. XT_XTP.
200
234081430
Flat Washer M8.
20a
706003042
RH Swing Arm. XXC.
230
293200144
Seal.
30
706003050
Swaybar.
380
706003052
LH Protector. XT_XTP.
390
715004823
RH Arm Protector. XXC.
390
706003053
RH Protector. XT_XTP.
395
293550056
Grease Fitting 90°.
40
706003130
Bushing.
400
250000315
Grease Fitting.
410
207606536
Hex. Flanged Screw M10 X 65.
420
703500875
Bushing Kit.
440
706001020
Swaybar Linkage.
470
250000534
Tork Screw M6 X 16.
475
250200039
Flat Washer.
480
705013284
Bended Plate. XXC.
485
233261494
Hex. Elastic Flanged Nut M6. XXC.
490
250000758
Torx Screw M6 X 25. XXC.
50
706003749
Ball Bearing.
60
706001282
Spacer.
70
706002259
Spacer.
80
706001664
Axial Pivot M16.
90
250200112
Flat Washer M17.
