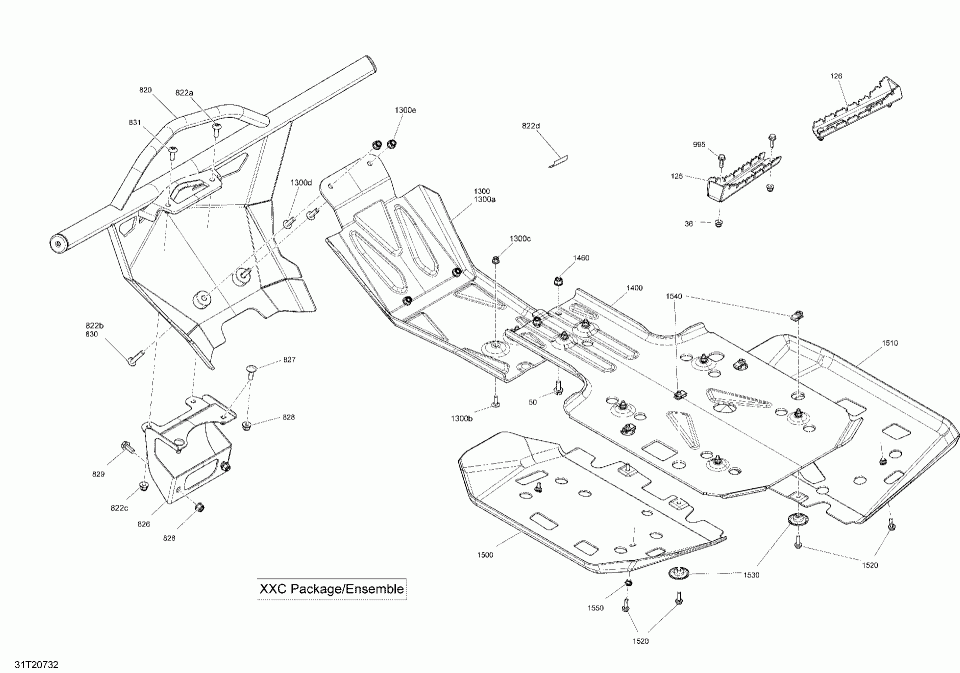

09- body - front bumper and skid plate - xxc

Can-Am (Bombardier) Outlander 1000R EFI - XXC - International
Can-Am (Bombardier)
#oem кодцена
125
705004352
LH Footrest.
126
705005395
RH Footrest.
1300
715000926
Front Skid Plate. Includes 1300 to 1300e.
1300a
704904566
CAN-AM Decal.
1300b
207762044
Carriage Bolt M6 X 20.
1300c
233261434
Flanged Elastic Nut M6.
1300d
250000745
Hex Torx Truss M8 X30.
1300e
233281434
Hex. Flanged Elastic Nut M8.
1400
705204031
Central Skid Plate.
1460
233281434
Hex. Flanged Elastic Nut M8.
1500
705010659
LH Skid Plate.
1510
705010660
RH Skid Plate.
1520
207662054
Hex. Flanged Screw M6 X 20.
1530
705007171
Cup.
1540
250000957
Extruded Panel Nut M6.
1550
250100199
Insert Half Hex Body M6 x 1.0.
36
233261434
Flanged Elastic Nut M6.
50
207682044
Hex. Flanged Screw M8 X 20.
820
715005863
Front Bumper Kit. XXC.
822a
250000874
Torx Truss M8 X 25. XXC.
822b
250000761
Torx Truss Screw M8 X 50. XXC.
822c
233281434
Hex. Flanged Elastic Nut M8. XXC.
822d
704906938
Warning Decal Bumper. XXC.
826
705012722
Bumper Support.
827
207782544
Carriage Bolt, M8 X 25.
828
233281434
Hex. Flanged Elastic Nut M8.
829
207682534
Hex. Flanged Screw M8 X 25.
830
250000761
Torx Truss Screw M8 X 50.
831
250000874
Torx Truss M8 X 25.
995
207662034
Hex. Flanged Screw M6 X 20.
