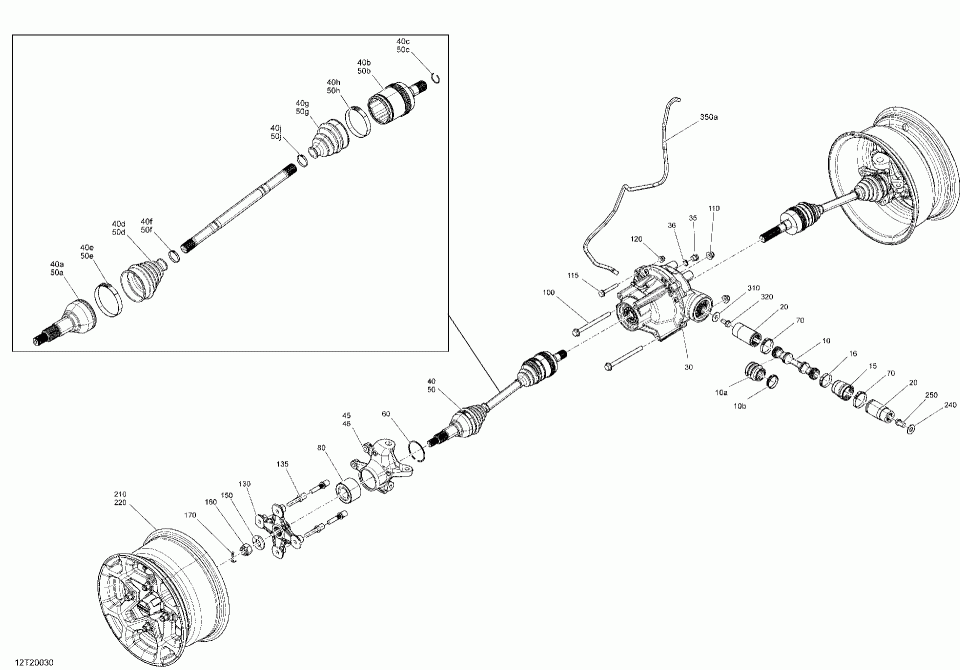

07- front drive - common parts

Can-Am (Bombardier) Outlander 570 EFI - XMR - International
Can-Am (Bombardier)
#oem кодцена
100
230602546
Hex. Flanged Screw M10 X 125.
10a
715900118
Rubber Boot.
10b
509000045
Oetiker Gear Clamp.
110
233201436
Hex. Flanged Elastic Nut M10.
115
207685544
Hex. Flanged Screw M8 X 55.
120
233281414
Hex. Flanged Elastic Nut M8.
135
250300642
Wheel Stud. Tightening Torque: See Bulletin ATV 2020-4.
15
705401093
Rubber Boot.
150
250200171
Conical Spring Washer M18.
16
293650199
Oetiker Gear Clamp.
160
232291413
Hex. Flanged Castellated Nut M18.
170
250400071
Cotter Pin.
20
705401969
Coupling Sleeve.
240
250200102
Flat Washer M12.
25
703500678
Front Bushing Shaft Kit. Not Shown.
250
250001042
Hex Flanged Screw M12 X 20.
30
703500908
Front Differential. Includes 30 to 30y.
310
250200014
Flat Washer M10.
320
250001046
Hex Flanged Screw M10 X 20 S.GRIP.
35
705500504
Fill Level Plug.
350a
293830193
Polyurethane Hose.
36
705500506
Copper Washer.
40
705401116
RH Homocinetic Joint.
40a
705401344
CV Joint.
40b
705401345
Boot Kit, Wheel Side. Includes to.
40c
715900282
Oetiker Clamp, Large.
40d
715900283
Oetiker Clamp, Small.
40e
705401346
Boot Kit, Diff?rential Side. Includes to.
40f
715900284
Oetiker Clamp, Large.
40g
715900261
Oetiker Clamp, Small.
40h
705401348
RH Plunging Joint.
40j
705401349
Circlip Joint.
45
705401290
LH Knuckle.
46
705401291
RH Knuckle.
50
705401115
LH Homocinetic Joint.
50a
705401344
CV Joint.
50b
705401345
Boot Kit, Wheel Side. Includes to.
50c
715900282
Oetiker Clamp, Large.
50d
715900283
Oetiker Clamp, Small.
50e
705401346
Boot Kit, Diff?rential Side. Includes to.
50f
715900284
Oetiker Clamp, Large.
50g
715900261
Oetiker Clamp, Small.
50h
705401350
LH Plunging Joint.
50j
705401349
Circlip Joint.
60
293350118
Cone Bearing.
70
293650138
Oetiker Gear Clamp.
80
293370019
Circlip.
