08- rear drive - common parts Запчасти для квадроциклов ATV Can-Am (Bombardier) Outlander 570 EFI - XMR

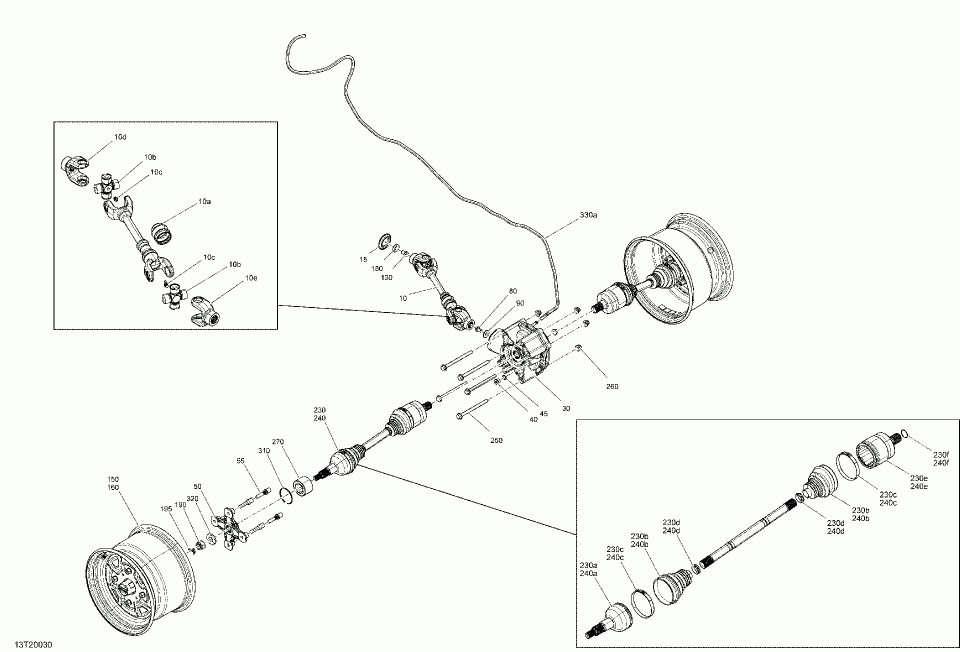

08- rear drive - common parts

Can-Am (Bombardier) Outlander 570 EFI - XMR - International

oem код

название

цена

10a

715900118

Rubber Boot.

10b

715900326

Universal Joint. Includes to.

10c

715900295

Grease Fitting.

10d

715900438

Yoke.

10e

715900500

Yoke.

130

250001039

Hex Flanged Screw M12 X 16.

705501123

Protector.

180

250200005

Conical Spring Washer M12.

190

232291413

Hex. Flanged Castellated Nut M18.

195

250400071

Cotter Pin.

230

705501486

RH Homocinetic Joint.

230a

705501776

CV Joint.

230b

705501864

Boot Kit. Includes to.

230c

715900241

Oetiker Clamp, 82.1 mm.

230d

715900242

Oetiker Clamp, 27.3 mm.

230e

705501780

Plunging Joint.

230f

705501781

Circlip.

240

705501485

LH Homocinetic Joint.

240a

705501776

CV Joint.

240b

705501864

Boot Kit. Includes to.

240c

715900241

Oetiker Clamp, 82.1 mm.

240d

715900242

Oetiker Clamp, 27.3 mm.

240e

705501780

Plunging Joint.

240f

705501781

Circlip.

250

250001041

Hex. Flanged Screw M10 X 135.

260

233201436

Flanged Elastic Nut M10.

270

293350118

Cone Bearing.

703501019

Final Drive Unit. Includes 30 to 30t.

310

293370019

Circlip.

320

250200171

Conical Spring Washer M18.

330a

Polyurethane Hose.

Fill Level Plug.

Copper Washer.

Wheel Stud.

Screw-Hex.Flange M10 X 16 S.GRIP.

250200014

Flat Washer M10.
