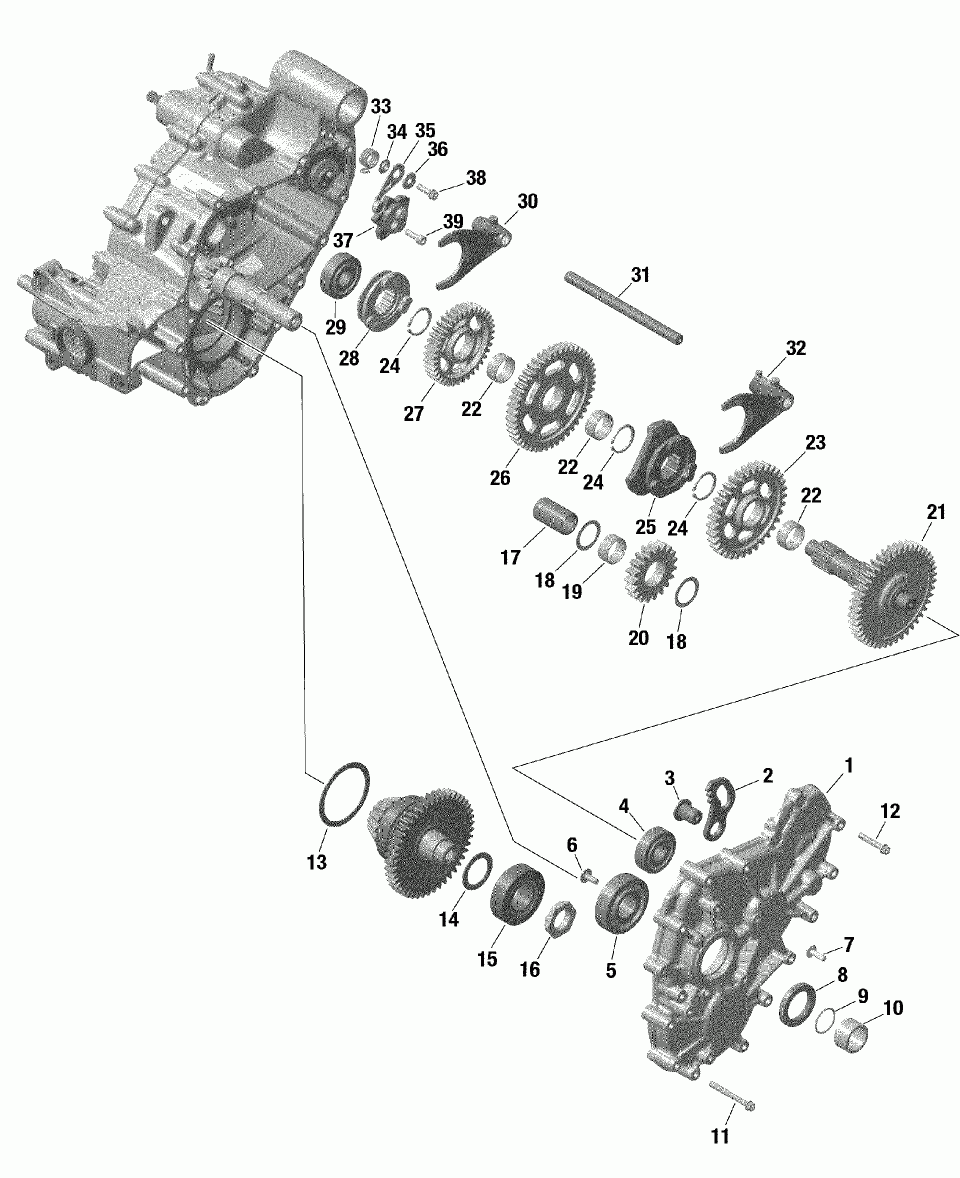

05- gear box 2 - 420686214

Can-Am (Bombardier) Outlander 1000R EFI - XMR - International - Non-European Communities
Can-Am (Bombardier)
#oem кодцена
10
420647262
Distance Ring.
11
420440702
Flanged Torx Screw M6 X 55.
12
420440274
Flanged Torx Screw M6 X 35.
17
420620688
Intermediate Gear Shaft.
18
420427011
Thrust Washer.
19
420932930
Needle Bearing.
2
420257659
Parking Lock Lever.
20
420434588
Intermediate Gear, 19 Teeth.
21
420637048
Main Shaft.
22
420632070
Needle Bearing.
23
420434873
Gear Pinion, 34 Teeth.
24
420845772
Retaining Ring.
25
420257954
Shifting Sleeve.
26
420434865
Gear Pinion, 46 Teeth.
27
420434857
Gear Pinion, 36 Teeth.
28
420257945
Shifting Sleeve.
29
420932816
Ball Bearing.
3
420647123
Collar Sleeve.
30
420657365
Shift Fork.
31
420258388
Fork Spindle.
33
420248533
Index Lever. Includes 33 to 37.
38
420441835
Flanged Torx Screw M6 X 20.
39
420241939
Allen Screw M6 X 20.
4
420932816
Ball Bearing.
5
420932823
Ball Bearing.
6
420240051
Torx Screw M6 X 13.
7
420441431
Distance Screw M6.
8
420950089
Oil Seal.
