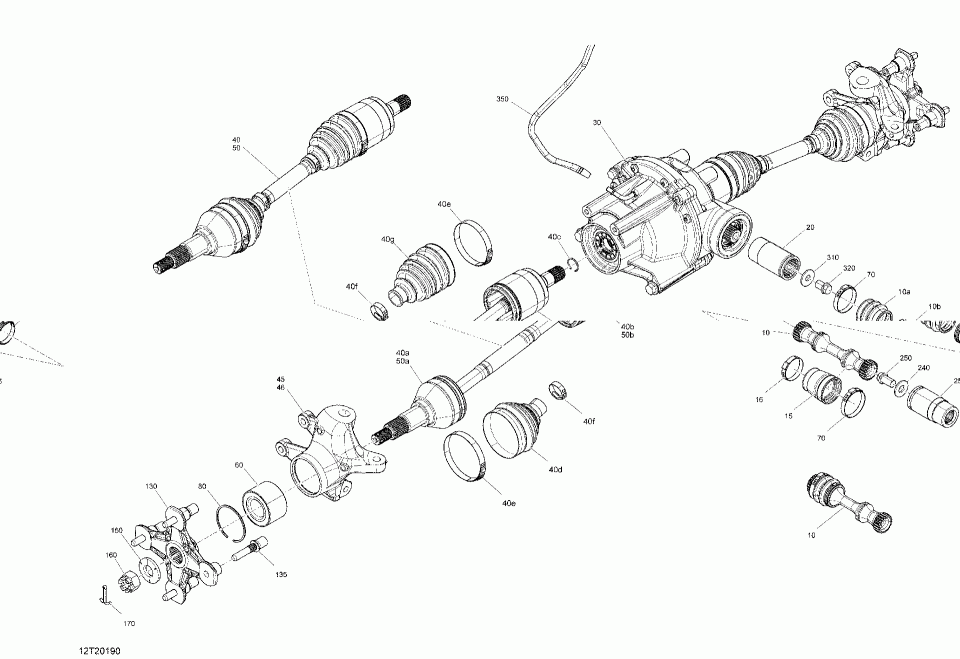

07- front drive - common parts

Can-Am (Bombardier) Outlander 1000R EFI - XMR - International - Non-European Communities
Can-Am (Bombardier)
#oem кодцена
10a
715900118
Rubber Boot.
10b
509000045
Oetiker Gear Clamp.
130
705501900
Wheel Hub.
135
250300642
Wheel Stud. Tightening Torque: See Bulletin ATV 2020-4.
15
705401093
Rubber Boot.
150
250200171
Conical Spring Washer M18.
16
293650199
Oetiker Gear Clamp.
160
250100047
Hex. Castellated Nut M18.
170
250400071
Cotter Pin.
20
705401969
Coupling Sleeve.
240
250200102
Flat Washer M12.
25
703500678
Front Bushing Shaft Kit.
250
250001042
Hex Flanged Screw M12 X 20.
30
703500908
Front Differential.
310
250200014
Flat Washer M10.
320
250001046
Hex Flanged Screw M10 X 20 S.GRIP.
350
293830193
Polyurethane Hose.
40
705402238
RH CV Joint. Includes 40 to 40g.
40a
715900428
CV Joint.
40b
715900395
RH Plunging CV Joint.
40c
705401349
Circlip Joint.
40d
705401354
Boot Kit, Wheel Side. Includes 40d to 40f.
40e
715900260
Oetiker Clamp, Large.
40f
715900261
Oetiker Clamp, Small.
40g
705401355
Boot Kit, Diff?rential Side. Includes 40g, 40e, 40f.
45
705401290
LH Knuckle.
46
705401291
RH Knuckle.
50
705402237
LH CV Joint. Includes 50 to 50j.
50a
705401407
CV Joint.
50b
715900396
LH Plunging CV Joint.
60
293350118
Cone Bearing.
70
293650138
Oetiker Gear Clamp.
80
293370019
Circlip.
