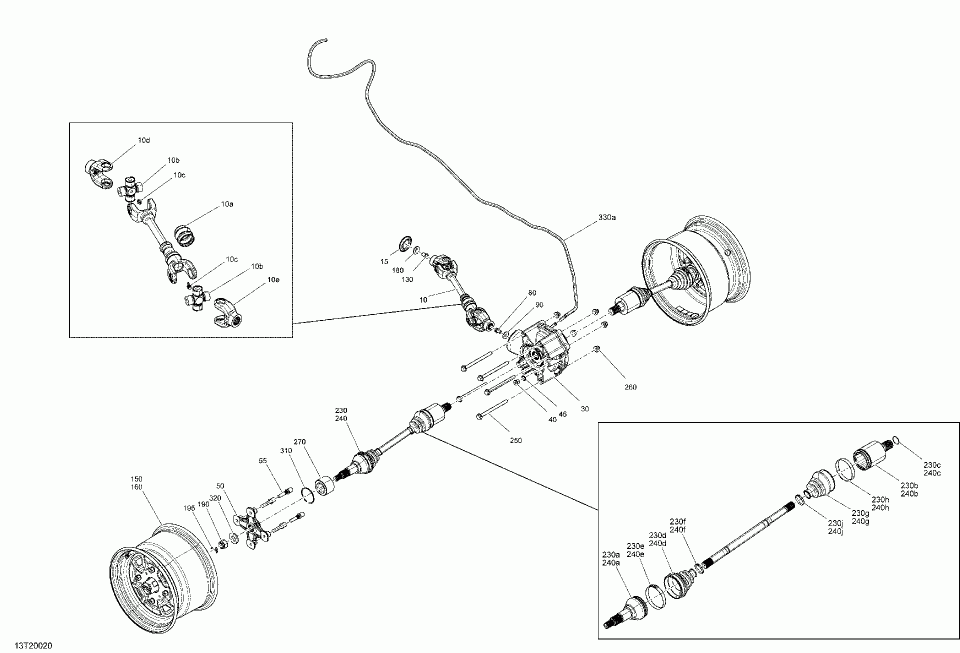

08- rear drive - common parts

Can-Am (Bombardier) Outlander MAX 570 EFI - DPS - International - European Communities
Can-Am (Bombardier)
#oem кодцена
10a
715900118
Rubber Boot.
10b
715900326
Universal Joint. Includes to.
10c
715900295
Grease Fitting.
10d
715900438
Yoke.
10e
715900500
Yoke.
130
250001039
Hex Flanged Screw M12 X 16.
15
705501123
Protector.
180
250200005
Conical Spring Washer M12.
190
232291413
Hex. Flanged Castellated Nut M18.
195
250400071
Cotter Pin.
230a
705401344
CV Joint.
230b
715900304
Plunging Joint.
230c
705501781
Circlip.
230d
705401345
Boot Kit, Wheel Side. Includes to.
230e
715900282
Oetiker Clamp, Large.
230f
715900283
Oetiker Clamp, Small.
230g
705401346
Boot Kit, Diff?rential Side. Includes to.
230h
715900284
Oetiker Clamp, Large.
230j
715900261
Oetiker Clamp, Small.
240a
705401344
CV Joint.
240b
715900304
Plunging Joint.
240c
705501781
Circlip.
240d
705401345
Boot Kit, Wheel Side. Includes to.
240e
715900282
Oetiker Clamp, Large.
240f
715900283
Oetiker Clamp, Small.
240g
705401346
Boot Kit, Diff?rential Side. Includes to.
240h
715900284
Oetiker Clamp, Large.
240j
715900261
Oetiker Clamp, Small.
250
250001041
Hex. Flanged Screw M10 X 135.
260
233201436
Flanged Elastic Nut M10.
270
293350118
Cone Bearing.
30
703501019
Final Drive Unit. Includes 30 to 30t.
310
293370019
Circlip.
320
250200171
Conical Spring Washer M18.
330a
293830193
Polyurethane Hose.
40
705500504
Fill Level Plug.
45
705500506
Copper Washer.
55
250300642
Wheel Stud.
80
250001044
Screw-Hex.Flange M10 X 16 S.GRIP.
90
250200014
Flat Washer M10.
