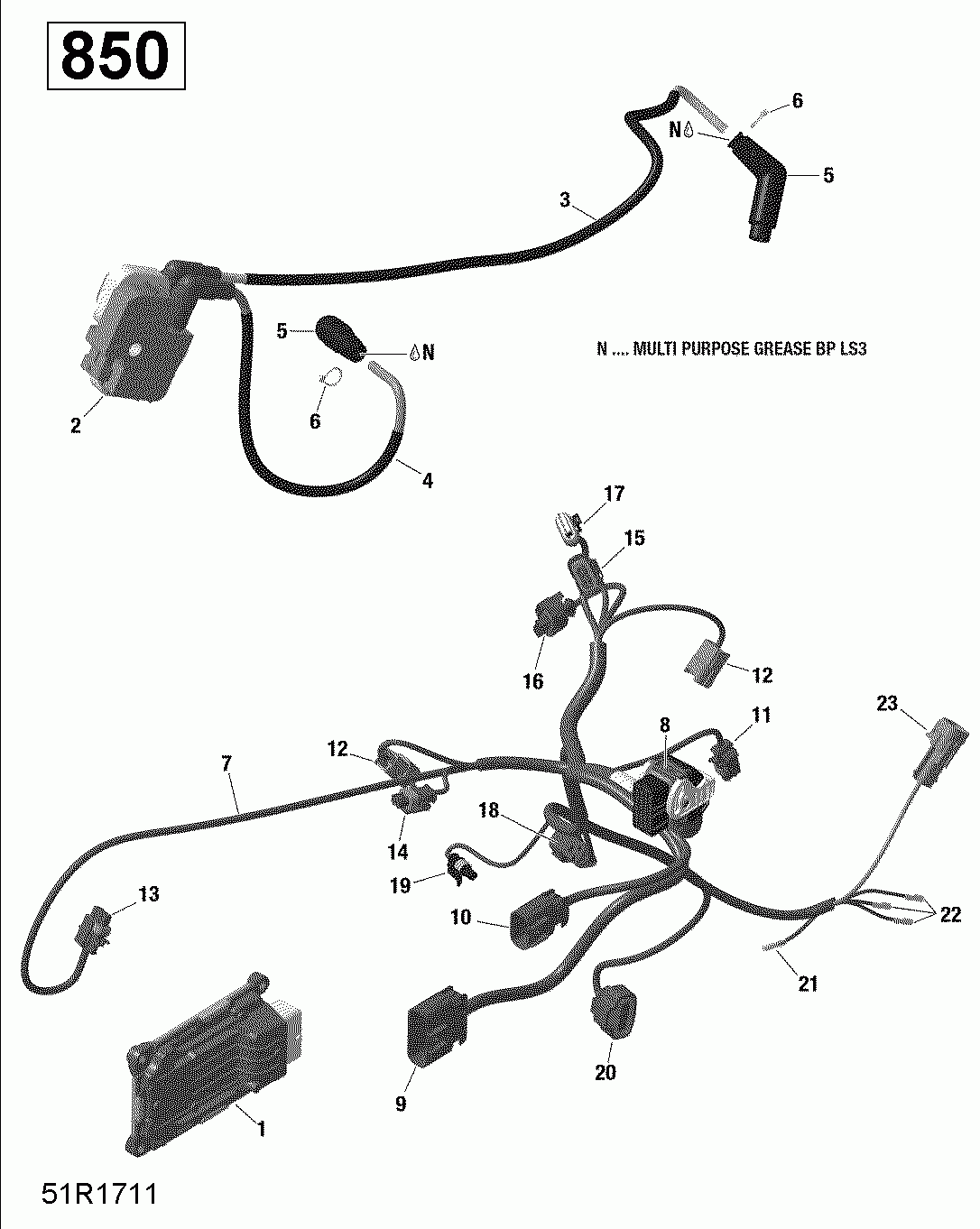

10- engine harness and electronic module - 850 efi (outlander)
10- engine harness and electronic module - 850 efi (outlander)

10- engine harness and electronic module - 850 efi (outlander)

Can-Am (Bombardier) Outlander MAX 850 EFI - North America

10- engine harness and electronic module - 850 efi (outlander)

#

oem код

название

цена

1

Electronic Module Programmable.

Electronic Module Programmable.

10

Housing. DELPHI 15326840.

Housing. DELPHI 15326840.

11

Male Housing, 2 Circuits. BOSCH 1928403137.

Male Housing, 2 Circuits. BOSCH 1928403137.

14

Male Housing, 2 Circuits. BOSCH 1928403137.

Male Housing, 2 Circuits. BOSCH 1928403137.

15

Housing Connector, 3 Circuits. BOSCH 1928403870.

Housing Connector, 3 Circuits. BOSCH 1928403870.

16

Male Connector. BOSCH 1928403736.

Male Connector. BOSCH 1928403736.

18

Male Housing. DEUTSCH DT04-3P.

Male Housing. DEUTSCH DT04-3P.

2

Ignition Coil.

Ignition Coil.

20

Male Housing, 4 Circuits. SUMIIMOTO 6189-0225.

Male Housing, 4 Circuits. SUMIIMOTO 6189-0225.

21

Insulated Sheath. YAZAKI 7120-1151 (P/N 964072).

Insulated Sheath. YAZAKI 7120-1151 (P/N 964072).

22

Male Housing, 3 Circuits. BOSCH 1928403110.

Male Housing, 3 Circuits. BOSCH 1928403110.

3

Spark Plug Cable, 570 mm, PTO Side.

Spark Plug Cable, 570 mm, PTO Side.

4

Ignition Cable 315MM MAG.

Ignition Cable 315MM MAG.

5

Spark Plug Connector.

Spark Plug Connector.

6

Tie Rap.

Tie Rap.

7

Engine Wiring Harness. Except XMR.

Engine Wiring Harness. Except XMR.

7

Engine Wiring Harness. XMR.

Engine Wiring Harness. XMR.

9

Housing. DELPHI 15326868.

Housing. DELPHI 15326868.
