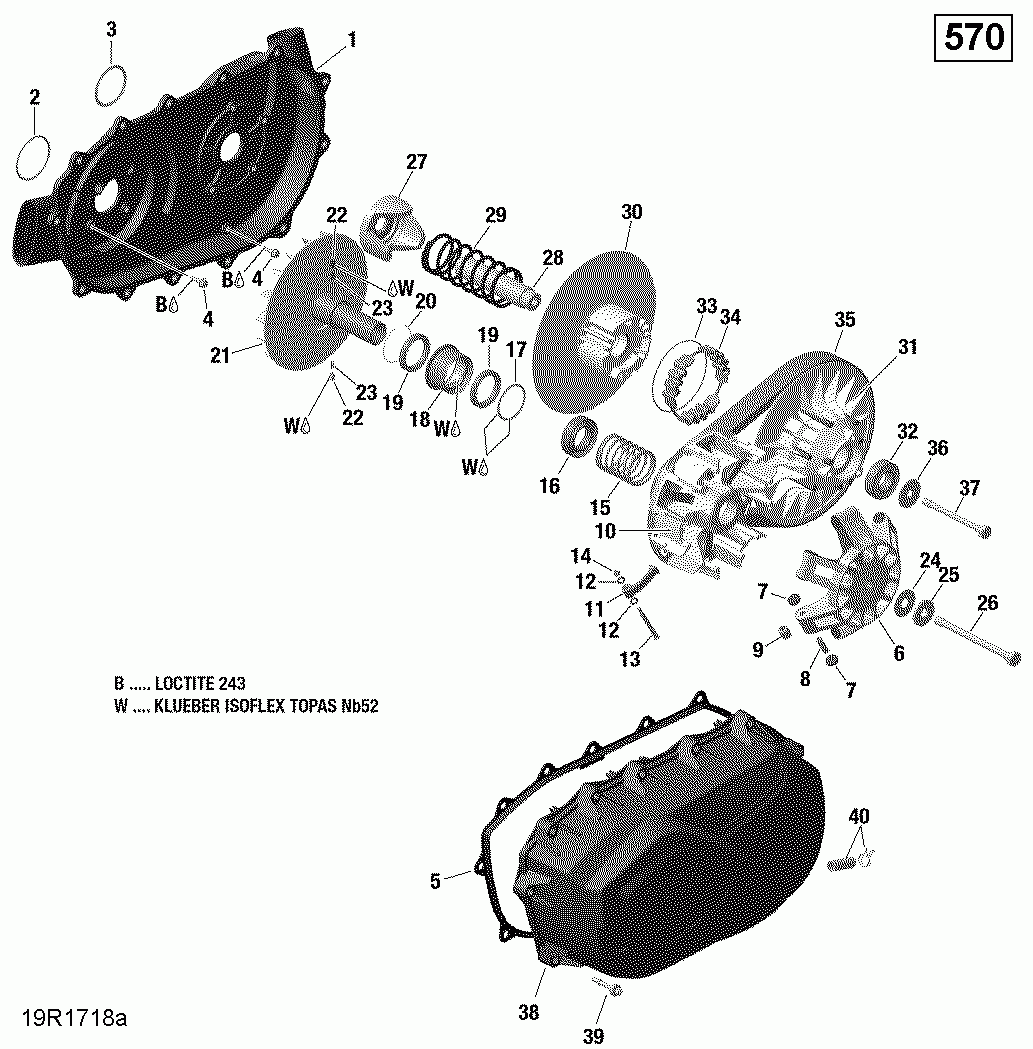

05- transmission - 570 efi

Can-Am (Bombardier) Outlander MAX 570 EFI - STD_DPS - International - Non-European Communities
Can-Am (Bombardier)
#oem кодцена
1
420612304
CVT Air Guide.
10
420280467
Outher Haft.
11>14
420248680
Centrifugal Lever Set.
15
420238610
Compression Spring, Drive Pulley.
16
420627578
Spring Seat.
17
420460430
Friction Washer.
18
420257195
Drive Pulley Clutch.
19
420632377
Ball Bearing.
2
420430408
КОЛЬЦО
20
420245951
Retaining Ring.
21
420280374
Inner Half.
22
420229577
Spring Sleeve.
23
420239134
Spring.
24
420627920
Thrust Washer.
25
420627765
Spring Washer.
26
420641859
Hex. Screw M12 X 140.
27
420280701
Driven Pulley Cam.
28
420220913
Driven Pulley Shaft.
29
420238176
Compression Spring.
3
420631088
КОЛЬЦО
32
420932421
Ball Bearing.
33
420660124
Torque Gear.
34
420245911
Retaining Ring.
35
422280360
V-Belt.
36
420627590
Thrust Washer.
37
420441485
Hex. Screw M10 X 110.
38
420611397
Variator Cover.
39
420440568
Hex. Distance Screw M6 X 30.5.
4
420441311
Hex.Screw M6 X 20.
40
707001179
Drain Plug Kit.
5
420430126
Gasket.
7
420281296
Slider Shoe Set.
8
417223257
Roller Axle.
9
417223767
Roller.
