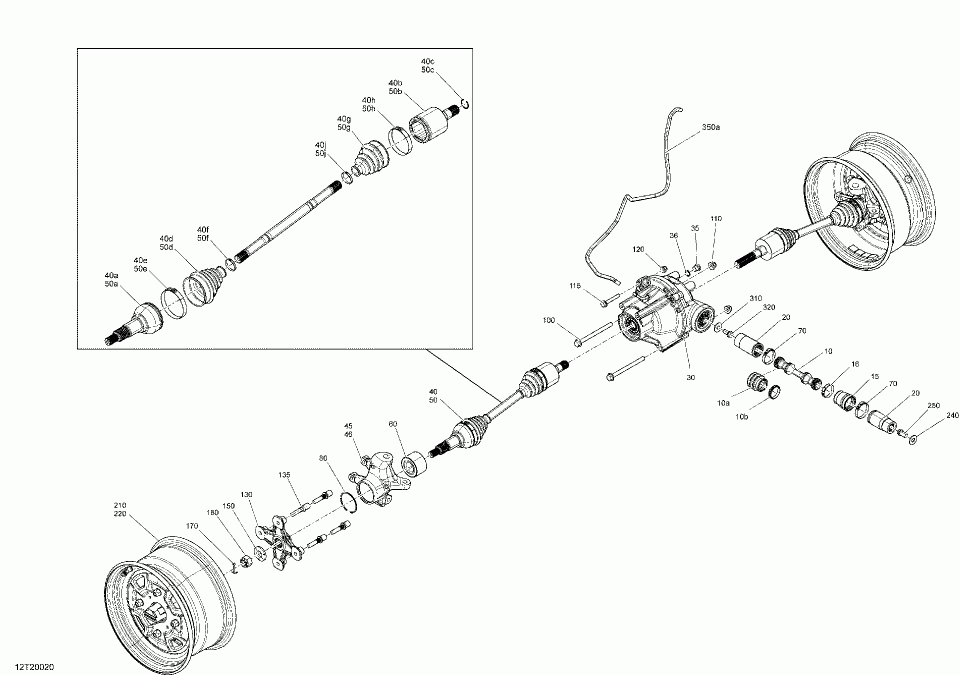

07- front drive - common parts

Can-Am (Bombardier) Outlander MAX 570 EFI - STD_DPS - International - Non-European Communities
Can-Am (Bombardier)
#oem кодцена
100
230602546
Hex. Flanged Screw M10 X 125.
10a
715900118
Rubber Boot.
10b
509000045
Oetiker Gear Clamp.
110
233201436
Hex. Flanged Elastic Nut M10.
115
207685544
Hex. Flanged Screw M8 X 55.
120
233281414
Hex. Flanged Elastic Nut M8.
135
250300642
Wheel Stud. Tightening Torque: See Bulletin ATV 2020-4.
15
705401093
Rubber Boot.
150
250200171
Conical Spring Washer M18.
16
293650199
Oetiker Gear Clamp.
160
232291413
Hex. Flanged Castellated Nut M18.
170
250400071
Cotter Pin.
20
705401969
Coupling Sleeve.
240
250200102
Flat Washer M12.
25
703500678
Front Bushing Shaft Kit. Not Shown.
250
250001042
Hex Flanged Screw M12 X 20.
30
703500907
Front Differential. Package STD. Includes 30 to 30y.
30
703500908
Front Differential. Package DPS. Includes 30 to 30y.
310
250200014
Flat Washer M10.
320
250001046
Hex Flanged Screw M10 X 20 S.GRIP.
35
705500504
Fill Level Plug.
350a
293830193
Polyurethane Hose.
36
705500506
Copper Washer.
40
705401428
RH Front half shaft.
40a
715900297
CV Joint.
40b
715900300
RH Plunging CV Joint.
40c
705401349
Circlip Joint.
40d
715900298
CV Boot Kit, Wheel Side. Includes to.
40e
715900262
Oetiker Clamp, Large.
40f
715900317
Oetiker Clamp, Small.
40g
715900299
CV Boot Kit, Differential Side. Includes to.
40h
715900318
Oetiker Clamp, Large.
40j
715900317
Oetiker Clamp, Small.
45
705401290
LH Knuckle.
46
705401291
RH Knuckle.
50
705401429
LH Front half shaft.
50a
715900297
CV Joint.
50b
715900301
LH Plunging CV Joint.
50c
705401349
Circlip Joint.
50d
715900298
CV Boot Kit, Wheel Side. Includes to.
50e
715900262
Oetiker Clamp, Large.
50f
715900317
Oetiker Clamp, Small.
50g
715900299
CV Boot Kit, Differential Side. Includes to.
50h
715900318
Oetiker Clamp, Large.
50j
715900317
Oetiker Clamp, Small.
60
293350118
Cone Bearing.
70
293650138
Oetiker Gear Clamp.
80
293370019
Circlip.
