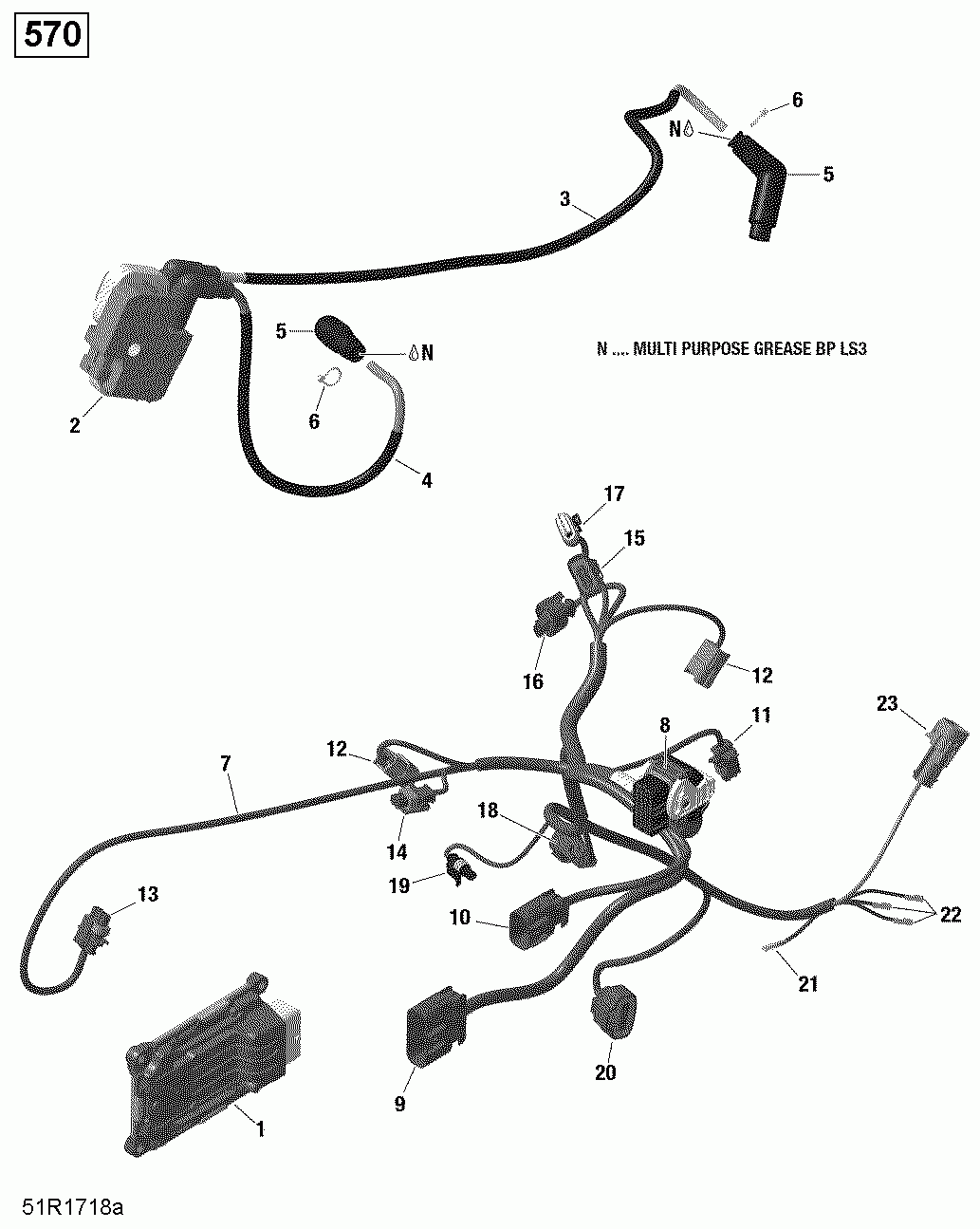

10- engine harness and electronic module - 570 efi - std - dps - xt - hunting

Can-Am (Bombardier) Outlander MAX 570 EFI - STD_DPS - International - Non-European Communities
Can-Am (Bombardier)
#oem кодцена
1
420464080
ECM, Engine Control Module. Outlander Non Max.
1
420464081
ECM, Engine Control Module. Outlander Max.
10
710001927
Housing.
11
278001005
Male Housing, 2 Circuits.
13
278000997
Male Housing, 3 Circuits.
14
278001005
Male Housing, 2 Circuits.
15
278001829
Housing Connector, 3 Circuits.
16
515176410
Male Connector.
18
278002378
Male Housing.
19
278001012
Male Housing, 1 Circuit.
2>2a
278001546
Ignition Coil.
20
710000329
Male Housing, 4 Circuits.
21>21a
278001009
Female Terminal.
21a
278001007
Insulated Sheath.
22>22a
278001009
Female Terminal.
22a
278001007
Insulated Sheath.
2a
710000568
Housing.
3
420464167
Spark Plug Cable, 610 mm, PTO Side.
4
420464155
Ignition Cable 315MM MAG.
5
420265248
Spark Plug Connector.
7>23
420864696
Engine Wiring Harness. Except CARB.
7>23
420864691
Engine Wiring Harness. CARB.
9
710001227
Housing.
