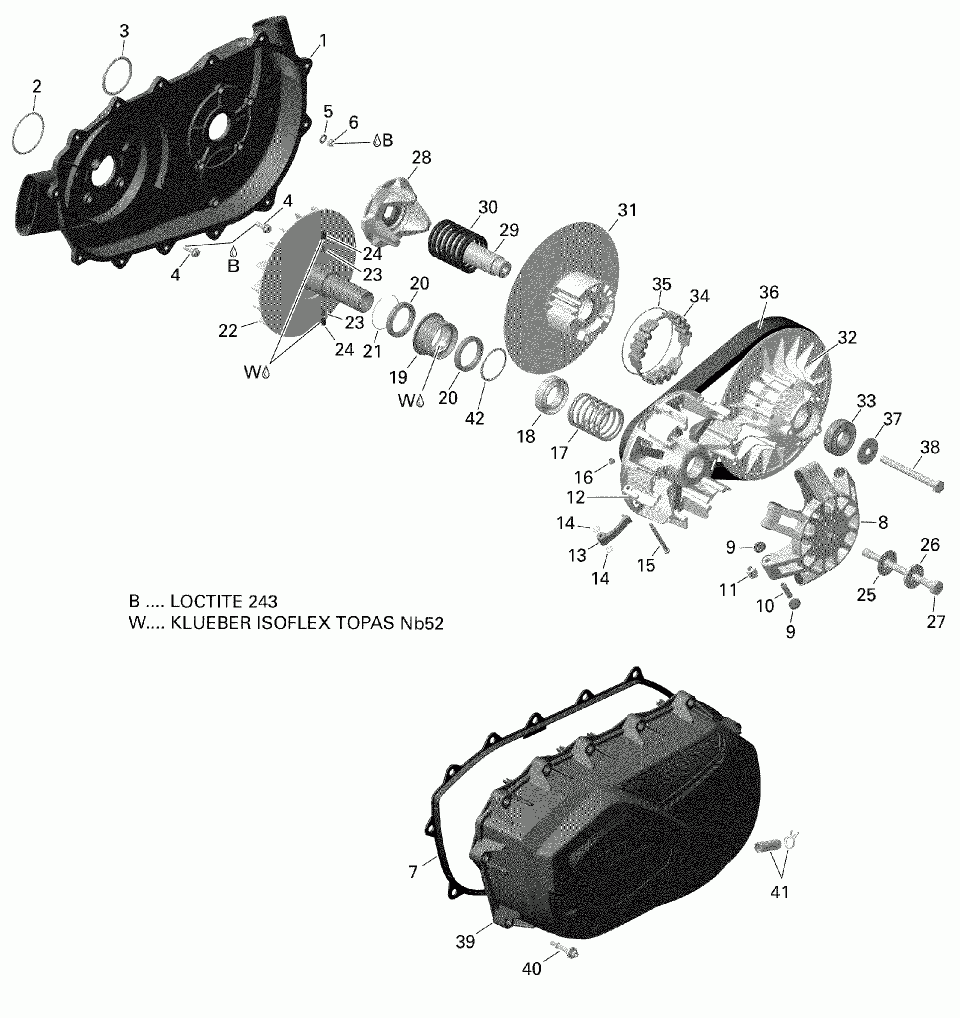

Трансмиссия

Can-Am (Bombardier) Outlander MAX 650 EFI - XT - International - European Communities
Can-Am (Bombardier)
#oem кодцена
1
420612304
CVT Air Guide.
10
417223257
Roller Axle.
11
417223767
Roller.
12
420280467
Outher Haft.
13>16
420248558
Centrifugal Lever Set.
17
420238610
Compression Spring, Drive Pulley.
18
420627578
Spring Seat.
19
420257195
Drive Pulley Clutch.
2
420430408
КОЛЬЦО
20
420632377
Ball Bearing.
21
420245951
Retaining Ring.
22
420280374
Inner Half.
23
420229577
Spring Sleeve.
24
420239134
Spring.
25
420627920
Thrust Washer.
26
420627765
Spring Washer.
27
420641859
Hex. Screw M12 X 140.
28
420280199
Driven Pulley Cam.
29
420220913
Driven Pulley Shaft.
3
420631088
КОЛЬЦО
30
420238176
Compression Spring.
33
420932421
Ball Bearing.
34
420660124
Torque Gear.
35
420245911
Retaining Ring.
36
422280360
V-Belt.
37
420627590
Thrust Washer.
38
420441485
Hex. Screw M10 X 110.
39
420611397
Variator Cover.
4
420441311
Hex.Screw M6 X 20.
40
420440568
Hex Screw M6 X 30.
41
707001179
Drain Plug Kit.
42
420460430
Friction Washer. Optional.
5
224061121
Washer. Optional.
6
420842041
Washer. Optional.
7
420430126
Gasket.
9
420281296
Slider Shoe Set.
