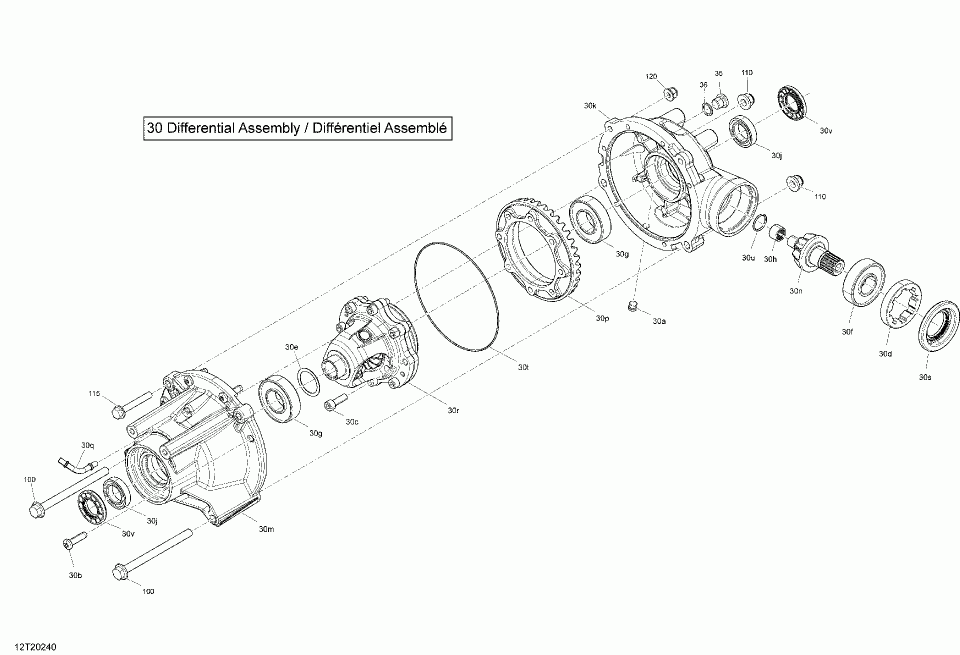

07- front drive - differential parts

Can-Am (Bombardier) Outlander MAX 650 EFI - XT - International - European Communities
Can-Am (Bombardier)
#oem кодцена
100
230602546
Hex. Flanged Screw M10 X 125.
110
233201436
Hex. Flanged Elastic Nut M10.
115
207685544
Hex. Flanged Screw M8 X 55.
120
233281414
Hex. Flanged Elastic Nut M8.
30
703500908
Front Differential.
30a
705501885
Drain Plug.
30b
705401601
Screw.
30c
705401602
Screw.
30d
705401603
Nut.
30e
705401604
Shim.
30f
705401605
Ball Bearing.
30g
705401606
Ball Bearing.
30h
705401607
Needle Bearing.
30j
705401608
Ball Bearing.
30k
705401792
Front Cover, Pinion.
30m
705401610
Front Cover.
30n
705401791
Pinion 10 Teeth.
30p
705401612
Gear 36 Teeth.
30q
705401613
Vent Valve.
30r
705402182
Differential.
30s
705401615
Oil Seal.
30t
705401616
Seal.
30v
705401618
Gasket.
35
705500504
Fill Level Plug.
36
705500506
Copper Washer.
