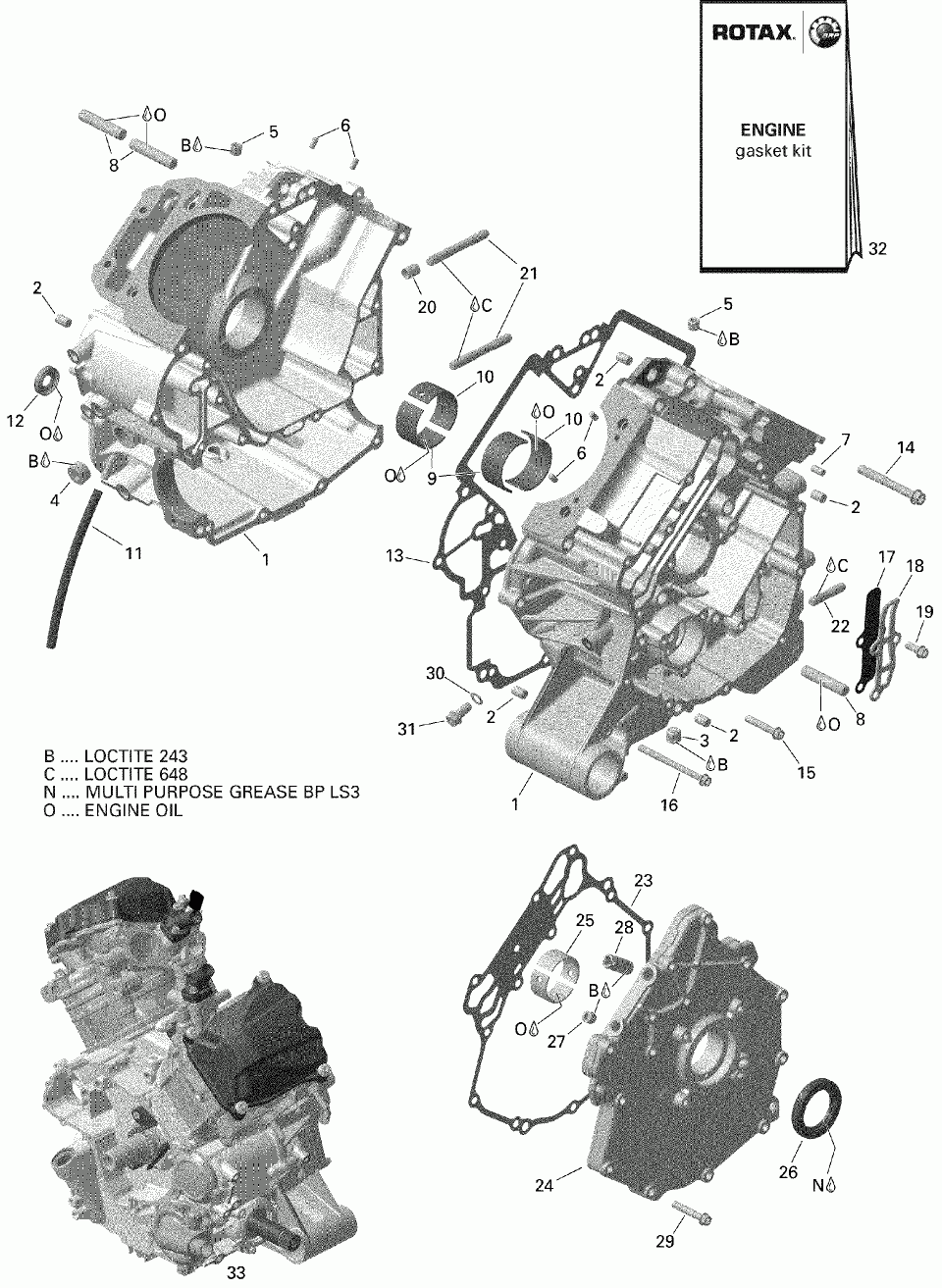

01- crankcase version 1

Can-Am (Bombardier) Outlander MAX 650 EFI - XT - International - Non-European Communities
Can-Am (Bombardier)
#oem кодцена
10
420233965
Plain Bearing.
12
420650315
Oil Seal.
13
420651220
Gasket.
14
420440402
Flanged Torx Screw M8 X 65.
15
420440274
Flanged Torx Screw M6 X 35.
16
420440657
Flanged Torx Screw M6 X 75.
17
420224720
Valve Plate.
18
420224725
Reed Valve Stop.
19
420641048
Flanged Torx Screw M6 X 16.
2
420632010
Center Pin 8 X 12.
20
420929670
Dowel Pin 10 X 13.
21
420240816
Stud.
22
420840718
Stud.
23
420651211
Gasket.
25
420233995
Bearing Sleeve.
26
420631933
Oil Seal.
27
420641323
Plug Screw M10 X 1.
28
420256332
Hose Nipple.
29
420440274
Flanged Torx Screw M6 X 35.
3
420929650
Drive Pin 5 X 10.
30
420950141
Sealing Ring.
31
420440852
Flanged Torx Screw M8 X 16.
32
420684144
Gasket Set, Engine.
33
420066025
Long Block, 650EFI.
4
420240170
Plug Screw M18 X 1.5.
5
420641323
Plug Screw M10 X 1.
6
420929650
Drive Pin 5 X 10.
7
420932780
Needle Pin.
8
420229302
Location Pin.
9
420233960
Plain Bearing.
