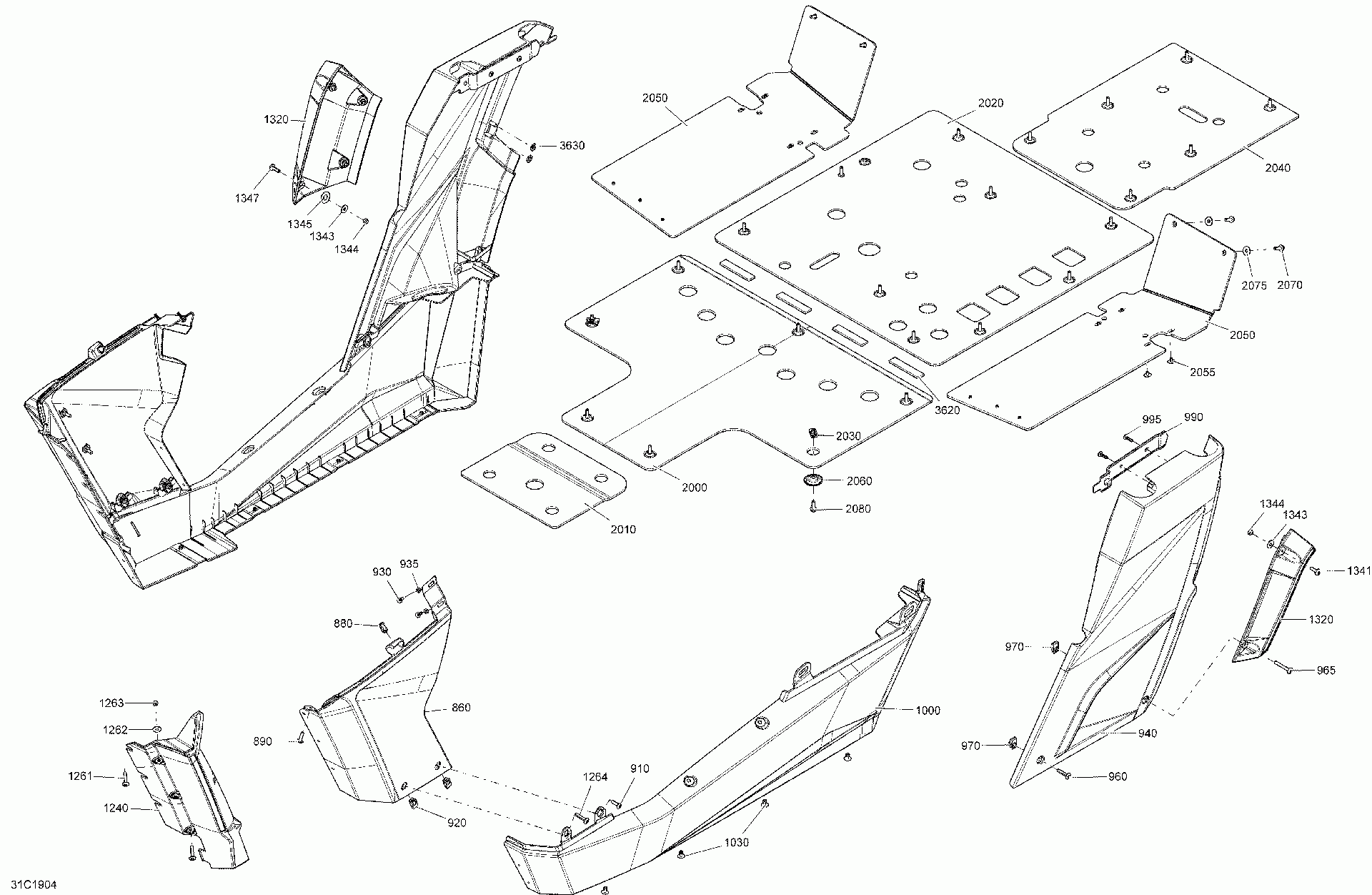

09- body and accessories commander - central panel - camo

Cam-am 001 - Commander 800R EFI - North America
Cam-am
#oem кодцена
860
705009590
Camo, LH Front Lateral Panel
860
705009591
Camo, RH Front Lateral Panel
880
293150230
Tuflok Plastic Rivet
890
250000722
Torx Screw M6 X 20
900
250000957
Extruded Panel Nut M6
910
250000722
Torx Screw M6 X 20
920
250000957
Extruded Panel Nut M6
930
250000760
Torx Screw Truss Head K50X20 T20
935
234051410
Flat Washer M5
940
705009596
Camo, LH Rear Lateral Panel
940
705009597
Camo, RH Rear Lateral Panel
960
250000843
Torx Truss Screw M6 X 30
965
250000748
Torx Screw M6 X 45
970
250000957
Extruded Panel Nut M6
990
705007916
Support Skid Plate
995
250000760
Torx Screw Truss Head K50X20 T20
1000
705006993
LH Middle Side Pannel
1000
705006994
RH Middle Side Pannel
1030
293150104
Pop Rivet 3/16
1200
705008666
Black, LH Upper Front Mudguard
1220
705008667
Black, RH Upper Front Mudguard
1221
250000842
Torx Screw M6 X 30 Stainless
1222
234062670
Flat Washer, Stainless
1223
232561434
Elastic Stop Nut M6
1240
705008668
Black, LH Lower Mudguard
1240
705008669
Black, RH Lower Mudguard
1261
250000842
Torx Screw M6 X 30 Stainless
1262
234062670
Flat Washer, Stainless
1263
232561434
Elastic Stop Nut M6
1264
250000842
Torx Screw M6 X 30 Stainless
1320
705008670
Black, LH Rear Lower Mudguard
1320
705008672
RH Rear Lower Black Mudguard
1341
250000712
Torx Screw M6 X 20
1343
234062670
Flat Washer, Stainless
1344
232561434
Elastic Stop Nut M6
1345
250200086
Шайба
1347
250000712
Torx Screw M6 X 20
2000
705007055
Middle Protector Plate
2000
715001996
Middle Front Protector Plate
2010
715001996
Middle Front Protector Plate
2020
705007056
Rear Protector Plate
2020
715001997
Middle Rear Protector Plate
2030
250000957
Extruded Panel Nut M6
2040
705007227
Rear Protector Plate
2040
715000694
Rear Protector Plate
2050
705007038
RH Lateral Skid Plate
2050
715001640
LH Rear Skid Plate
2050b
293150104
Pop Rivet 3/16
2050c
210262550
Hex. Flanged Forming Screw M6 X 25
2050d
234062600
Flat Washer M6, Stainless
2055
293150104
Pop Rivet 3/16
2060
705007171
Крышка крыльчатки
2070
210262050
Washer Head Hexagonal Screw
2075
250200097
Шайба
2080
210262050
Washer Head Hexagonal Screw
3620
291001932
Подушка изолирующая
3700
250100031
Push Nut
