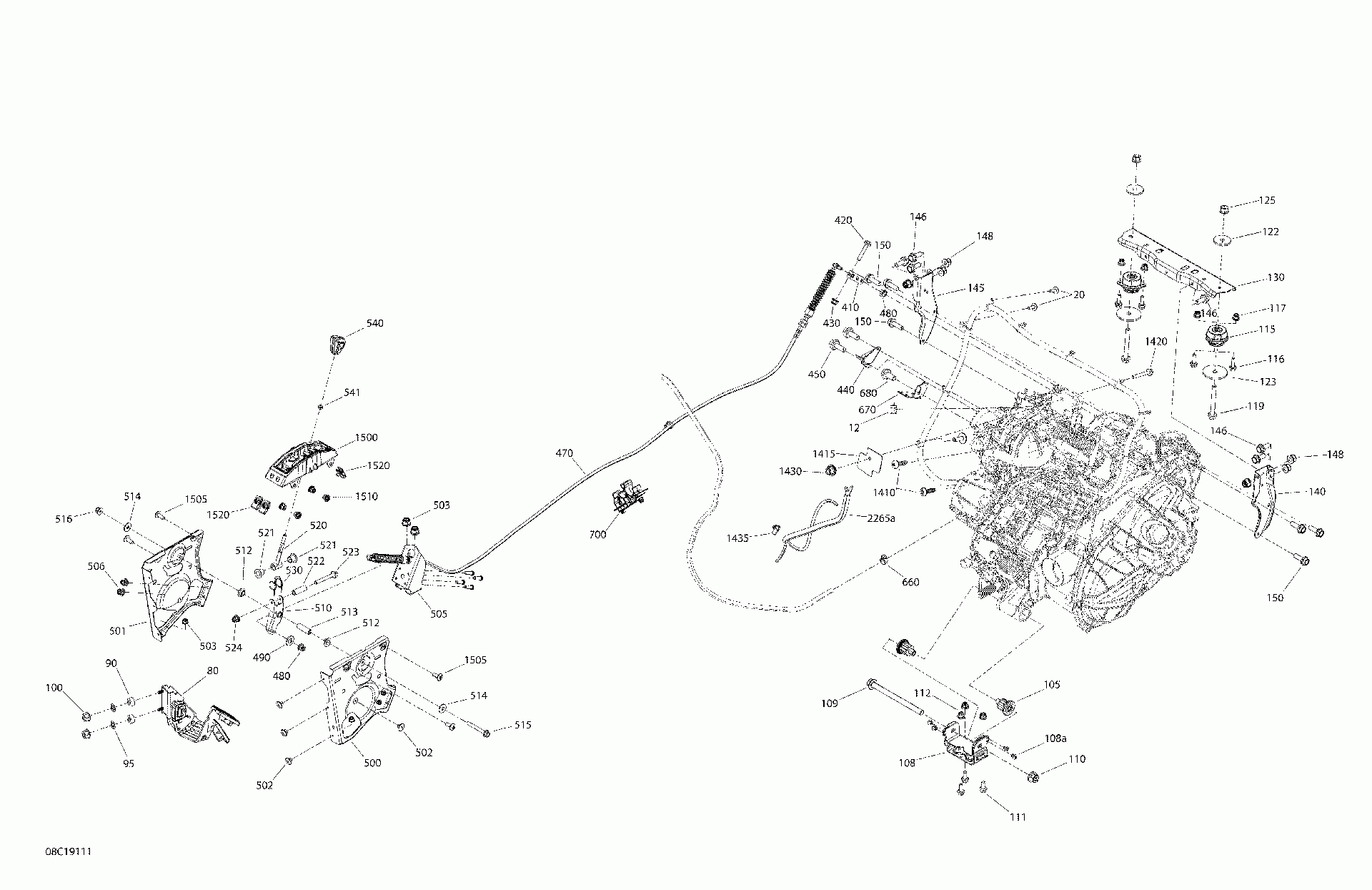

01- engine maverick sport - 1000r efi - package dps - whitout cvt

Cam-am 001 - Maverick Sport 1000R - DPS - T1B Series
Cam-am
#oem кодцена
12
293650214
Norma Spring Clamp
20
250000959
Screw PT Type K-50 X 16
80
707001166
Accelerator Pedal
90
707000848
Втулка
95
250100031
Push Nut
100
233081436
Hex. Flanged Nut M8
105
707001169
Демпфер
108
707001902
Rubber Mount
108a
390402200
Pop Rivet 3/16
109
230603546
Hex. Flanged Screw M10 X 135
110
233201436
Flanged Elastic Nut M10
111
207661644
Hex. Flanged Screw M6 X 16
112
233261414
Hex. Flanged Elastic Nut M6 x 1.0
116
207662044
Hex. Flanged Screw M6 X 20
117
233261414
Hex. Flanged Elastic Nut M6 x 1.0
119
207686544
Hex. Flanged Screw, M8 X 65
122
250200158
Flat Washer M8
123
250200180
Flat Washer M8
125
233081436
Hex. Flanged Nut M8
130
707002290
Bracket-Link
140
707002449
Engine Bracket
145
707002450
Engine Bracket
146
207682046
Hex. Flanged Screw M8 X 20
148
233281416
Hex. Elastic Flanged Nut M8
150
207582544
Hex. Flanged Screw M8 X 25, Scotch Grip
410
707000911
Рычаг
420
207663544
Hex. Flanged Screw M6 X 35
430
233261414
Hex. Flanged Elastic Nut M6 x 1.0
440
707001614
Cable Support
450
207561644
Hex.Fla. Screw M6 X 16, Scotch Grip
470
707002000
Shifting Cable
480
232581414
Hex. Elastic Stop Nut M8
490
234001410
Flat Washer 10 mm
500
707002099
LH Bracket
501
707002100
RH Bracket
502
293150103
Pop Rivet 3/16
503
233281414
Hex. Flanged Elastic Nut M8
505
707002098
Cable Support
506
233261414
Hex. Flanged Elastic Nut M6 x 1.0
510
707002093
Lower Lever Arm
512
707000847
Flanged Bushing
513
707001376
Втулка
514
234062410
Flat Washer 6 mm
515
207665044
Hex. Flanged Screw M6 X 50
516
233261414
Hex. Flanged Elastic Nut M6 x 1.0
520
707000711
Upper Lever Arm
521
707000869
Flanged Bushing
522
707001376
Втулка
523
207665044
Hex. Flanged Screw M6 X 50
524
233261414
Hex. Flanged Elastic Nut M6 x 1.0
530
707000750
Lever Arm Spring
540
707000965
Lever Button
541
232180491
Hex. Jam Nut M8
660
293650042
Oetiker Clamp
670
710004561
Cable Support
680
207502044
Flanged Hex Screw M10 X 20
700
707002116
Hose Support
1410
250000760
Torx Screw Truss Head K50X20 T20
1415
710000073
Insulator Pad
1420
250000213
Hex. Flanged Screw M6 X 1.0 X 45
1430
250100199
Insert, Half Hex Body M6 x 1.0
1435
710006067
Stud Tie Wrap
1500
715005861
Lever Indicator
1505
250000717
Torx Head Screw M6 X 16
1510
250100199
Insert, Half Hex Body M6 x 1.0
1520
250000957
Extruded Panel Nut M6
2265a
415080000
Tubing 16 mm (1 meter pac)
