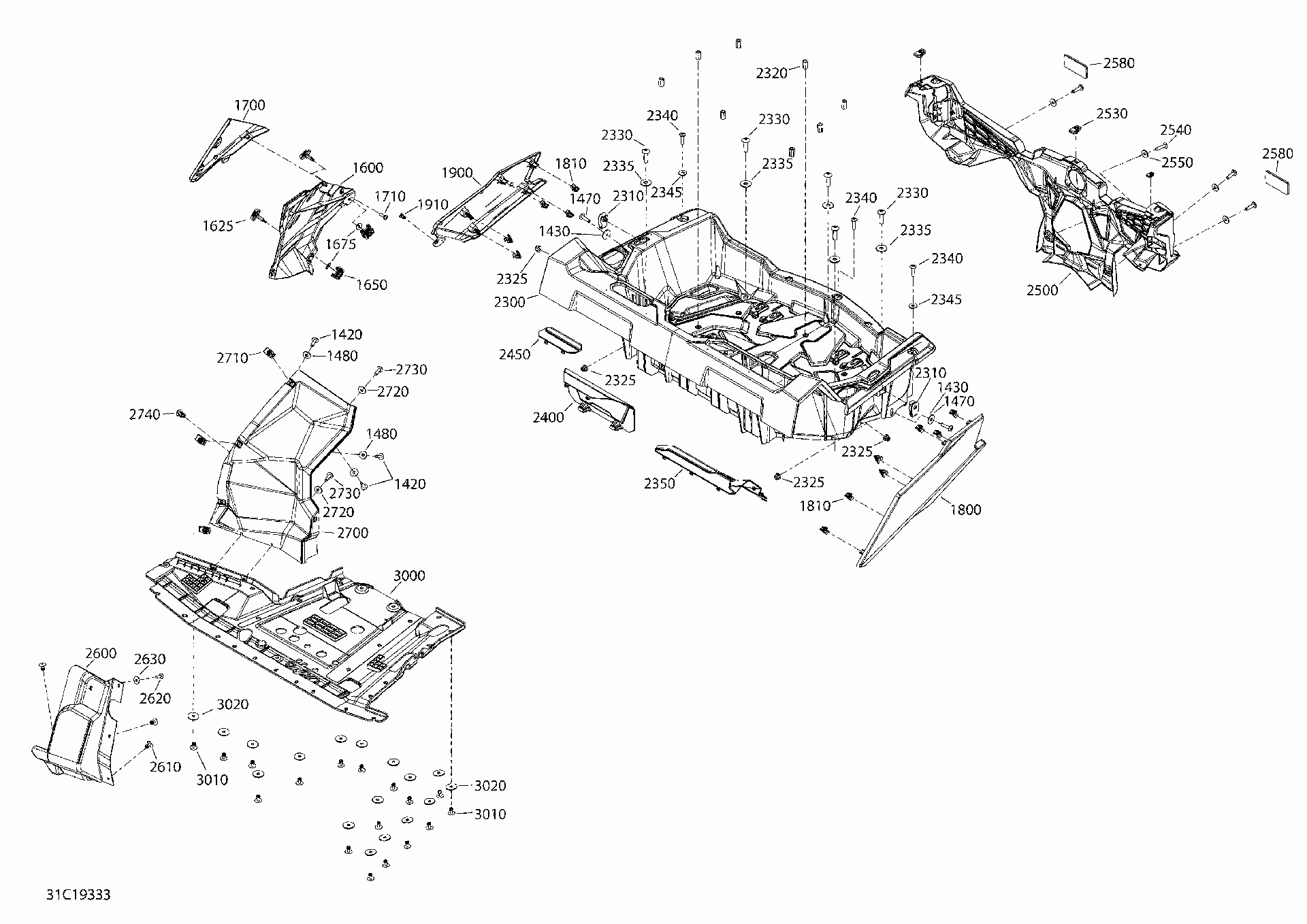

09- body maverick sport - 1000r - red - rear section

Cam-am 001 - Maverick Sport 1000R - DPS - T1B Series
Cam-am
#oem кодцена
1420
250000722
Torx Screw M6 X 20
1430
250200162
Flat Washer M6.6 X 22
1470
250000807
Torx Truss Screw M6 X 25
1480
234062670
Flat Washer, Stainless
1600
705011338
Air Filter Acces Door
1625
708400278
Quarter Turn
1650
708400285
Зажим
1675
708400286
Шайба
1700
705012623
Red, Acces Panel Trim
1710
250000720
Torx Screw K50 X 16
1800
705012427
Red, LH Rear Cargo Trim
1810
517306478
Зажим
1900
705012428
Red, RH Rear Cargo Trim
1910
293150230
Tuflok Plastic Rivet
2300
705011337
Rear Box
2310
250100177
Panel nut M6
2320
250100207
Hex. Coupling Nut M6
2325
233261466
Hex. Flanged Elastic Nut M6
2330
250000745
Hex Torx Truss M8 X30
2335
234082670
Flat Washer, Stainless
2340
250000807
Torx Truss Screw M6 X 25
2345
234062670
Flat Washer, Stainless
2350
705011339
Cvt Air Inlet Cover
2450
705011340
Air Intake Cover
2500
705011426
Rear Fascia
2530
250000957
Extruded Panel Nut M6
2540
250000807
Torx Truss Screw M6 X 25
2550
234062670
Flat Washer, Stainless
2580
520001820
Red Reflector
2610
293150104
Pop Rivet 3/16
2620
250000720
Torx Screw K50 X 16
2630
250200025
Washer M5
2700
705011513
RH Rear Inner Fender
2710
250000957
Extruded Panel Nut M6
2720
234062670
Flat Washer, Stainless
2730
250000722
Torx Screw M6 X 20
2740
293150230
Tuflok Plastic Rivet
3000
705011429
Rear Skid Plate
3010
293150087
Pop Rivet 3/16?
3020
224060251
Шайба
