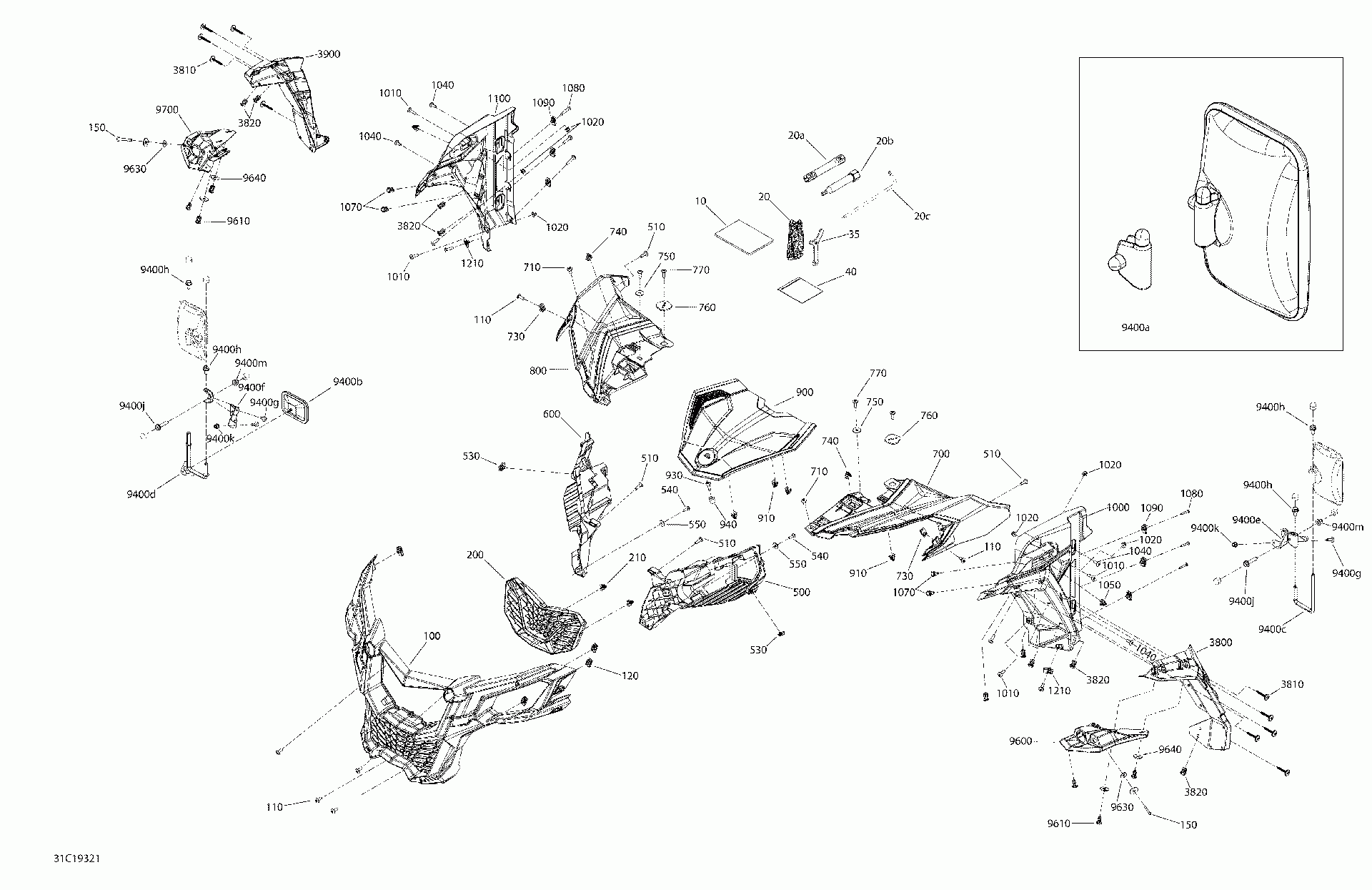

09- body maverick trail - 800 - white - front section

Cam-am 001 - Maverick Trail 800 - BASE - T2B Series
Cam-am
#oem кодцена
10
219001967
Operator Guide 2019 English
20
704700169
Комплект инструментов
20a
529000085
Socket Wrench 14/16MM
20b
529000088
Driven Open Tool
20c
708200340
Torx Key T30
35
529000057
Adjustment Wrench
40
219400038
Waranty Form
100
705011317
Front Fascia
110
250000721
Torx Screw
120
250000957
Extruded Panel Nut M6
150
250000748
Torx Screw M6 X 45
200
705011318
Fascia Removable Grid
210
517306478
Зажим
500
705011319
LH Headlamp Structure
510
250000722
Torx Screw M6 X 20
530
250000957
Extruded Panel Nut M6
540
250000720
Torx Screw K50 X 16
550
234062670
Flat Washer, Stainless
600
705011320
RH Headlamp Structure
710
250000721
Torx Screw
730
250000957
Extruded Panel Nut M6
740
517306478
Зажим
750
250200162
Flat Washer M6.6 X 22
760
705003841
Support Plate
770
250000722
Torx Screw M6 X 20
900
705011322
Removable Hood
910
517306478
Зажим
930
250000807
Torx Screw M6 X 25
940
705502616
Втулка
1000
705011323
LH Front Mudguard
1010
250000712
Torx Screw M6 X 20
1020
233261494
Hex. Elastic Flanged Nut M6
1040
250000721
Torx Screw
1050
517306478
Зажим
1070
293150230
Tuflok Plastic Rivet
1080
250000867
Torx-truss M6 X 35
1090
250000957
Extruded Panel Nut M6
1100
705011324
RH Front Mudguard
1210
250000957
Extruded Panel Nut M6
3800
705011325
LH FRONT 60
3810
250000840
Torx-Screw Truss Head PT.K50 X 40
3820
293150230
Tuflok Plastic Rivet
3900
705011326
RH FRONT 60
9400a
705011497
Зеркало
9400b
705013819
Wide Angle Lateral Mirror
9400c
705013823
LH Mirror Rod Assembly
9400d
705013817
Mirror Rod
9400e
705012897
LH Mirror Support
9400f
705012898
RH Mirror Support
9400g
250000350
Torx Truss Screw M6 X 20
9400h
207581644
Hex. Flanged Screw M8 X 16, Scotch Grip
9400j
207683544
Hex. Flanged Screw M8 X 35
9400k
233261494
Hex. Elastic Flanged Nut M6
9400m
233281414
Hex. Flanged Elastic Nut M8
9600
705012791
LH Front Flasher Support Model T
9610
293150230
Tuflok Plastic Rivet
9630
234062670
Flat Washer, Stainless
9640
234082670
Flat Washer, Stainless
9700
705012792
RH Front Flasher Support Model T
