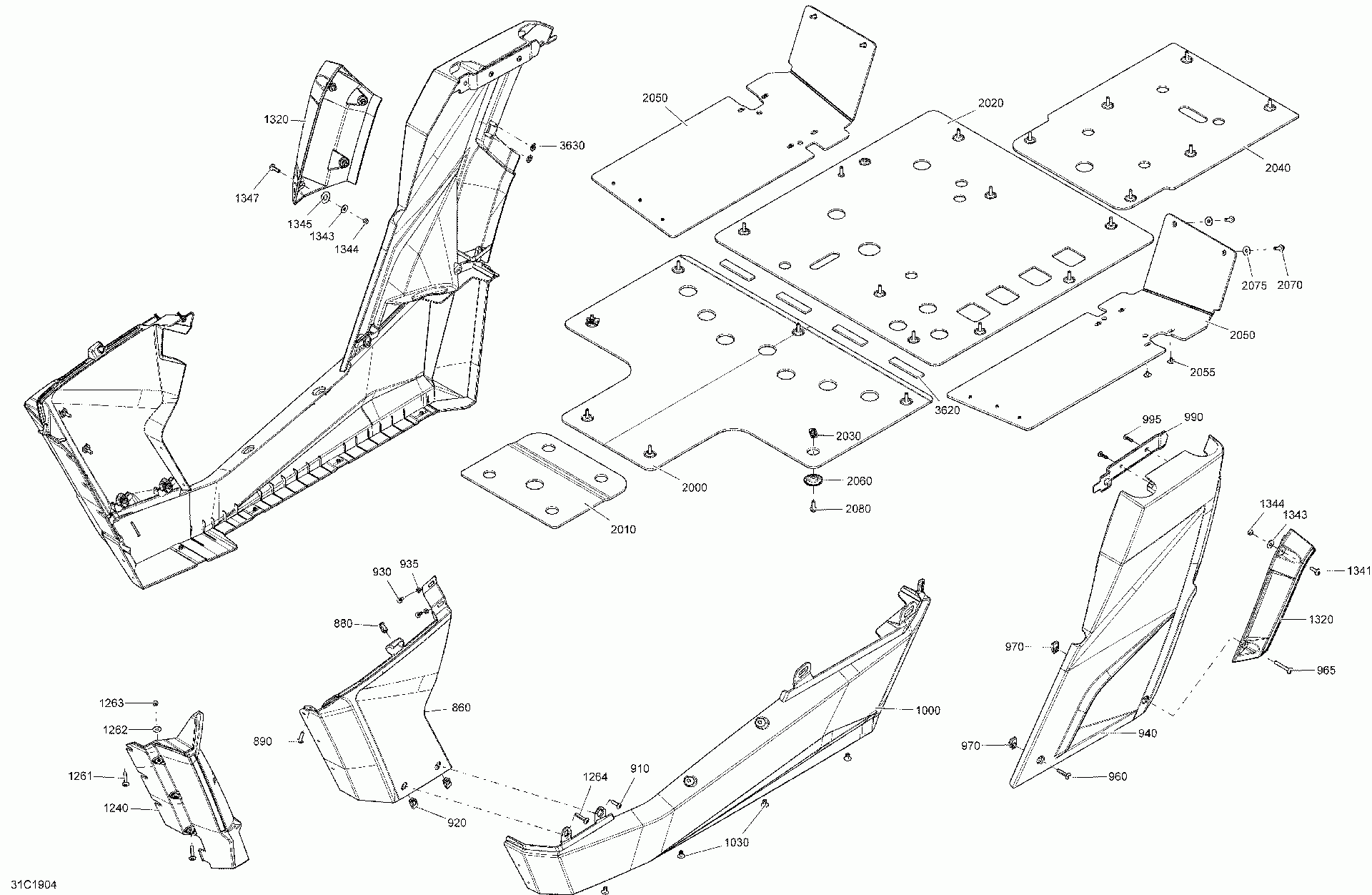

09- body and accessories commander - central panel - carbon black

Cam-am 002 - Commander 1000R EFI - North America
Cam-am
#oem кодцена
860
705013671
Carbon Black, LH Front Body Panel
860
705013672
Carbon Black, RH Front Body Panel
880
293150230
Tuflok Plastic Rivet
890
250000722
Torx Screw M6 X 20
900
250000957
Extruded Panel Nut M6
910
250000722
Torx Screw M6 X 20
920
250000957
Extruded Panel Nut M6
930
250000760
Torx Screw Truss Head K50X20 T20
935
234051410
Flat Washer M5
940
705013723
Carbon Black, LH Rear Boy Panel
940
705013724
Carbon Black, RH Rear Body Panel
960
250000843
Torx Truss Screw M6 X 30
965
250000748
Torx Screw M6 X 45
970
250000957
Extruded Panel Nut M6
990
705007916
Support Skid Plate
995
250000760
Torx Screw Truss Head K50X20 T20
1000
705006993
LH Middle Side Pannel
1000
705006994
RH Middle Side Pannel
1030
293150104
Pop Rivet 3/16
1200
705008666
Black, LH Upper Front Mudguard
1220
705008667
Black, RH Upper Front Mudguard
1221
250000842
Torx Screw M6 X 30 Stainless
1222
234062670
Flat Washer, Stainless
1223
232561434
Elastic Stop Nut M6
1240
705008668
Black, LH Lower Mudguard
1240
705008669
Black, RH Lower Mudguard
1261
250000842
Torx Screw M6 X 30 Stainless
1262
234062670
Flat Washer, Stainless
1263
232561434
Elastic Stop Nut M6
1264
250000842
Torx Screw M6 X 30 Stainless
1320
705008670
Black, LH Rear Lower Mudguard
1320
705008672
RH Rear Lower Black Mudguard
1341
250000712
Torx Screw M6 X 20
1343
234062670
Flat Washer, Stainless
1344
232561434
Elastic Stop Nut M6
1345
250200086
Шайба
1347
250000712
Torx Screw M6 X 20
2000
705007055
Middle Protector Plate
2020
705007056
Rear Protector Plate
2040
705007227
Rear Protector Plate
2050
705007038
RH Lateral Skid Plate
2055
293150104
Pop Rivet 3/16
2060
705007171
Крышка крыльчатки
2070
210262050
Washer Head Hexagonal Screw
2075
250200097
Шайба
2080
210262050
Washer Head Hexagonal Screw
3620
291001932
Подушка изолирующая
3700
250100031
Push Nut
