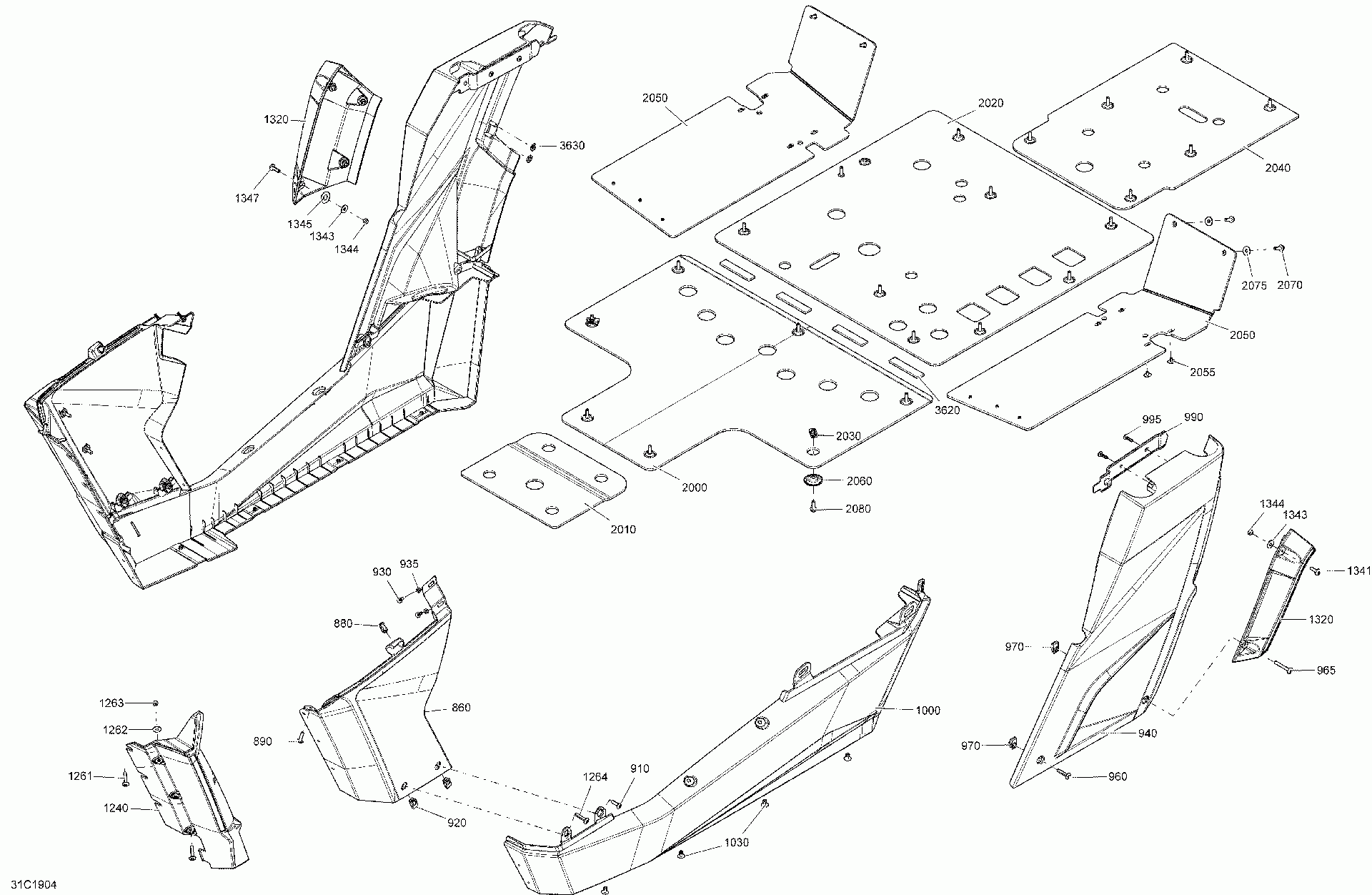

09- body and accessories commander - central panel - squadron green

Cam-am 002 - Commander 1000R EFI - North America
Cam-am
#oem кодцена
880
293150230
Tuflok Plastic Rivet
890
250000722
Torx Screw M6 X 20
900
250000957
Extruded Panel Nut M6
910
250000722
Torx Screw M6 X 20
920
250000957
Extruded Panel Nut M6
930
250000760
Torx Screw Truss Head K50X20 T20
935
234051410
Flat Washer M5
960
250000843
Torx Truss Screw M6 X 30
965
250000748
Torx Screw M6 X 45
970
250000957
Extruded Panel Nut M6
990
705007916
Support Skid Plate
995
250000760
Torx Screw Truss Head K50X20 T20
1000
705006991
LH Lateral Middle Panel
1000
705006992
RH Lateral Middle Panel
1030
293150104
Pop Rivet 3/16
2000
705007055
Middle Protector Plate
2020
705007056
Rear Protector Plate
2040
705007227
Rear Protector Plate
2050
705007038
RH Lateral Skid Plate
2055
293150104
Pop Rivet 3/16
2060
705007171
Крышка крыльчатки
2070
210262050
Washer Head Hexagonal Screw
2075
250200097
Шайба
2080
210262050
Washer Head Hexagonal Screw
3620
291001932
Подушка изолирующая
3700
250100031
Push Nut
860
705011538
Squadron Green, LH Front Lateral Panel
860
705011539
Squadron Green, RH Front Lateral Panel
940
705011545
Squadron Green, LH Rear Lateral Panel
940
705011550
Squadron Green, RH Rear Lateral Panel
