09- seat commander

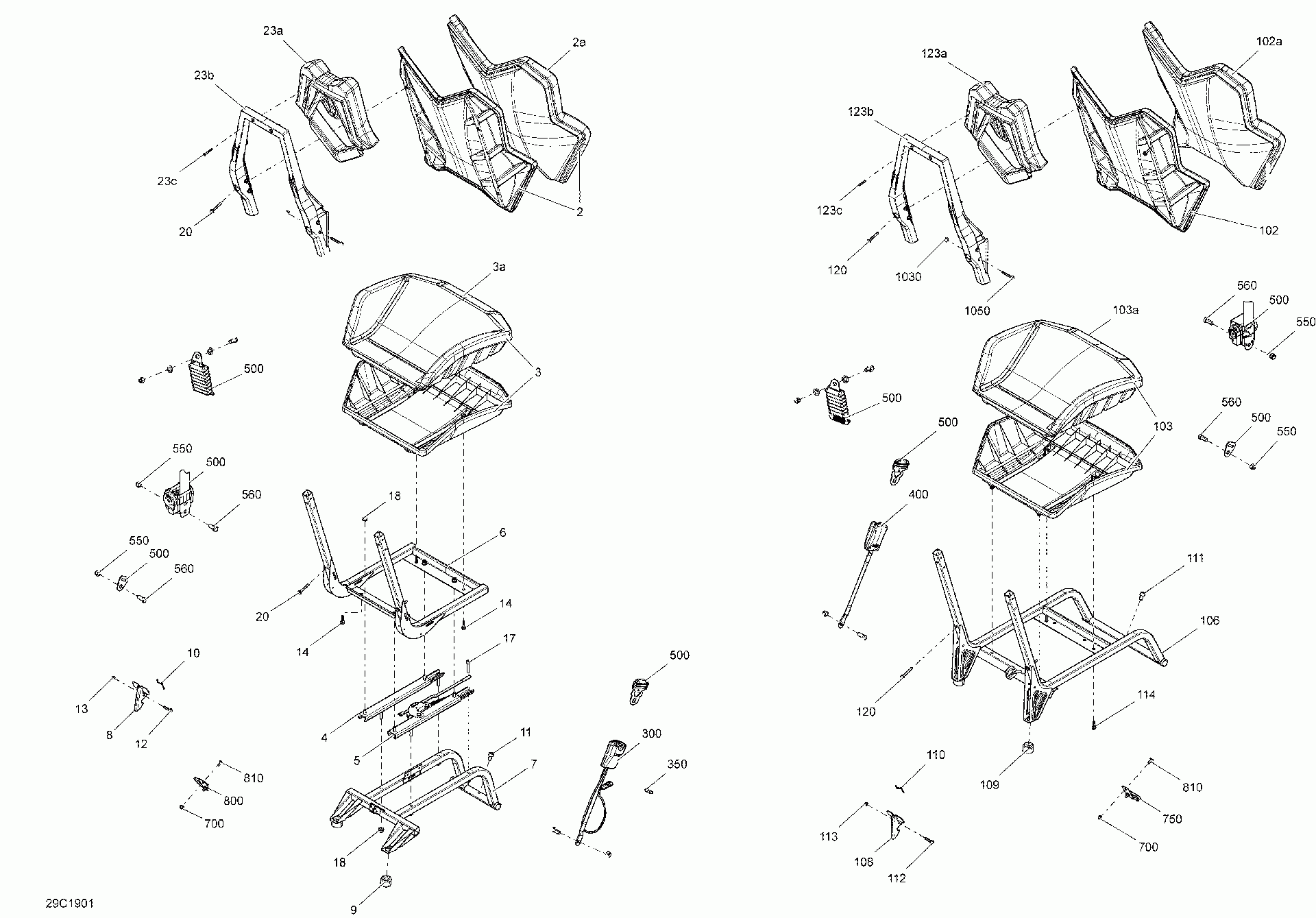

Cam-am 002 - Commander 1000R EFI - North America
Cam-am
#oem кодцена
2a
708000675
Backrest Cover
2a
708002248
Backrest Cover Black
2a
708002618
Backrest Cover
3a
708001103
Seat Cover
3a
708002249
Cushion Cover Black
3a
708002619
Seat Cover
4
708000848
LH Rail
5
708001739
RH Rail
6
708001356
Operator Seat Frame
7
708000667
Seat Member
8
708001355
Seat Latch
9
708001671
Rubber Bumper
10
708000921
Пружина
11
205501644
Socket Screw M10 X 16
12
207563034
Hex. Flanged Screw M6 X 30, Scotch Grip
13
232561600
Hex. Elastic Stop Nut M6
14
207562544
Hex. Flanged Screw M6X1.0X25
17
205084044
Socket Head Screw M8 X 1.25 X 40
18
233281414
Hex. Flanged Elastic Nut M8 X 1.25
20
250000672
Hex. Flange Screw M6
23a
708001074
Head Rest
23b
708001245
Seat Support
23c
250000897
Hex. Flange Screw K50 X 40
102a
708000675
Backrest Cover
102a
708002248
Backrest Cover Black
102a
708002618
Backrest Cover
103a
708001103
Seat Cover
103a
708002249
Cushion Cover Black
103a
708002619
Seat Cover
106
708001357
Passenger Seat Frame
108
708001355
Seat Latch
109
708001671
Rubber Bumper
110
708000921
Пружина
111
205501644
Socket Screw M10 X 16
112
207563034
Hex. Flanged Screw M6 X 30, Scotch Grip
113
232561600
Hex. Elastic Stop Nut M6
114
207562544
Hex. Flanged Screw M6X1.0X25
120
250000672
Hex. Flange Screw M6
123a
708001074
Head Rest
123b
708001245
Seat Support
123c
250000897
Hex. Flange Screw K50 X 40
300
708002061
Driver Buckle Side
400
708002062
Passenger Buckle Side
500
708002644
Safety Belt
550
250100135
Nylon Insert Hex. Lock Nut 7/16-20
700
250100199
Вставка
750
708002303
Retaining Rod RH
800
708002302
Retaining Rod LH
810
250000717
Torx Head Screw M6 X 1.0 X 16
900
250100135
Nylon Insert Hex. Lock Nut 7/16-20
910
708000890
Safety Belt Screw
920
708000891
Position Washer
930
233161464
Hex. Elastic Flange Nut M6
940
250000672
Hex. Flange Screw M6
