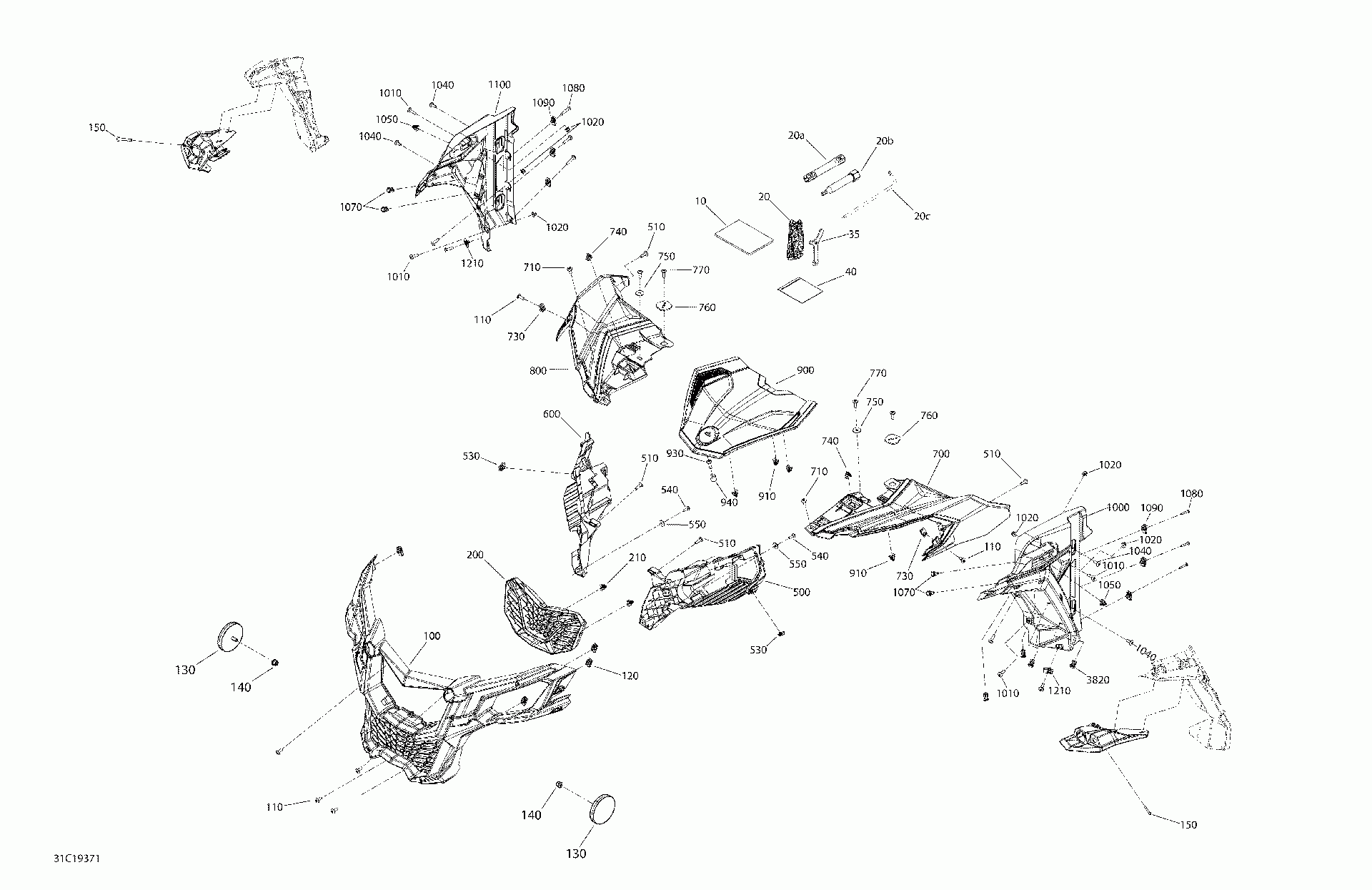

09- body maverick trail - 1000 - front section

Cam-am 002 - Maverick Trail 1000 - BASE_DPS - North America
Cam-am
#oem кодцена
10
219001967
Operator Guide 2019 English
20
704700169
Комплект инструментов
20a
529000085
Socket Wrench 14/16MM
20b
529000088
Driven Open Tool
20c
708200340
Torx Key T30
35
529000057
Adjustment Wrench
40
219400038
Waranty Form
100
705011317
Front Fascia
110
250000721
Torx Screw
120
250000957
Extruded Panel Nut M6
130
705011222
Amber Reflector
140
233251494
Elastic Flanged Nut M5
150
250000748
Torx Screw M6 X 45
200
705011318
Fascia Removable Grid
210
517306478
Зажим
500
705011319
LH Headlamp Structure
510
250000722
Torx Screw M6 X 20
530
250000957
Extruded Panel Nut M6
540
250000720
Torx Screw K50 X 16
550
234062670
Flat Washer, Stainless
600
705011320
RH Headlamp Structure
710
250000721
Torx Screw
730
250000957
Extruded Panel Nut M6
740
517306478
Зажим
750
250200162
Flat Washer M6.6 X 22
760
705003841
Support Plate
770
250000722
Torx Screw M6 X 20
900
705011322
Removable Hood
910
517306478
Зажим
930
250000807
Torx Screw M6 X 25
940
705502616
Втулка
1000
705011323
LH Front Mudguard
1010
250000712
Torx Screw M6 X 20
1020
233261494
Hex. Elastic Flanged Nut M6
1040
250000721
Torx Screw
1050
517306478
Зажим
1070
293150230
Tuflok Plastic Rivet
1080
250000867
Torx-truss M6 X 35
1090
250000957
Extruded Panel Nut M6
1100
705011324
RH Front Mudguard
1210
250000957
Extruded Panel Nut M6
