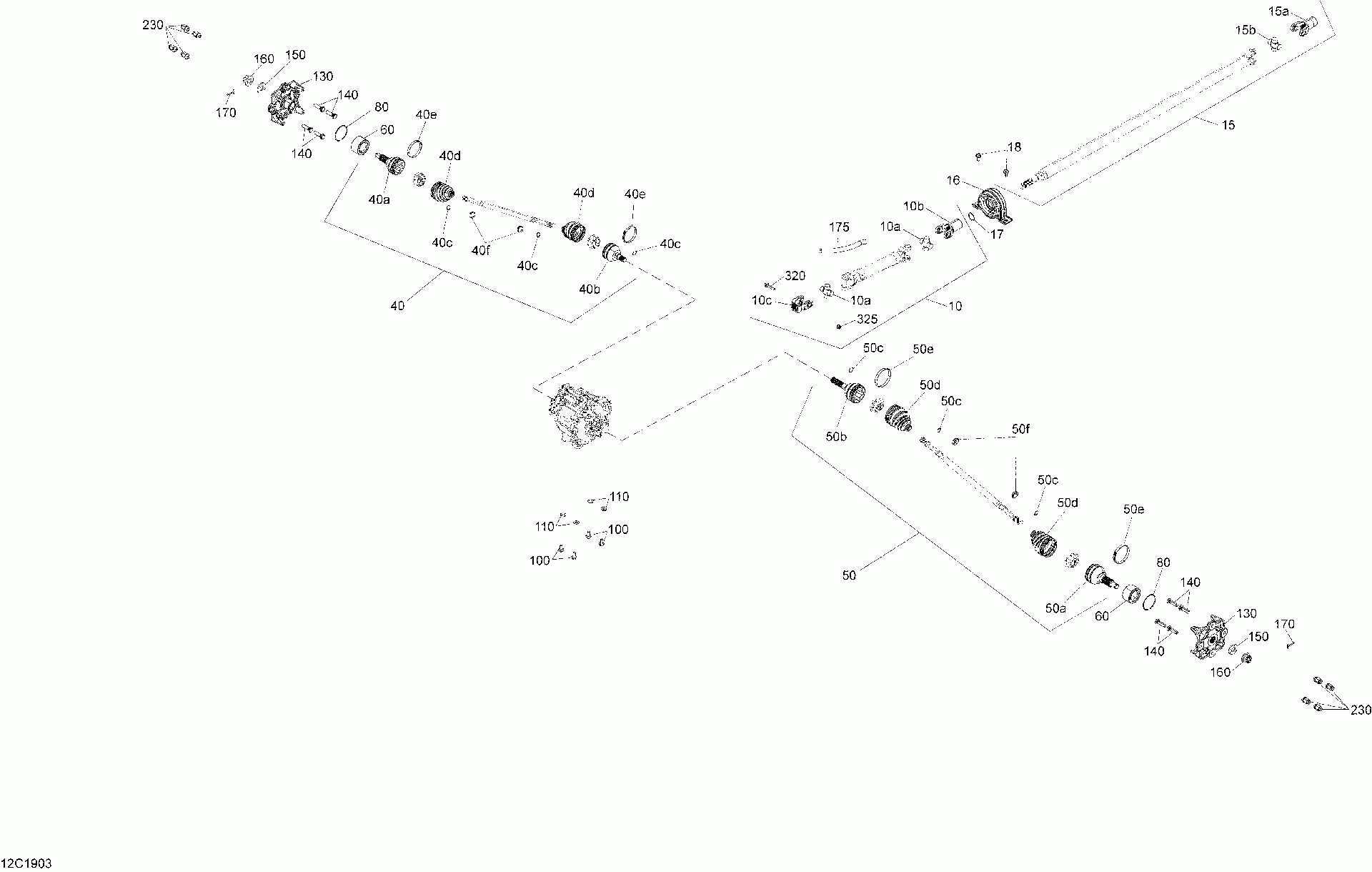

07- front drive maverick - main parts - package std

Cam-am 002 - Maverick Turbo - North America
Cam-am
#oem кодцена
10a
715900402
J-Joint Cross Kit
10b
715900524
Fixed Yoke Joint
10c
715900401
Вилка карданного вала
15a
715900401
Вилка карданного вала
15b
715900402
J-Joint Cross Kit
16
705401938
Подшипник
17
293370098
Стопорное кольцо
18
207502046
Hex. Flanged Screw M10 X 20
40
705402098
Half Shaft RH
40a
715900452
CV Joint
40b
715900454
RH Plunging Joint
40c
705401349
Circlip Joint
40d
705401354
Boot Kit, Wheel Side
40e
715900260
Oetiker Clamp, Large
40f
715900261
Oetiker Clamp, Small
50
705402097
Half Shaft LH
50a
715900452
CV Joint
50b
715900453
LH Plunging Joint
50c
705401349
Circlip Joint
50d
705401354
Boot Kit, Wheel Side
50e
715900260
Oetiker Clamp, Large
50f
715900261
Oetiker Clamp, Small
60
293350129
Подшипник
80
293370102
СТОПОРНОЕ КОЛЬЦО
100
207502046
Hex. Flanged Screw M10 X 20
110
234201474
Conical Spring Washer 10 mm
130
705502122
Wheel Hub
140
250300625
Wheel Stud M12X1.5
150
250200170
Conical Spring Washer M20
160
250100193
Castle Nut M20
170
250400084
Шплинт
185
518321570
Open Clamp
186
293150104
Pop Rivet 3/16
230
250100196
Black Wheel Nut M12 X 1.50
320
250001050
Hex. Flanged Screw M8 X 42
325
233281416
Hex. Elastic Flanged Nut M8
