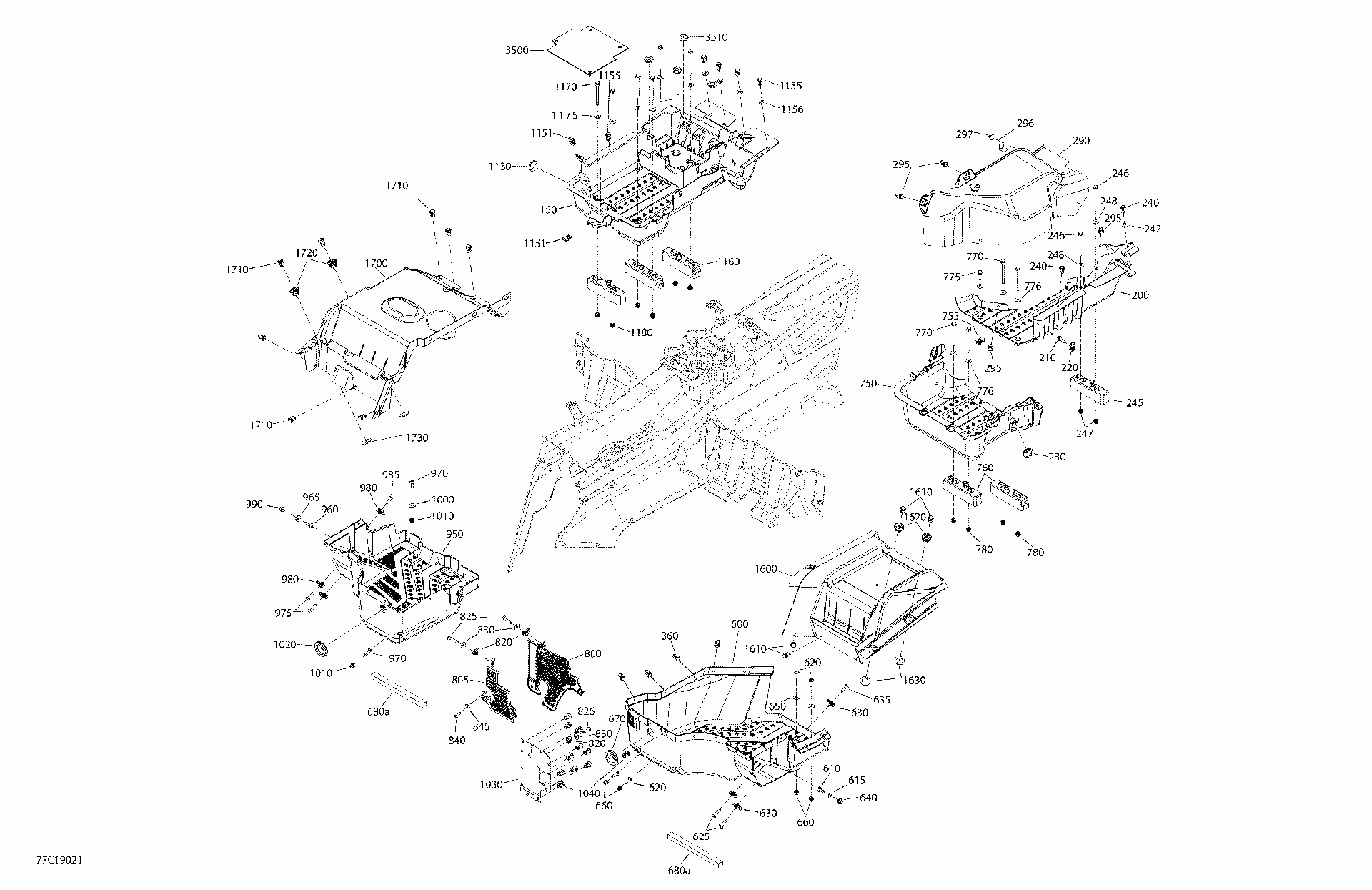

09- cab interior commander max - lower section

Cam-am 003 - Commander MAX 1000R EFI - International
Cam-am
#oem кодцена
200
707900387
Under cover
210
207662054
Hex. Flanged Screw M6 X 20
220
250000957
Extruded Panel Nut M6
230
293250242
Rubber Cover
240
293150230
Tuflok Plastic Rivet
242
506151252
Шайба
245
707900099
Support Plate
246
207667056
Hex. Flange Screw M6 X 70
247
250100199
Вставка
248
234062670
Flat Washer, Stainless
290
707900388
Rear Floor cap
295
293150230
Tuflok Plastic Rivet
296
705205445
Insert Support
297
293150103
Pop Rivet 3/16
360
293150230
Tuflok Plastic Rivet
600
707900022
LH Lower Floor
610
250000712
Torx Screw M6 X 20
615
234062670
Flat Washer, Stainless
620
250000722
Torx Screw M6 X 20
625
250000807
Torx Screw M6 X 25
630
250000957
Extruded Panel Nut M6
635
250000722
Torx Screw M6 X 20
640
233261494
Hex. Elastic Flanged Nut M6
650
234062670
Flat Washer, Stainless
660
250100199
Вставка
670
293250242
Rubber Cover
680a
293250362
Anneau ?tanche *Seal-Tray
750
707900331
Rear Floor
755
250000957
Extruded Panel Nut M6
760
707900099
Support Plate
770
207667056
Hex. Flange Screw M6 X 70
775
207662054
Hex. Flanged Screw M6 X 20
776
234062670
Flat Washer, Stainless
780
250100199
Вставка
800
707900178
Grill
805
707900180
Grill
820
250000957
Extruded Panel Nut M6
825
250000843
Torx Truss Screw M6 X 30
826
250000722
Torx Screw M6 X 20
830
234062670
Flat Washer, Stainless
840
250000720
Torx Screw K50 X 16
845
250200025
Washer M5
950
707900023
RH Lower Floor
960
250000712
Torx Screw M6 X 20
965
234062670
Flat Washer, Stainless
970
250000722
Torx Screw M6 X 20
975
250000807
Torx Screw M6 X 25
980
250000957
Extruded Panel Nut M6
985
250000722
Torx Screw M6 X 20
990
233261494
Hex. Elastic Flanged Nut M6
1000
234062670
Flat Washer, Stainless
1010
250100199
Вставка
1020
293250242
Rubber Cover
1030
707900192
Deflector
1040
293150230
Tuflok Plastic Rivet
1130
293250242
Rubber Cover
1150
707900670
RH Lower Rear Floor
1151
250000957
Extruded Panel Nut M6
1155
293150230
Tuflok Plastic Rivet
1156
506151252
Шайба
1160
707900099
Support Plate
1170
207667056
Hex. Flange Screw M6 X 70
1175
234062670
Flat Washer, Stainless
1180
250100199
Вставка
1600
707900130
Under Seat Cover
1610
293150230
Tuflok Plastic Rivet
1620
707900133
Вставка
1630
503189273
Шайба
1700
707900006
RH Under Seat Plate
1710
293150230
Tuflok Plastic Rivet
1720
707900133
Вставка
1730
503189273
Шайба
3500
707900163
Battery Cover
3510
705003264
Уплотнитель резиновый
3600
250000742
Torx Screw M5 X 14
3610
250200040
Шайба
3615
207562054
Flanged Hex. Screw S.GRIP M6 X 20
3620
207682044
Hex. Flanged Screw M8 X 20
3625
233281414
Hex. Flanged Elastic Nut M8
