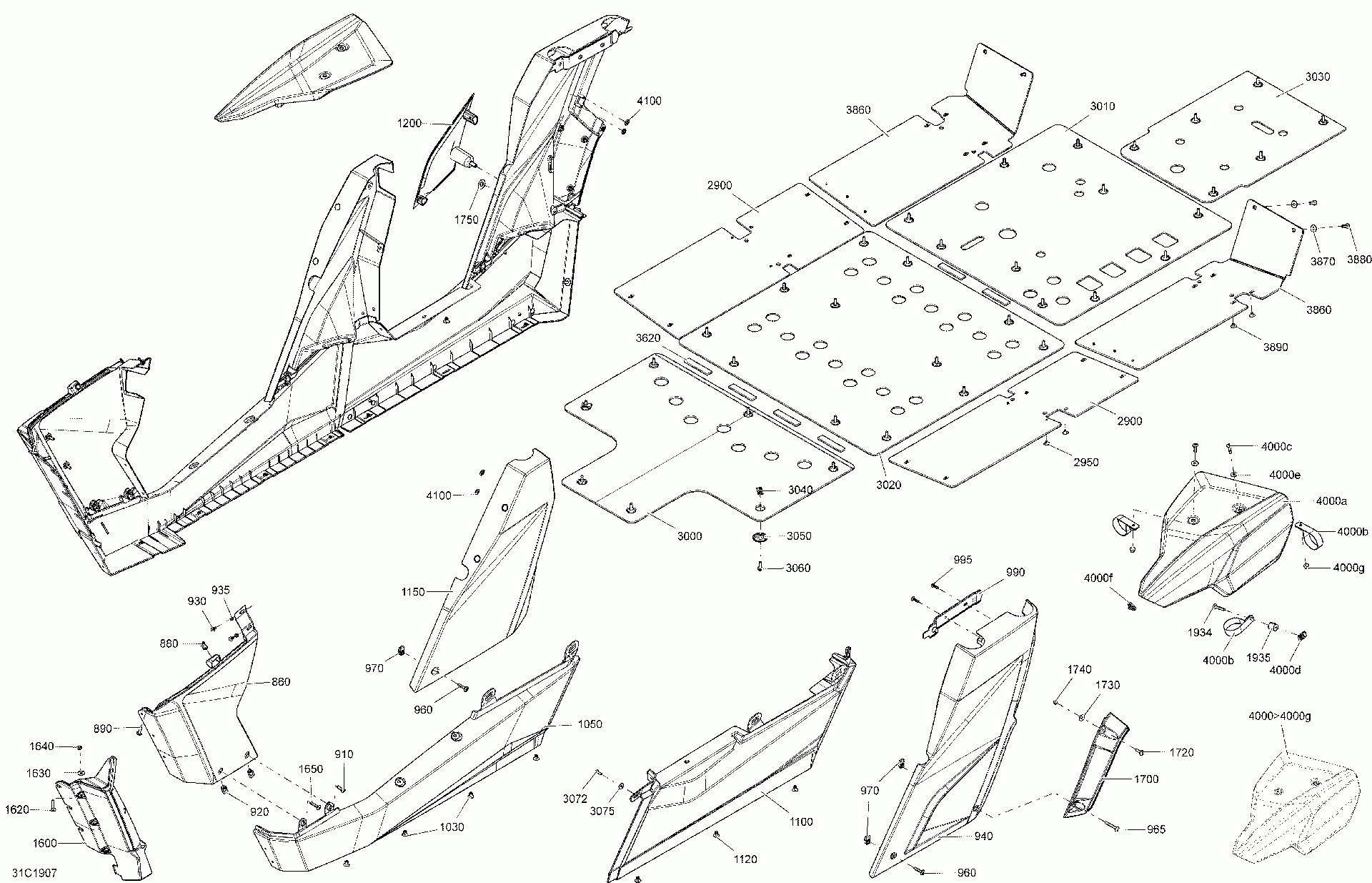

09- body and accessories commander max - central panel - squadron green

Cam-am 003 - Commander MAX 800R EFI - North America
Cam-am
#oem кодцена
860
705011538
Squadron Green, LH Front Lateral Panel
870
705011539
Squadron Green, RH Front Lateral Panel
880
293150230
Tuflok Plastic Rivet
890
250000722
Torx Screw M6 X 20
900
250000957
Extruded Panel Nut M6
910
250000722
Torx Screw M6 X 20
915
250000722
Torx Screw M6 X 20
920
250000957
Extruded Panel Nut M6
930
250000760
Torx Screw Truss Head K50X20 T20
935
234051410
Flat Washer M5
940
705011545
Squadron Green, LH Rear Lateral Panel
950
705011567
Squadron Green, RH Panel
960
250000843
Torx Truss Screw M6 X 30
965
250000748
Torx Screw M6 X 45
970
250000957
Extruded Panel Nut M6
990
705007916
Support Skid Plate
995
250000760
Torx Screw Truss Head K50X20 T20
1030
293150104
Pop Rivet 3/16
1050
705005423
Black, LH Lower Panel
1060
705005424
Black, RH Lower Panel
1100
705005425
Black, LH Rear Lower Panel
1110
705005426
Black, RH Rear Lower Panel
1120
293150104
Pop Rivet 3/16
1150
705011569
Squadron Green, LH Central Panel
1160
705011570
Squadron Green, RH Central Panel
1200
705011573
Squadron Green, Panel Cover
2900
705008421
Side Protector Plate
2950
293150104
Pop Rivet 3/16
3000
705007055
Middle Protector Plate
3010
705007056
Rear Protector Plate
3020
705009447
Skid Plate
3030
705007227
Rear Protector Plate
3040
250000957
Extruded Panel Nut M6
3050
705007171
Крышка крыльчатки
3060
210262050
Washer Head Hexagonal Screw
3072
250000720
Torx Screw K50 X 16
3075
250200025
Washer M5
3620
291001932
Подушка изолирующая
3860
705007038
RH Lateral Skid Plate
3870
250200097
Шайба
3880
210262050
Washer Head Hexagonal Screw
3890
293150104
Pop Rivet 3/16
4100
250100031
Push Nut
