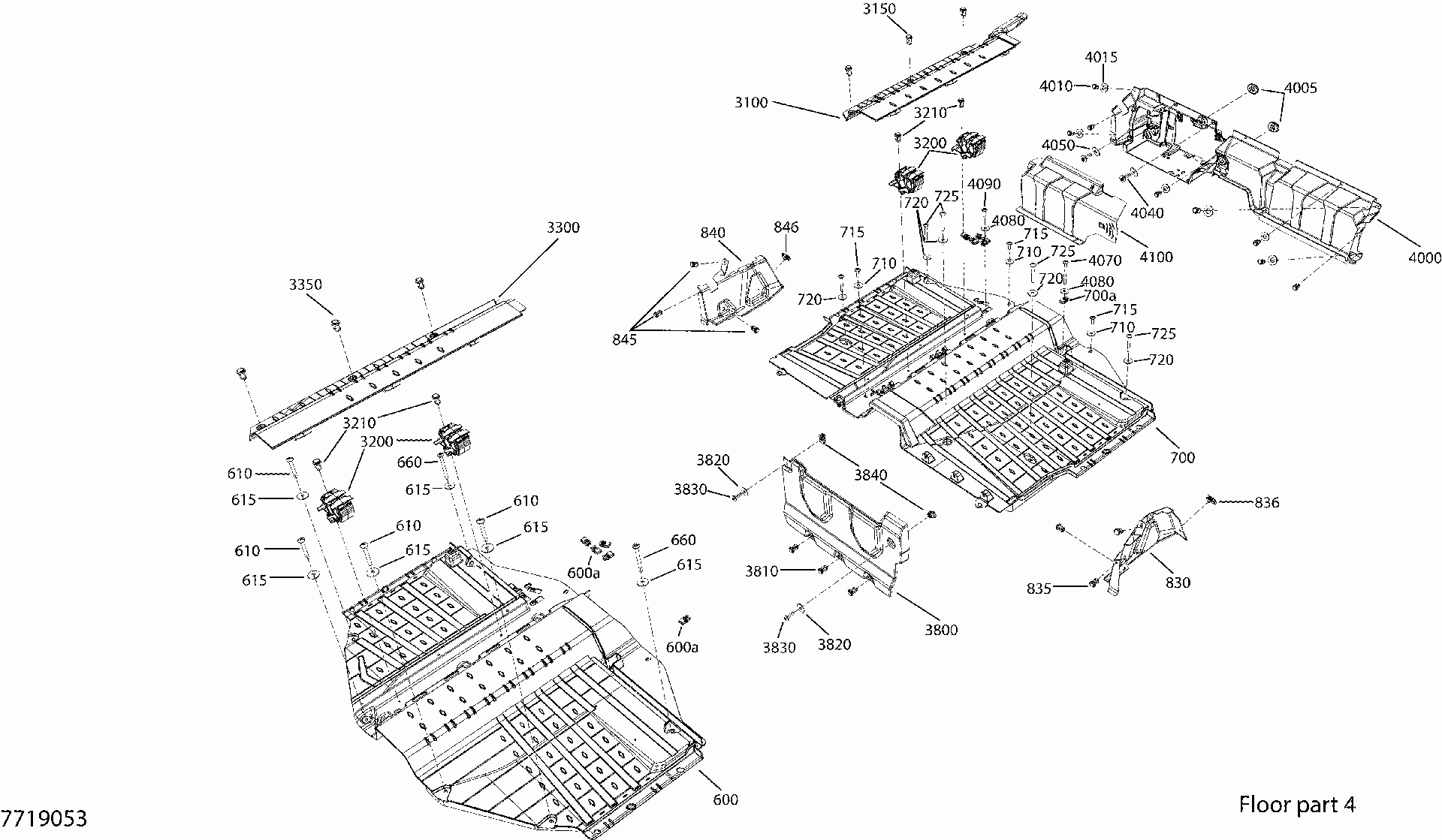

09- cab interior - except xt cab - floor section

Cam-am 003 - Traxter MAX HD8 - International
Cam-am
#oem кодцена
600
707900431
Floor
600a
250000957
Extruded Panel Nut M6
610
250000868
Torx Truss M6 X 50
615
250200162
Flat Washer M6.6 X 22
660
250000954
Torx Screw M6 X 70
700a
250000957
Extruded Panel Nut M6
710
234062670
Flat Washer, Stainless
715
250000722
Torx Screw M6 X 20
720
250200162
Flat Washer M6.6 X 22
725
250000868
Torx Truss M6 X 50
830
707900443
Lower Cover LH
835
293150230
Tuflok Plastic Rivet
836
250000957
Extruded Panel Nut M6
840
707900444
Lower Cover RH
845
293150230
Tuflok Plastic Rivet
846
250000957
Extruded Panel Nut M6
3100
707900324
Floor Cover
3150
293150230
Tuflok Plastic Rivet
3200
707900325
Hose Support
3210
293150230
Tuflok Plastic Rivet
3300
707900413
Floor Cover
3350
293150230
Tuflok Plastic Rivet
3800
707900426
Rear Panel
3810
293150230
Tuflok Plastic Rivet
3820
250200162
Flat Washer M6.6 X 22
3830
250000722
Torx Screw M6 X 20
3840
250000957
Extruded Panel Nut M6
4000
707900228
Rear Lower Bulkhead
4005
705005156
Oval Washer
4010
293150230
Tuflok Plastic Rivet
4015
503192494
Шайба
4040
250000722
Torx Screw M6 X 20
4050
234062670
Flat Washer, Stainless
4070
250000954
Torx Screw M6 X 70
4080
250200162
Flat Washer M6.6 X 22
4090
250000722
Torx Screw M6 X 20
4100
707900282
Battery Cover
