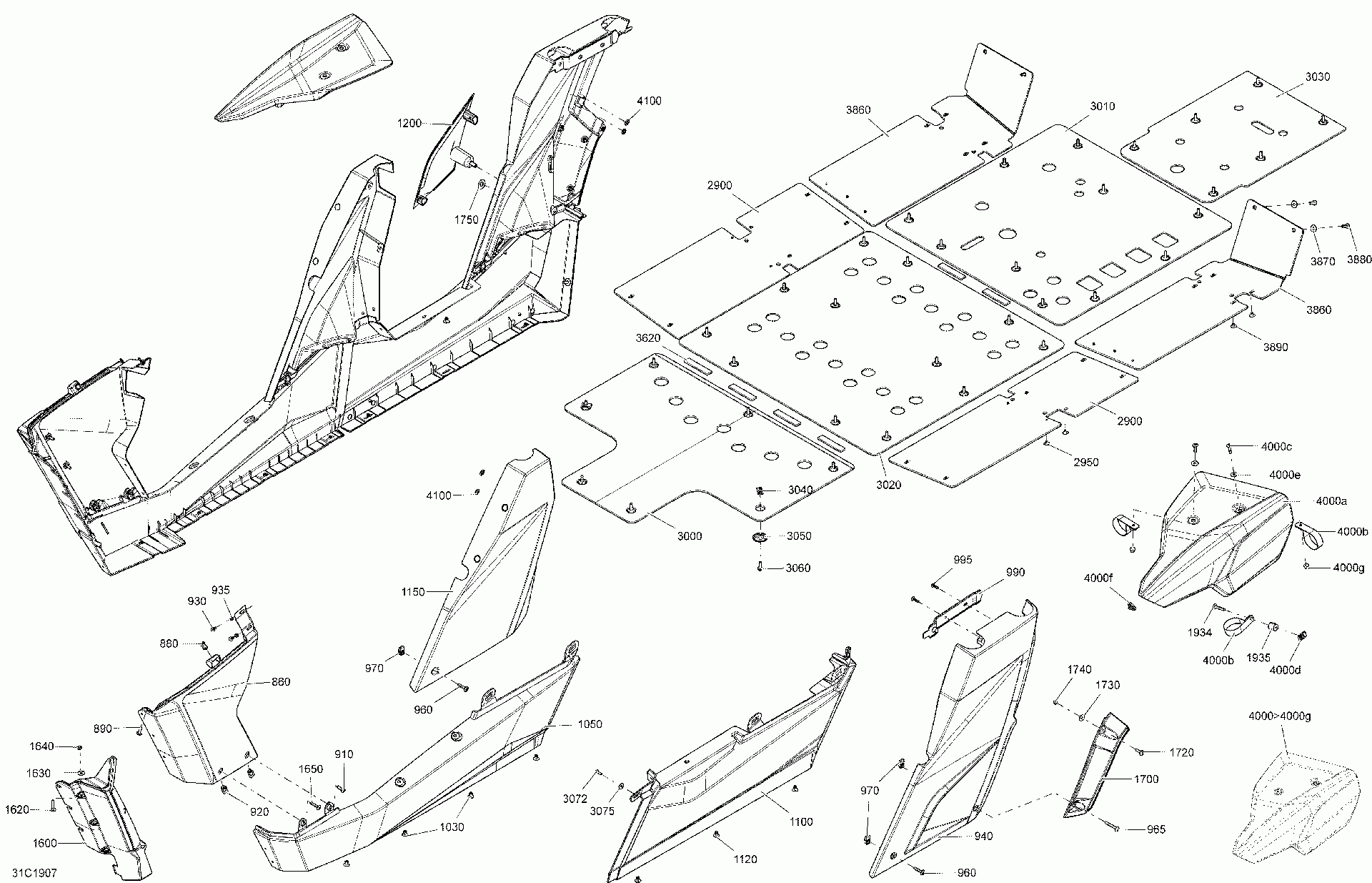

09- body and accessories commander max - central panel - camo

Cam-am 004 - Commander MAX 1000R EFI - North America
Cam-am
#oem кодцена
860
705009590
Camo, LH Front Lateral Panel
870
705009591
Camo, RH Front Lateral Panel
880
293150230
Tuflok Plastic Rivet
890
250000722
Torx Screw M6 X 20
900
250000957
Extruded Panel Nut M6
910
250000722
Torx Screw M6 X 20
920
250000957
Extruded Panel Nut M6
930
250000760
Torx Screw Truss Head K50X20 T20
935
234051410
Flat Washer M5
940
705009596
Camo, LH Rear Lateral Panel
950
705009602
Camo RH Rear Lateral Panel
960
250000843
Torx Truss Screw M6 X 30
965
250000748
Torx Screw M6 X 45
970
250000957
Extruded Panel Nut M6
990
705007916
Support Skid Plate
995
250000760
Torx Screw Truss Head K50X20 T20
1030
293150104
Pop Rivet 3/16
1050
705007035
Black, LH Lower Panel
1060
705007036
Black, RH Lower Panel
1100
705005425
Black, LH Rear Lower Panel
1110
705005426
Black, RH Rear Lower Panel
1120
293150104
Pop Rivet 3/16
1150
705009611
Camo LH Center Cage Panel
1160
705009614
Camo, RH Center Cage Panel
1200
705009619
Camo, RH Panel Cover
1600
705008668
Black, LH Lower Mudguard
1610
705008669
Black, RH Lower Mudguard
1620
250000842
Torx Screw M6 X 30 Stainless
1630
234062670
Flat Washer, Stainless
1640
232561434
Elastic Stop Nut M6
1650
250000842
Torx Screw M6 X 30 Stainless
1700
705008670
Black, LH Rear Lower Mudguard
1710
705008672
RH Rear Lower Black Mudguard
1720
250000712
Torx Screw M6 X 20
1730
234062670
Flat Washer, Stainless
1740
232561434
Elastic Stop Nut M6
1750
250200086
Шайба
2900
705008421
Side Protector Plate
2950
293150104
Pop Rivet 3/16
3000
705007055
Middle Protector Plate
3010
705007056
Rear Protector Plate
3020
705009447
Skid Plate
3030
705007227
Rear Protector Plate
3040
250000957
Extruded Panel Nut M6
3050
705007171
Крышка крыльчатки
3060
210262050
Washer Head Hexagonal Screw
3072
250000720
Torx Screw K50 X 16
3075
250200025
Washer M5
3620
291001932
Подушка изолирующая
3860
705007038
RH Lateral Skid Plate
3870
250200097
Шайба
3880
210262050
Washer Head Hexagonal Screw
3890
293150104
Pop Rivet 3/16
4000
705008450
Black, Cage Cover Kit
4000a
705008452
Black, LH Top Center Cage Cover
4000b
705008453
Black, RH Top Center Cage Cover
4000c
705005626
хомут
4000d
207662054
Hex. Flanged Screw M6 X 20
4000e
250000957
Extruded Panel Nut M6
4000f
234062670
Flat Washer, Stainless
4000g
233261494
Hex. Elastic Flanged Nut M6
4100
250100031
Push Nut
