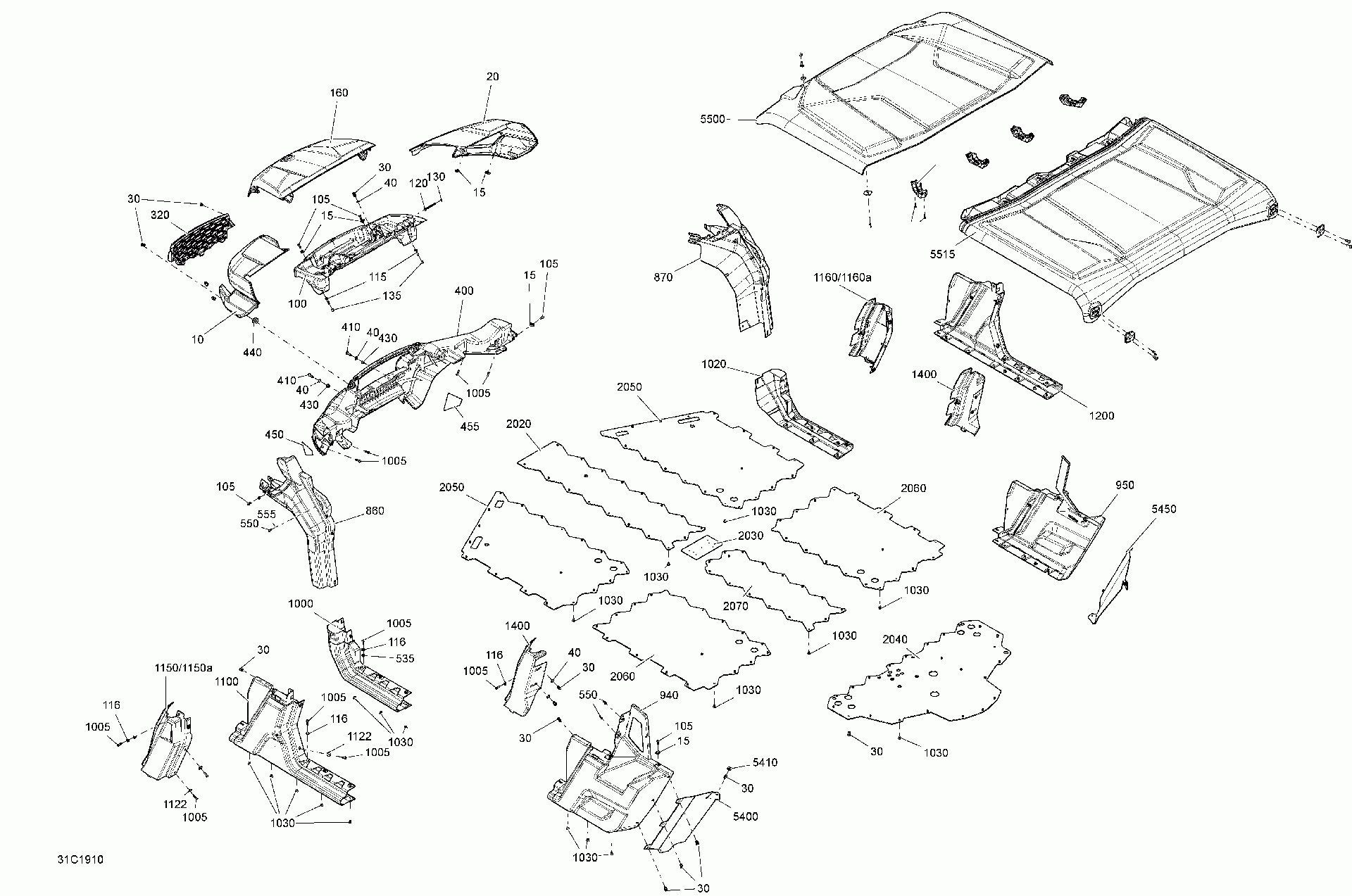

09- body - squadron green Оригинальные запчасти для мотовездеходов UTV Cam-am 004 - Defender MAX HD8

Extruded Panel Nut M6

705012591

Squadron Green, Front RH Fender

Extruded Panel Nut M6

Tuflok Plastic Rivet

Шайба

100

705011391

Service Center

105

Torx Screw M6 X 20

110

Extruded Panel Nut M6

115

210263050

Flanged Hex. Screw M6 X 30

116

Flat Washer, Stainless

120

207667554

Screw Hex Flange M6 X 75

130

732610072

Push Nut

135

293900125

Втулка

160

705012592

Squadron Green, Removable Hood

320

705009364

Grid Front Fascia

330

Tuflok Plastic Rivet

400

705011392

Front Facia

410

250000886

Torx Screw M8 X 30

420

Шайба

430

233281414

Hex. Flanged Elastic Nut M8 X 1.25

440

705010718

Уплотнитель резиновый

450

704905072

LH Front Reflector

455

704905073

RH Front Reflector

510

Torx Screw M6 X 20

520

Extruded Panel Nut M6

525

Torx Screw M6 X 20

530

Flat Washer, Stainless

550

250000720

Torx Screw K50 X 16

555

234051670

Flat Washer M5

860

705008152

LH Front Lateral Panel

870

705008153

RH Front Lateral Panel

935

250000720

Torx Screw K50 X 16

940

705012704

Rear LH Side Panel

941

414916600

Black Nylon Cap

945

Tuflok Plastic Rivet

950

705012705

RH Rear Side Panel

955

Tuflok Plastic Rivet

960

Torx Screw M6 X 20

970

Extruded Panel Nut M6

975

Tuflok Plastic Rivet

1000

705008699

LH Central Lateral Panel

1005

Torx Screw M6 X 25

1006

Flat Washer, Stainless

1020

705008700

RH Central Lateral Panel

1025

Torx Screw M6 X 25

1026

Flat Washer, Stainless

1030

293150108

Pop Rivet 3/16?

1035

293150108

Pop Rivet 3/16?

1100

705013112

LH Middle Side Panel

1105

Torx Screw M6 X 25

1115

Tuflok Plastic Rivet

1120

Torx Screw M6 X 25

1122

Flat Washer M6.6 X 22

1125

Flat Washer, Stainless

1150

705011955

LH Middle Cage Cover

1150a

705010601

LH Middle Cage Cover

1155

Flat Washer M6.6 X 22

1156

Torx Screw M6 X 25

1160

705011957

Middle RH Cage Cover

1160a

705010602

RH Middle Cage Cover

1165

Flat Washer M6.6 X 22

1166

Torx Screw M6 X 25

1167

250100199

Вставка

1200

705013113

RH Middle Side Panel

1205

Torx Screw M6 X 25

1215

Tuflok Plastic Rivet

1220

Torx Screw M6 X 25

1222

Flat Washer M6.6 X 22

1225

Flat Washer, Stainless

1300

715003564

LH Rear Cage Cover Kit

1330

Tuflok Plastic Rivet

1335

Шайба

1400

715003565

RH Rear Cage Cover Kit

1430

Tuflok Plastic Rivet

1435

Шайба

1880

Tuflok Plastic Rivet

2020

705009151

Central Skid Plate

2025

Pop Rivet 3/16

2030

705010884

Connection Plate

2040

705011292

Rear Skid Plate

2045

Pop Rivet 3/16

2050

705010422

Lateral Skid Plate

2055

Pop Rivet 3/16

2060

705010587

Rear Side Skid Plate

2065

Pop Rivet 3/16

2070

705010588

Rear Central Skid Plate

2075

Pop Rivet 3/16

2100

Tuflok Plastic Rivet

5400

705010426

LH Rear Deflector

5410

292001663

Flat Washer 8 mm, Nylon

5450

705010427

RH Rear Deflector

5460

292001663

Flat Washer 8 mm, Nylon

5500

705800066

Front Roof

5515

705800067

Rear Roof

5520a

293250393

Extrusion

6010

232081414

Hex. Nut M8

6015

234082410

Flat Washer 8 mm

6020

250000874

Torx Truss M8 X 25

6025

250000760

Torx Screw Truss Head K50X20 T20

6030

Flat Washer M6.6 X 22

6035

250000874

Torx Truss M8 X 25

6040

705800131

Roof Anchor

6055

705800058

Roof Cap

6060

Torx Screw M6 X 25

6065

Torx Screw M6 X 25

6070

Torx Screw M6 X 25

6075

Flat Washer, Stainless

6080

Torx Screw M6 X 25

6085
