Cam-am 004 - Maverick Sport 1000R - XMR - North America

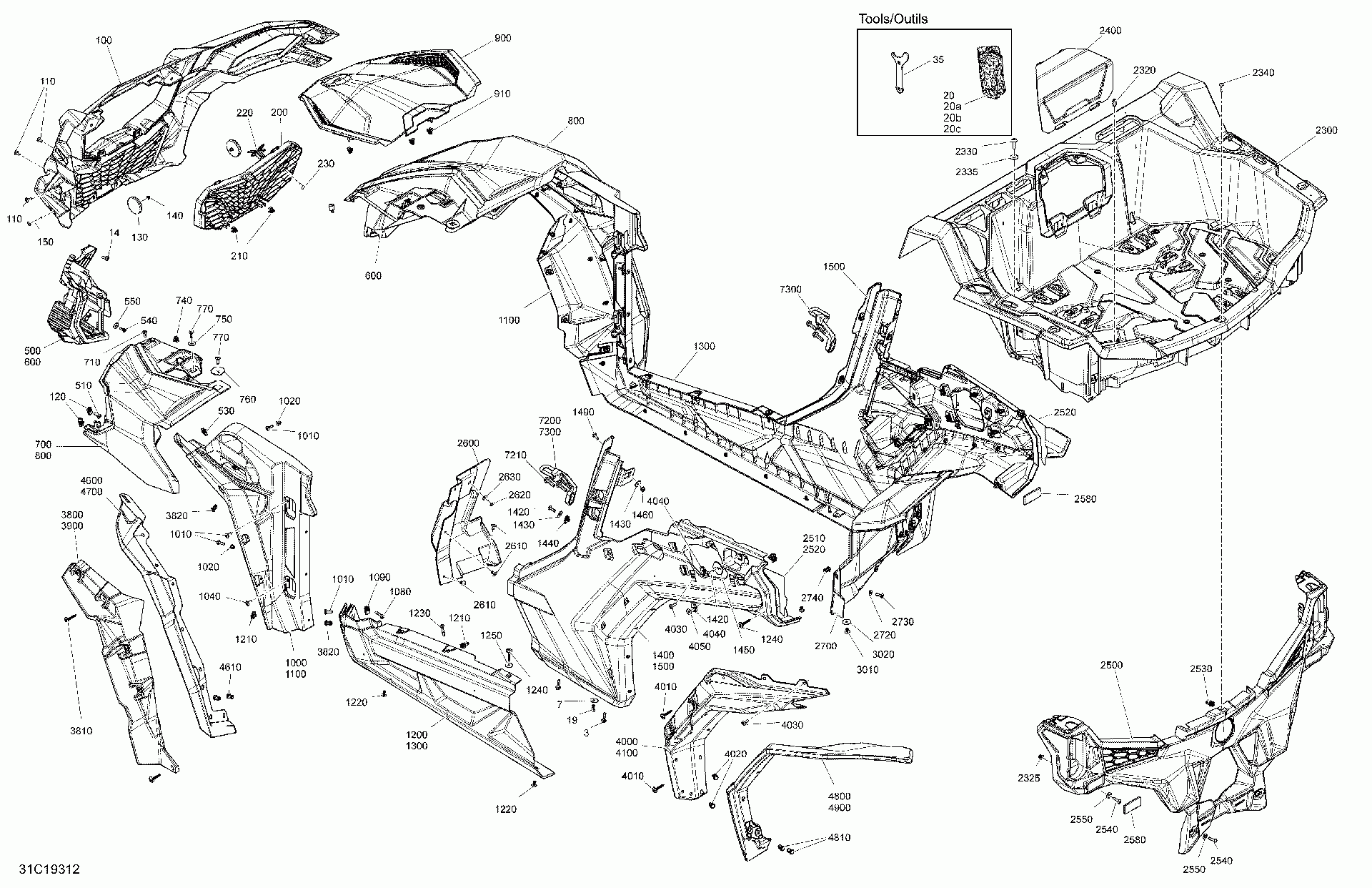

09- body maverick sport - package xmr

#

oem код

название

цена

20

Комплект инструментов

Комплект инструментов

20a

Socket Wrench 14/16MM

Socket Wrench 14/16MM

20b

Driven Open Tool

Driven Open Tool

20c

Torx Key T30

Torx Key T30

35

Adjustment Wrench

Adjustment Wrench

100

Front Fascia

Front Fascia

110

Torx Truss Screw M6 X 16

Torx Truss Screw M6 X 16

120

Extruded Panel Nut M6

Extruded Panel Nut M6

130

Amber Reflector

Amber Reflector

140

Elastic Flanged Nut M5

Elastic Flanged Nut M5

150

Torx Screw M6 X 45

Torx Screw M6 X 45

200

Fascia Removable Grid

Fascia Removable Grid

210

Зажим

Зажим

220

Grill Logo

Grill Logo

230

Screw M4 X 16

Screw M4 X 16

500

LH Headlamp Structure

LH Headlamp Structure

510

Torx Screw M6 X 20

Torx Screw M6 X 20

530

Extruded Panel Nut M6

Extruded Panel Nut M6

540

Torx Screw K50 X 16

Torx Screw K50 X 16

550

Flat Washer, Stainless

Flat Washer, Stainless

600

RH Headlamp Structure

RH Headlamp Structure

710

Torx Truss Screw M6 X 16

Torx Truss Screw M6 X 16

740

Зажим

Зажим

750

Flat Washer M6.6 X 22

Flat Washer M6.6 X 22

760

Support Plate

Support Plate

770

Torx Screw M6 X 20

Torx Screw M6 X 20

900

Removable Hood

Removable Hood

910

Зажим

Зажим

1000

LH Front Mudguard

LH Front Mudguard

1010

Torx Screw M6 X 20

Torx Screw M6 X 20

1020

Hex. Elastic Flanged Nut M6

Hex. Elastic Flanged Nut M6

1040

Torx Truss Screw M6 X 16

Torx Truss Screw M6 X 16

1080

Torx-truss Hex. Screw M6X35, Nylon Prot

Torx-truss Hex. Screw M6X35, Nylon Prot

1090

Extruded Panel Nut M6

Extruded Panel Nut M6

1100

RH Front Mudguard

RH Front Mudguard

1200

LH Rocker Panel

LH Rocker Panel

1210

Extruded Panel Nut M6

Extruded Panel Nut M6

1220

Pop Rivet 3/16?

Pop Rivet 3/16?

1230

Torx-truss Hex. Screw M6X35, Nylon Prot

Torx-truss Hex. Screw M6X35, Nylon Prot

1240

Torx-Screw Truss Head PT.K50 X 40

Torx-Screw Truss Head PT.K50 X 40

1250

Flat Washer M6.6 X 22

Flat Washer M6.6 X 22

1300

RH Rocker Panel

RH Rocker Panel

1400

LH Rear Pannel

LH Rear Pannel

1420

Torx Screw M6 X 20

Torx Screw M6 X 20

1430

Flat Washer M6.6 X 22

Flat Washer M6.6 X 22

1440

Extruded Panel Nut M6

Extruded Panel Nut M6

1450

Support Plate

Support Plate

1460

Hex. Elastic Flange Nut M6

Hex. Elastic Flange Nut M6

1490

Torx Screw M6 X 20

Torx Screw M6 X 20

1500

RH Rear Pannel

RH Rear Pannel

2300

Rear Box

Rear Box

2320

Hex. Coupling Nut M6

Hex. Coupling Nut M6

2325

Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

2330

Hex Torx Truss M8 X30

Hex Torx Truss M8 X30

2335

Flat Washer, Stainless

Flat Washer, Stainless

2340

Torx Truss Screw M6 X 25

Torx Truss Screw M6 X 25

2400

Liquid Acces Cover

Liquid Acces Cover

2500

Rear Fascia

Rear Fascia

2510

LH Rear Reflector

LH Rear Reflector

2520

RH Rear Reflector

RH Rear Reflector

2530

Extruded Panel Nut M6

Extruded Panel Nut M6

2540

Torx Truss Screw M6 X 25

Torx Truss Screw M6 X 25

2550

Flat Washer, Stainless

Flat Washer, Stainless

2580

Red Reflector

Red Reflector

2610

Pop Rivet 3/16

Pop Rivet 3/16

2620

Torx Screw K50 X 16

Torx Screw K50 X 16

2630

Washer M5

Washer M5

2700

RH Rear Inner Fender

RH Rear Inner Fender

2720

Flat Washer, Stainless

Flat Washer, Stainless

2730

Torx Screw M6 X 20

Torx Screw M6 X 20

2740

Tuflok Plastic Rivet

Tuflok Plastic Rivet

3010

Pop Rivet 3/16?

Pop Rivet 3/16?

3020

Шайба

Шайба

3800

LH FRONT 60

LH FRONT 60

3810

Torx-Screw Truss Head PT.K50 X 40

Torx-Screw Truss Head PT.K50 X 40

3820

Tuflok Plastic Rivet

Tuflok Plastic Rivet

3900

RH FRONT 60

RH FRONT 60

4000

LH Rear Mud Guard

LH Rear Mud Guard

4010

Torx-Screw Truss Head PT.K50 X 40

Torx-Screw Truss Head PT.K50 X 40

4020

Tuflok Plastic Rivet

Tuflok Plastic Rivet

4030

Torx Screw M6 X 20

Torx Screw M6 X 20

4050

Flat Washer, Stainless

Flat Washer, Stainless

4100

RH Rear 60

RH Rear 60

4600

LH Front Fender Extender

LH Front Fender Extender

4610

Tuflok Plastic Rivet

Tuflok Plastic Rivet

4700

RH Front Fender Extender

RH Front Fender Extender

4800

LH Rear Fender Extender

LH Rear Fender Extender

4810

Tuflok Plastic Rivet

Tuflok Plastic Rivet

4900

RH Rear Fender Extender

RH Rear Fender Extender

7200

LH Stricker Support

LH Stricker Support

7210

Hex. Flanged Screw M8 X 30, Scotch Grip

Hex. Flanged Screw M8 X 30, Scotch Grip

7300

RH Stricker Support

RH Stricker Support
