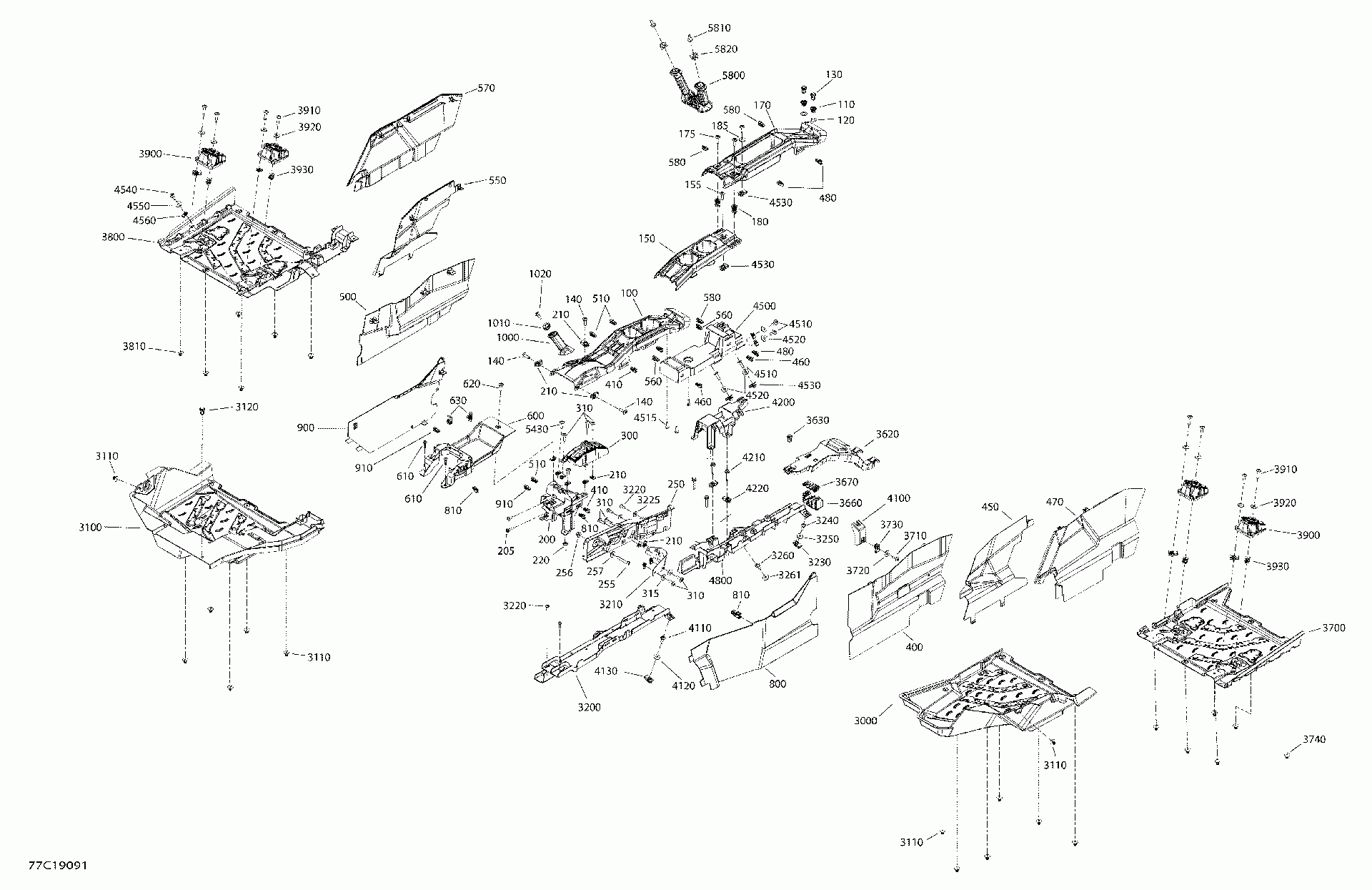

09- cab interior maverick max - north america - lower section Оригинальные запчасти для мотовездеходов UTV Cam-am 006 - Maverick MAX Turbo

Torx Screw M6 X 20

150

707900492

Middle Console

155

Torx Screw M6 X 20

170

707900568

Rear Console

175

Torx Screw M6 X 20

180

705010872

Вставка

185

Flat Washer, Stainless

200

707900459

Front Central Consol Support

205

250000720

Torx Screw K50 X 16

210

Extruded Panel Nut M6

220

Torx Screw M6 X 20

250

707900488

Shifter Gate Support

255

250000748

Torx Screw M6 X 45

256

233261466

Hex. Flanged Elastic Nut M6

257

Flat Washer, Stainless

300

707900644

Lever Indicator

310

Torx Screw M6 X 20

315

Flat Washer, Stainless

400

707900396

LH Lateral Dash Panel

410

Зажим

450

707900497

Middle LH Lateral Dash Panel

460

Зажим

470

707900571

Rear LH Lateral Dash Panel

480

Зажим

500

707900397

RH Lateral Dash Panel

510

Зажим

550

707900498

Middle RH Lateral Dash Panel

560

Зажим

570

707900572

Rear RH Lateral Dash Panel

580

Зажим

600

707900460

Front Top Console

610

250000760

Torx Screw Truss Head K50X20 T20

620

Torx Screw M6 X 20

630

Extruded Panel Nut M6

800

707900398

LH Lateral Console Panel

810

Зажим

900

707900399

RH Lateral Console Panel

910

Зажим

1000

707900011

Passenger Handle

1010

707900048

Connector Tube

1020

Torx Screw M6 X 20

3000

707900339

LH Front Floor

3100

707900340

RH Front Floor

3110

293150104

Pop Rivet 3/16

3120

293150230

Tuflok Plastic Rivet

3200

707900710

Support Hose Central

3210

707900478

Cable Support

3220

250000720

Torx Screw K50 X 16

3225

250200025

Washer M5

3230

Extruded Panel Nut M6

3240

Torx Screw M6 X 20

3250

Flat Washer, Stainless

3260

Torx Screw M6 X 20

3261

Flat Washer, Stainless

3620

707900651

Hose Support

3630

293150230

Tuflok Plastic Rivet

3660

707900699

Support Hose Rear

3670

707900729

Support Hose Rear

3700

707900495

Left Floor

3710

Torx Screw M6 X 20

3720

Flat Washer, Stainless

3730

Extruded Panel Nut M6

3740

293150104

Pop Rivet 3/16

3800

707900496

Rear Right Floor

3810

293150104

Pop Rivet 3/16

3900

707900595

Footrest Support

3910

250000807

Torx Screw M6 X 25

3920

Flat Washer, Stainless

3930

Extruded Panel Nut M6

4100

707900501

Central Consol Support

4110

250000807

Torx Screw M6 X 25

4120

Extruded Panel Nut M6

4130

Flat Washer, Stainless

4200

707900569

Rear Consol Support

4210

207663056

Hex Flanged Screw M6 X 1.0 X 30

4220

Extruded Panel Nut M6

4500

707900573

Consol Support

4510

Torx Screw M6 X 20

4515

250000720

Torx Screw K50 X 16

4520

Flat Washer, Stainless

4530

Extruded Panel Nut M6

4540

Torx Screw M6 X 20

4550

Flat Washer, Stainless

4560

Extruded Panel Nut M6

4800

707900711

Support Hose Central

5430

Torx Screw M6 X 20

5800

707900575

Passenger Handle

5810
